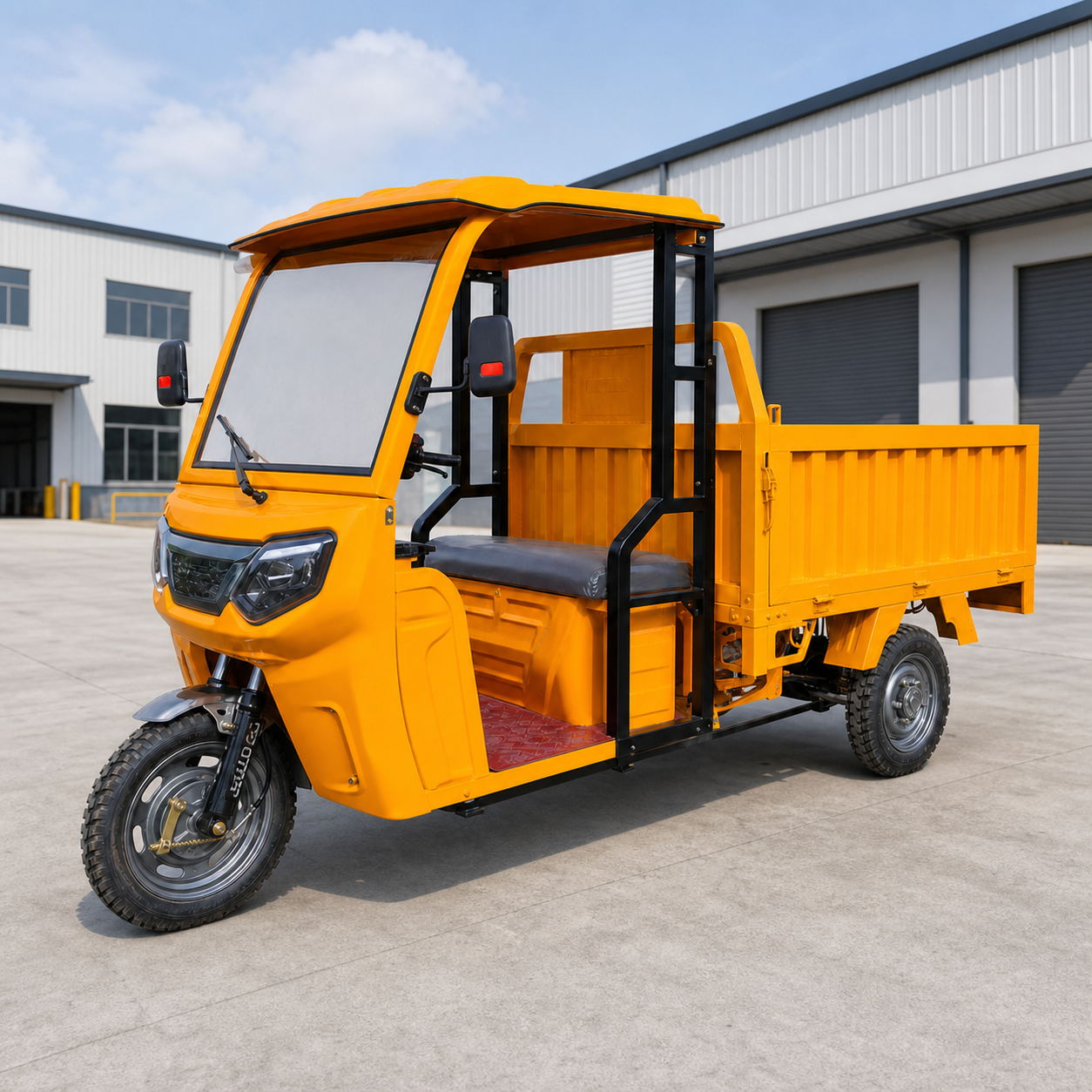

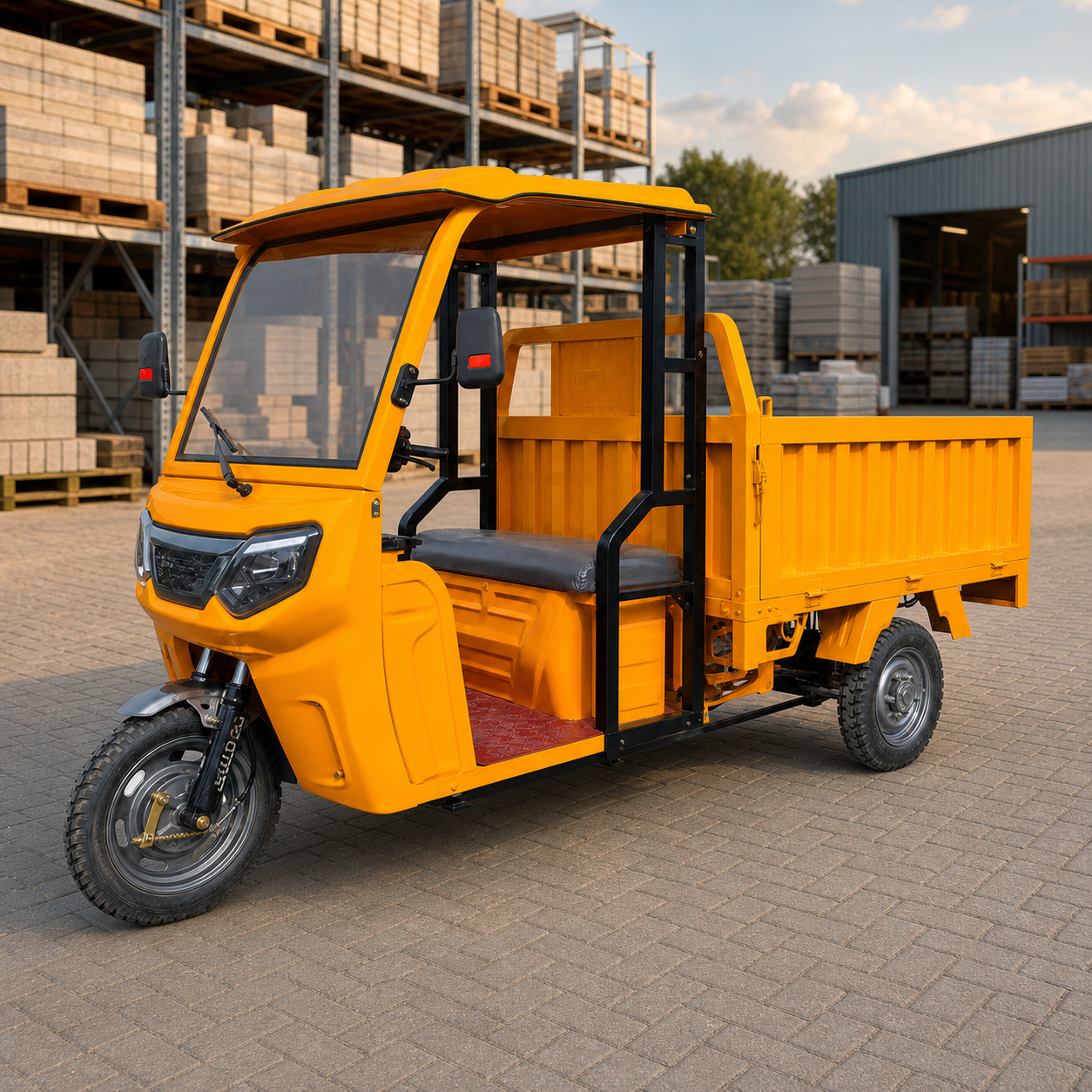

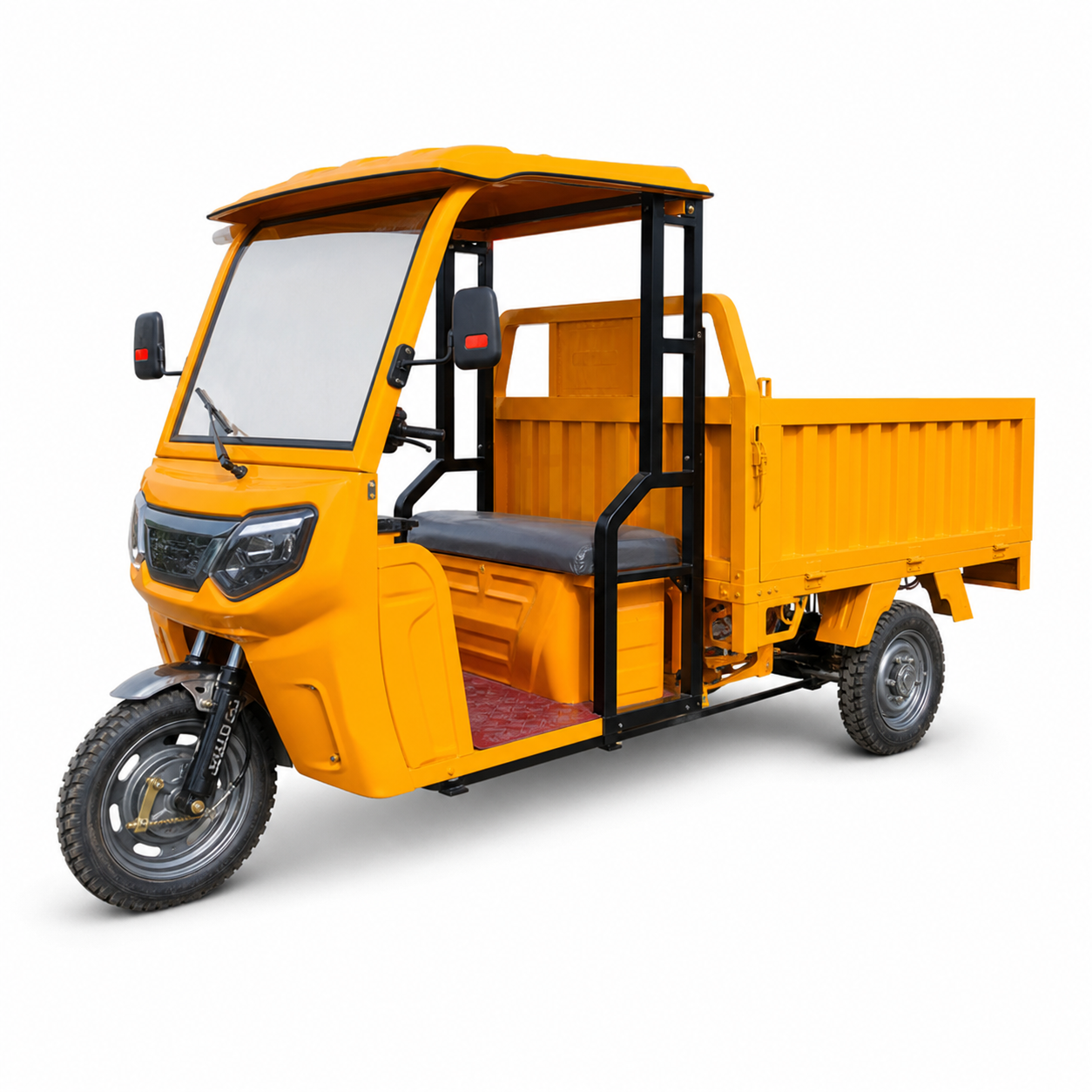

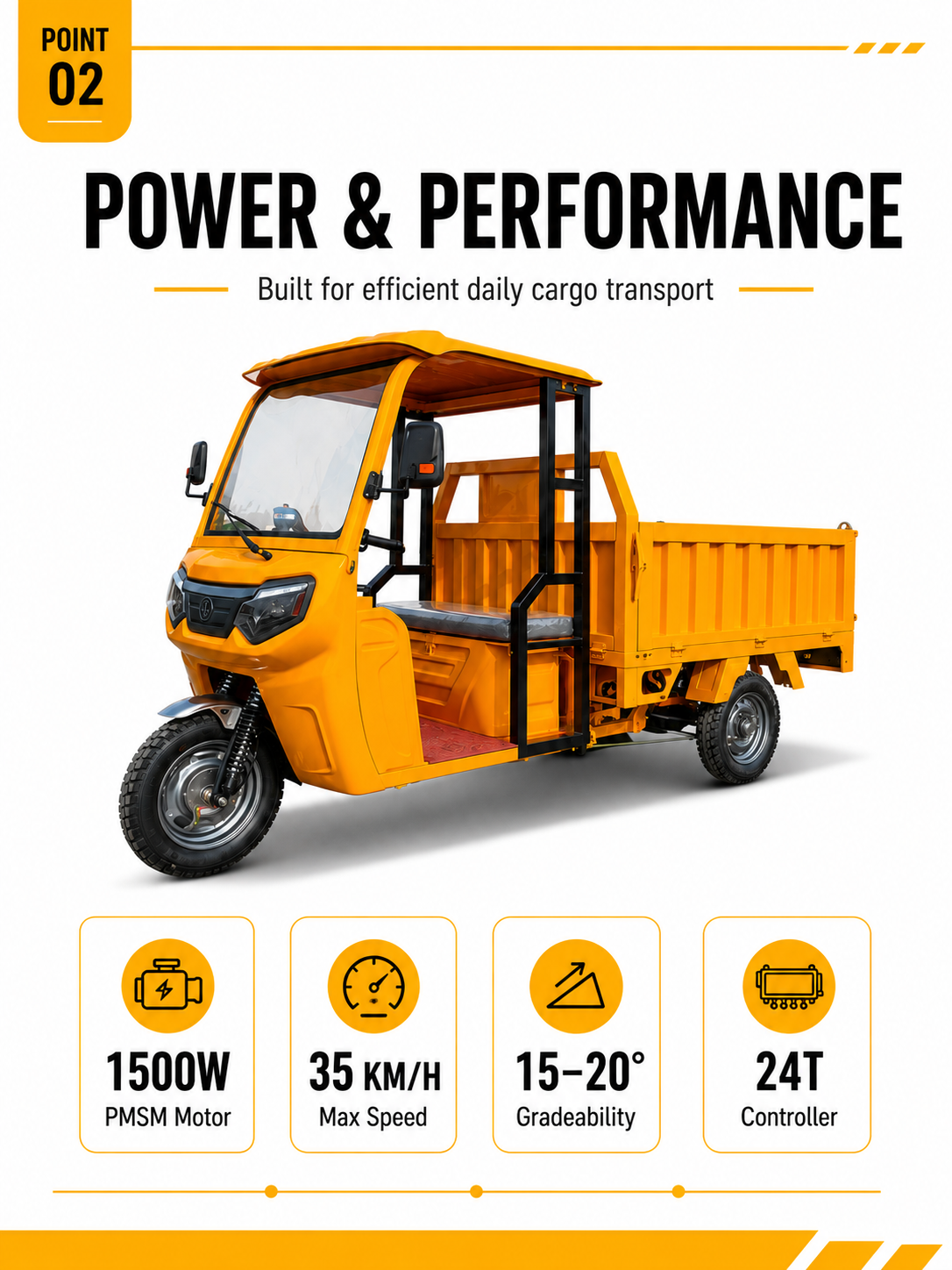

1.6M Simple-Canopy Electric Cargo Tricycle
1.6M Simple-Canopy Cargo Loader · 1500W · 48–60V

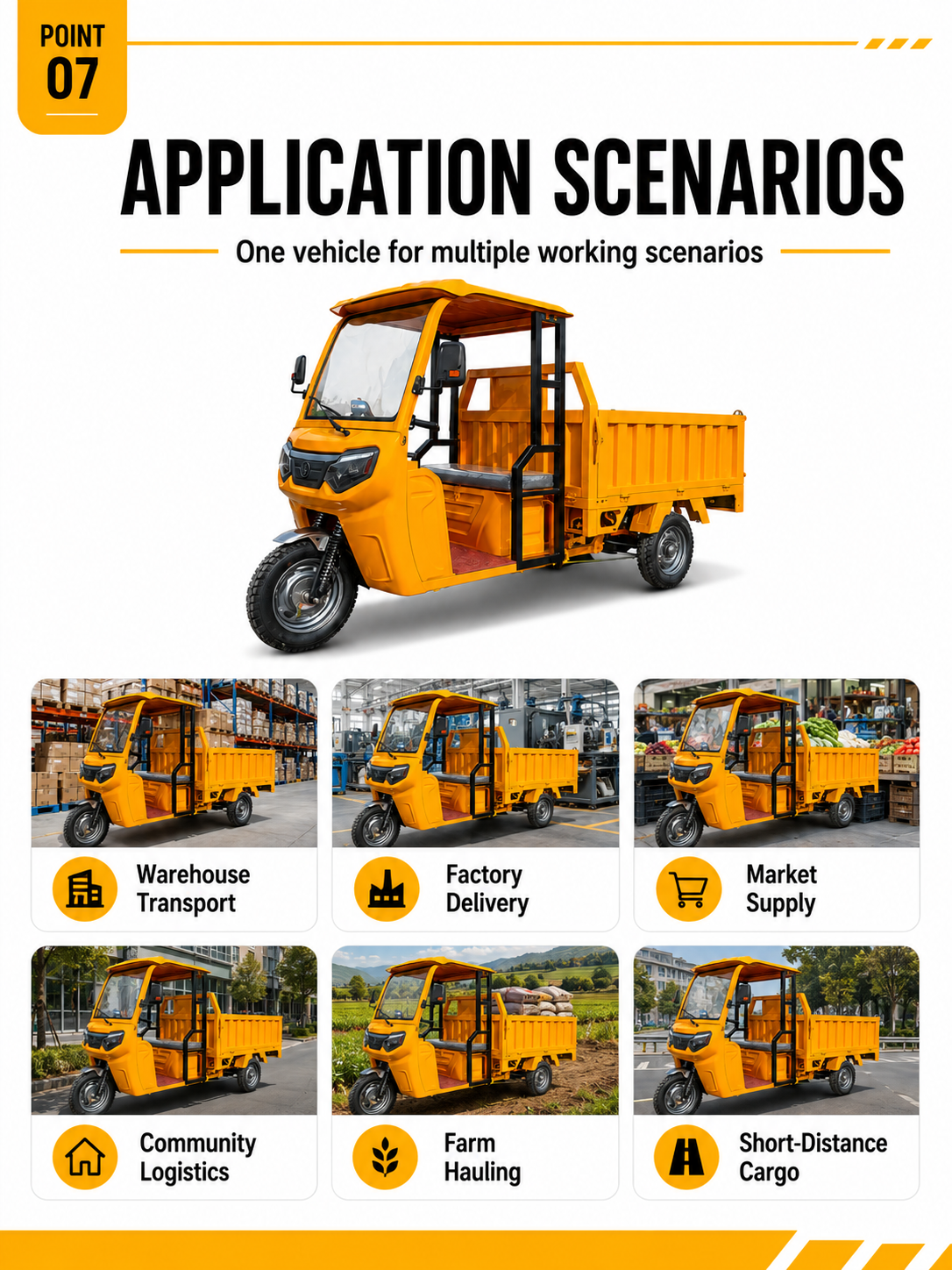

A compact 1.6 m cargo loader with a simple canopy, 1500W PMSM motor, and 500 kg payload for local delivery, farming, and warehouse use.

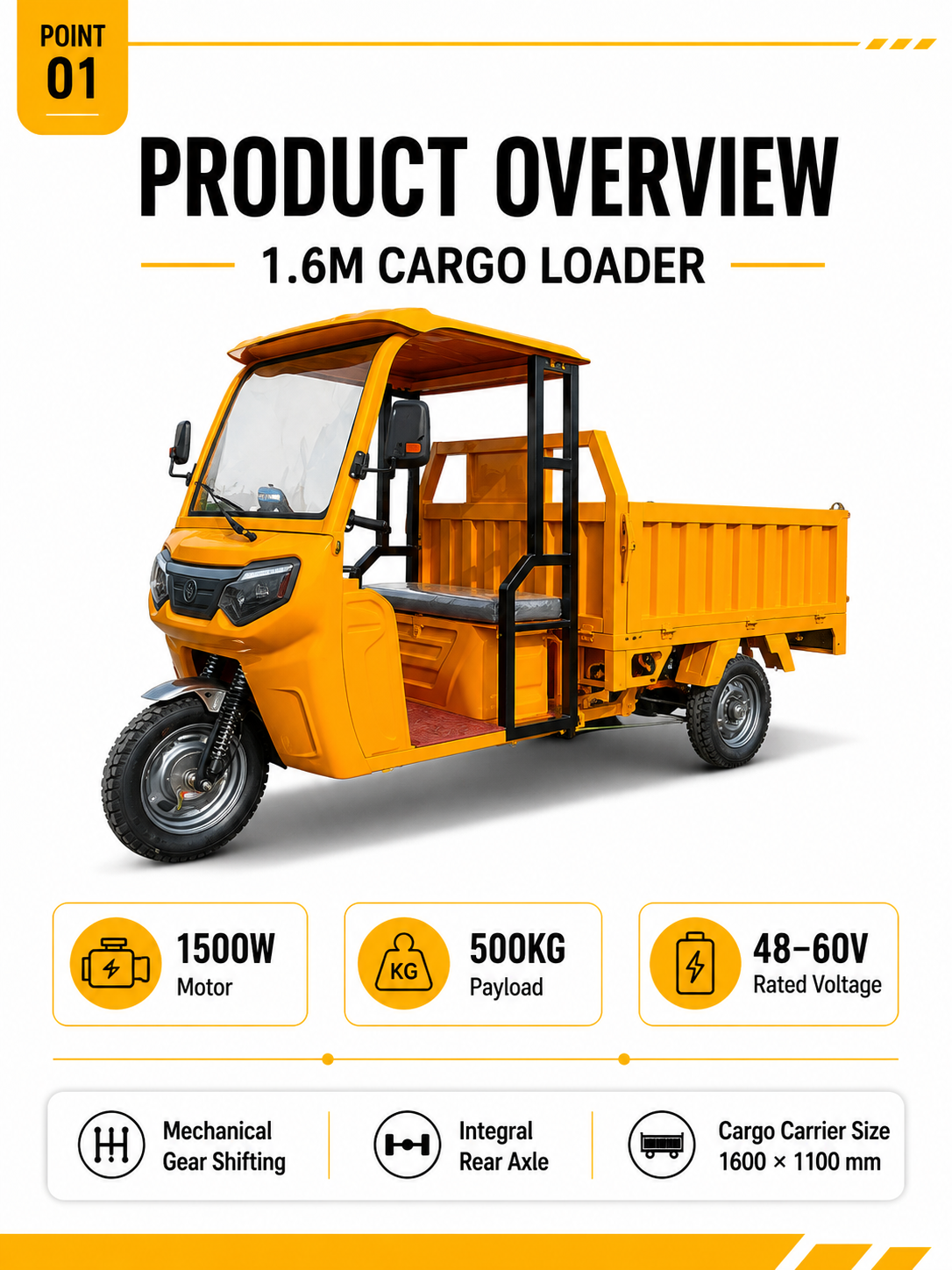

Product Overview
A compact 1.6 m cargo loader with a simple canopy, 1500W PMSM motor, and 500 kg payload for local delivery, farming, and warehouse use.
Key Features
- 1600 × 1100 mm open cargo bed
- Simple protective canopy
- Mechanical gear shifting
- Mechanical or optional oil drum brakes
- Lead-acid or lithium battery options
Technical Specifications
| Model | 1.6M Simple-Canopy Cargo Loader |
| Rated Voltage | 48–60V |
| Motor Power | 1500W |
| Maximum Speed | 35 km/h |
| Payload Capacity | 500 kg |
| Dimensions (L × W × H) | 3050 × 1200 × 1700 mm |
| Curb Weight | 310 kg (without battery) |

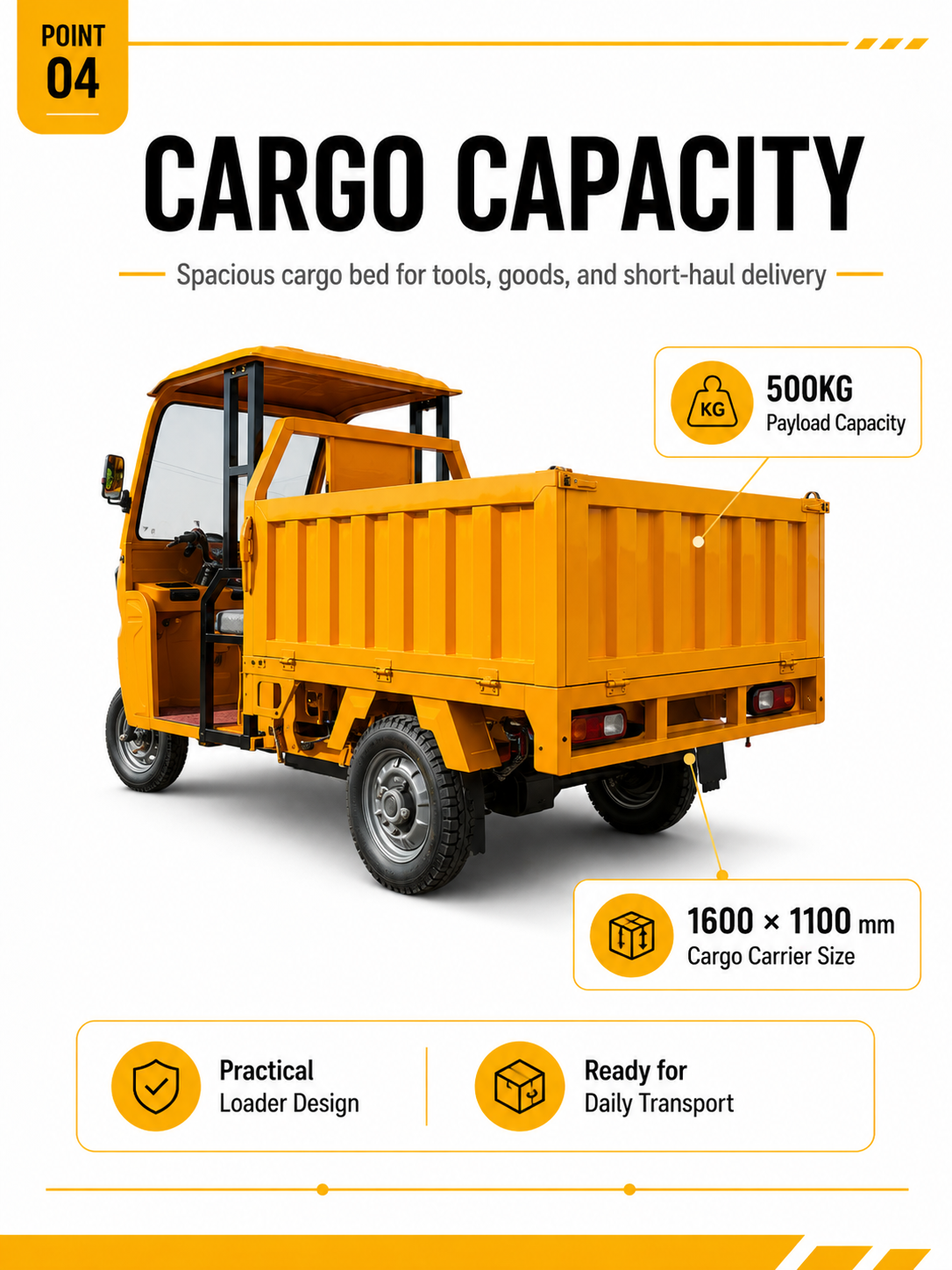

| Cargo Carrier Size | 1600 × 1100 mm |

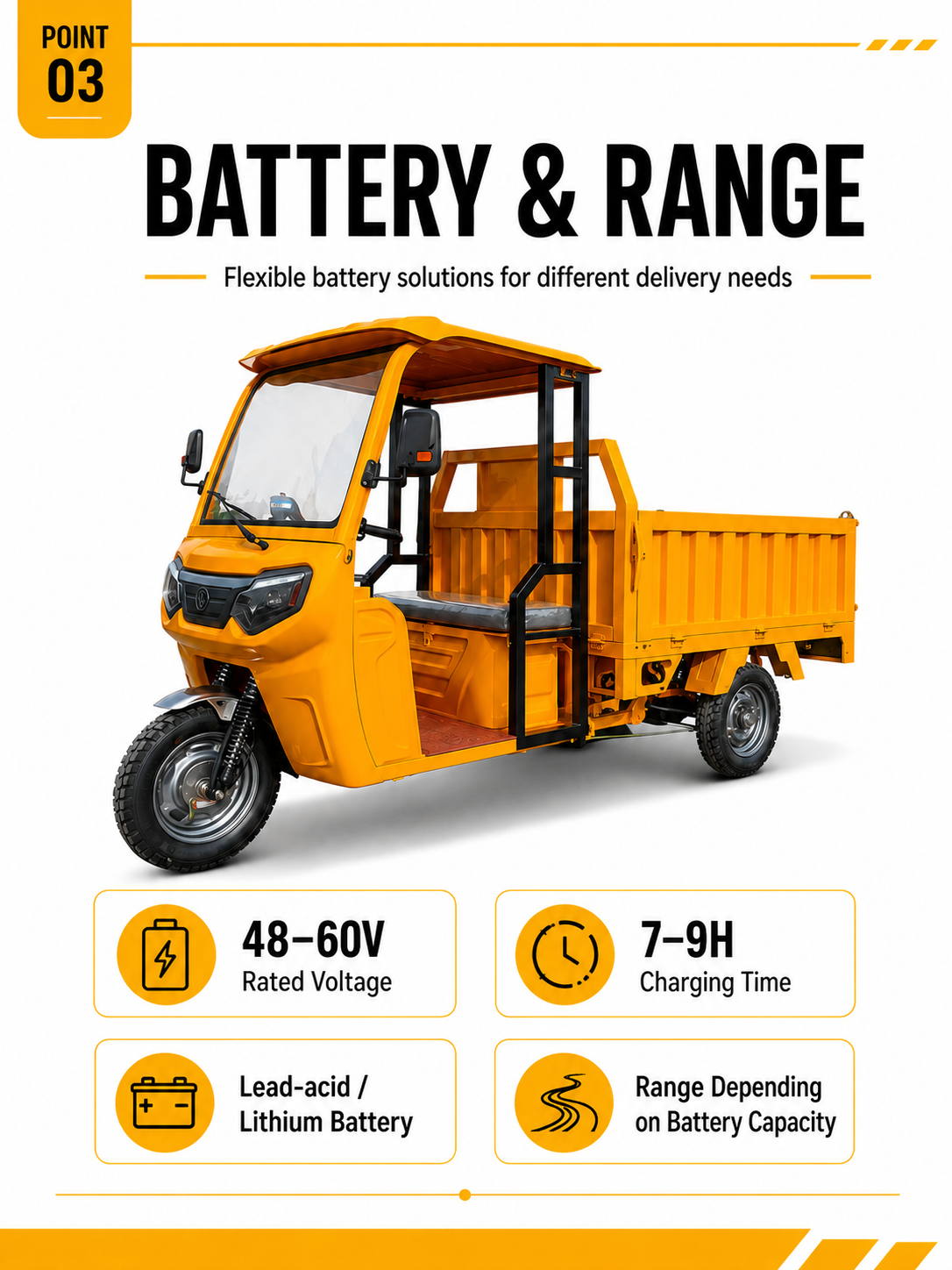

| Charging Time | 7–9 hours |
| Gradeability | 15–20° |
| Battery Type | Lead-acid / lithium (optional) |
| Motor Type | PMSM |
| Gear System | Mechanical gear shifting |
| Controller | 24T |

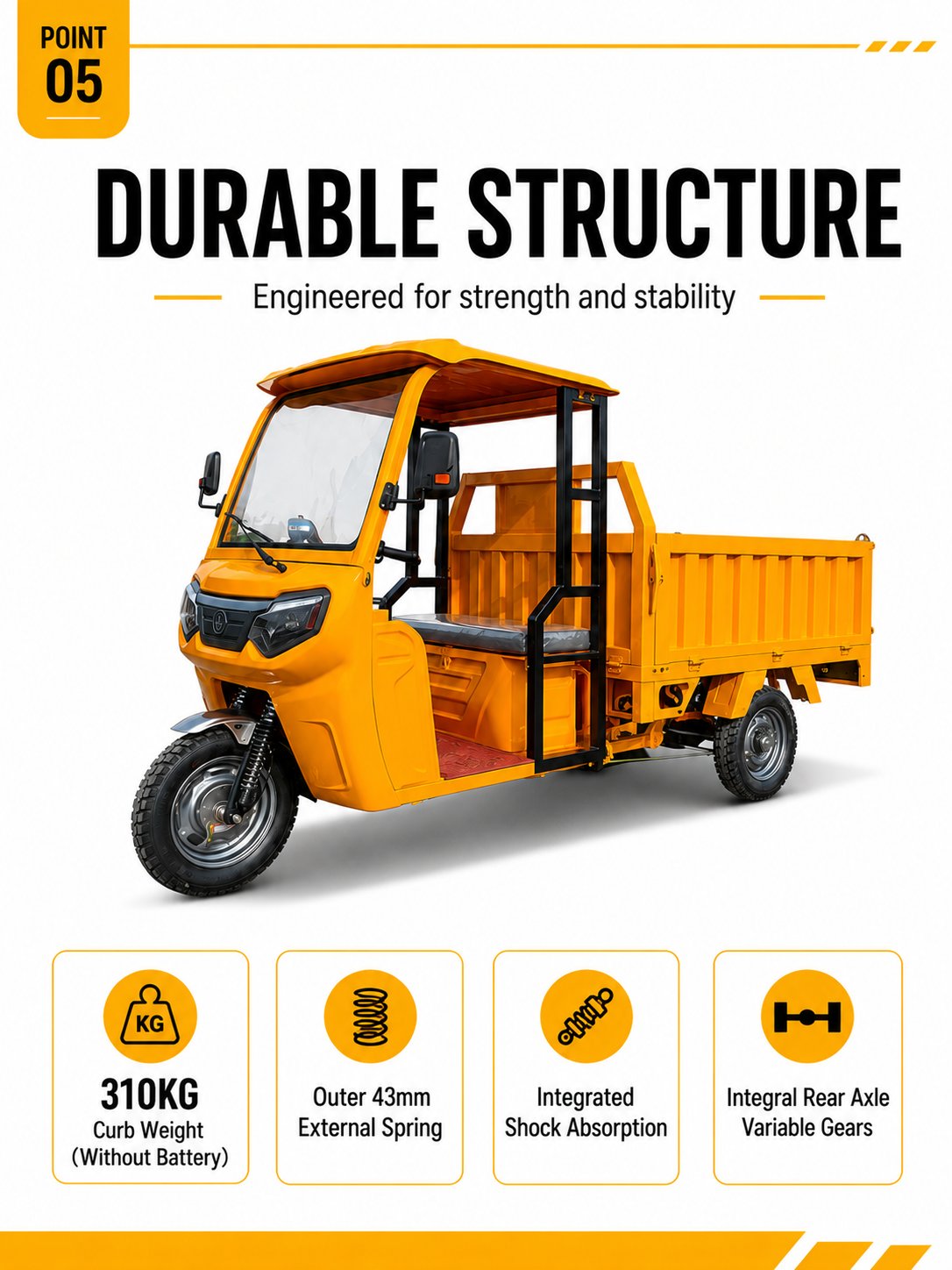

| Front Suspension | 43 mm outer tube with external spring and integrated shock absorption |
| Rear Axle | Integral rear axle with variable gears |

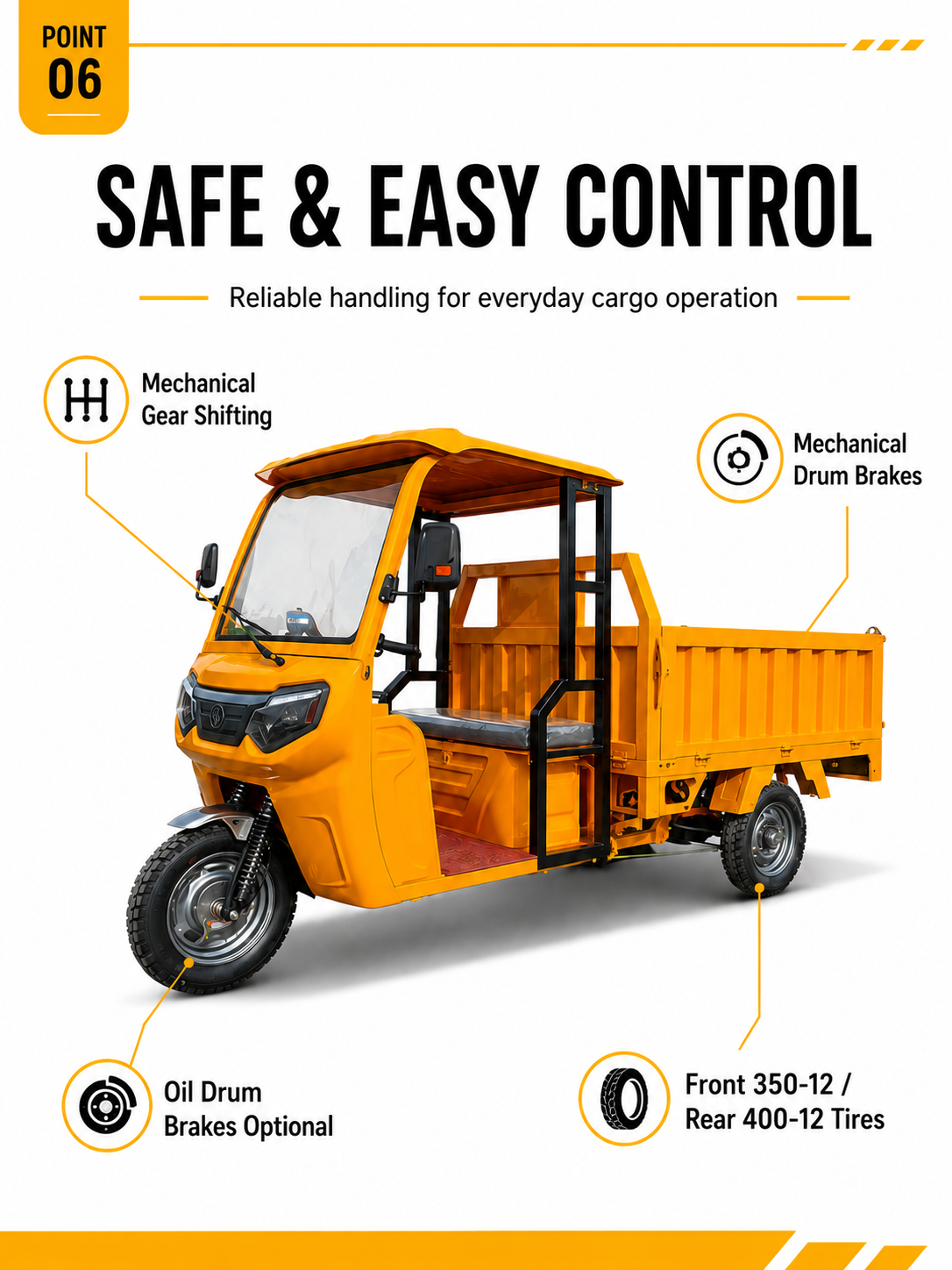

| Brakes | Mechanical drum brakes / oil drum brakes (optional) |
| Wheelbase | 2100 mm |
| Tire Size | Front 3.50-12 / rear 4.00-12 |
| Range | Depends on battery configuration |
Product Details
