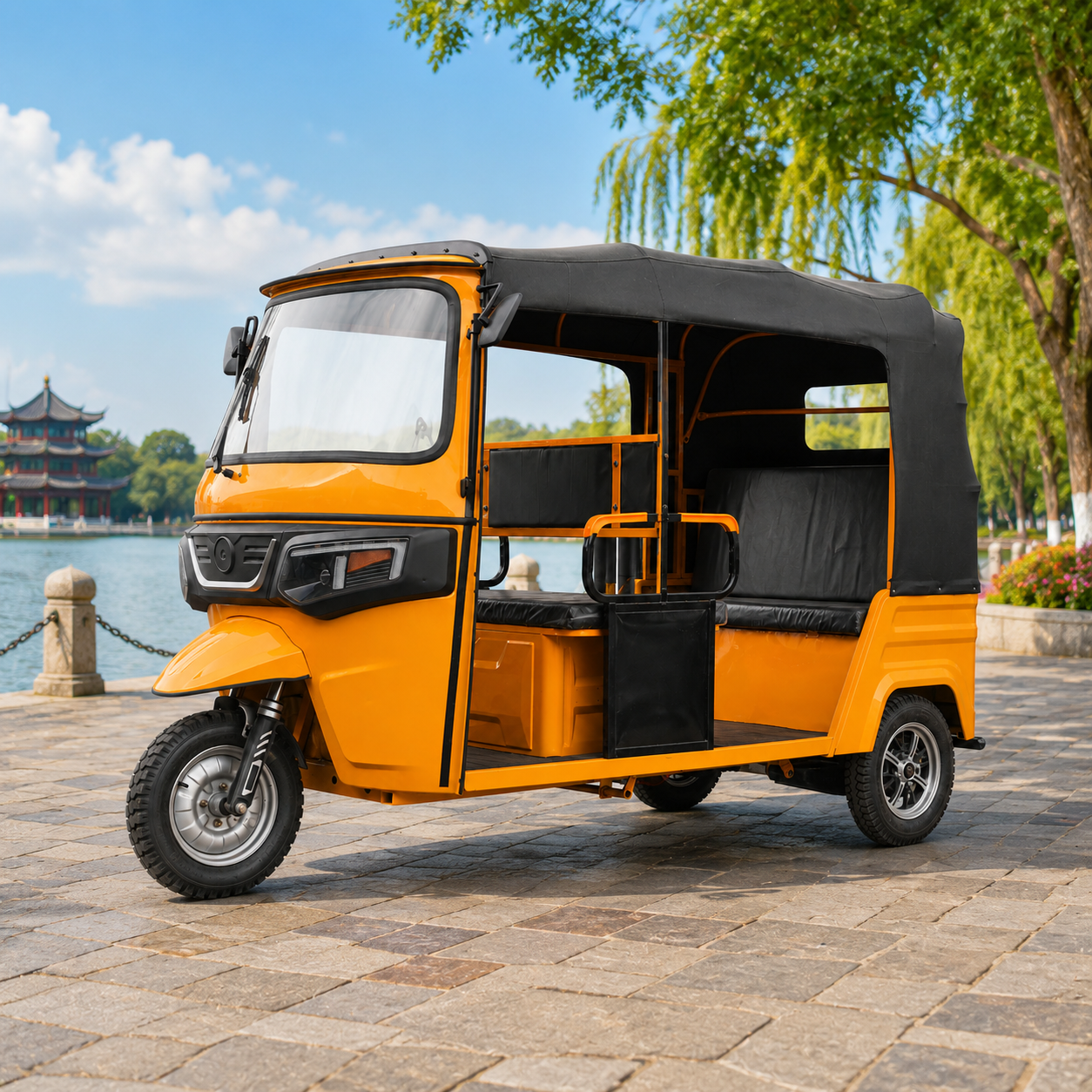

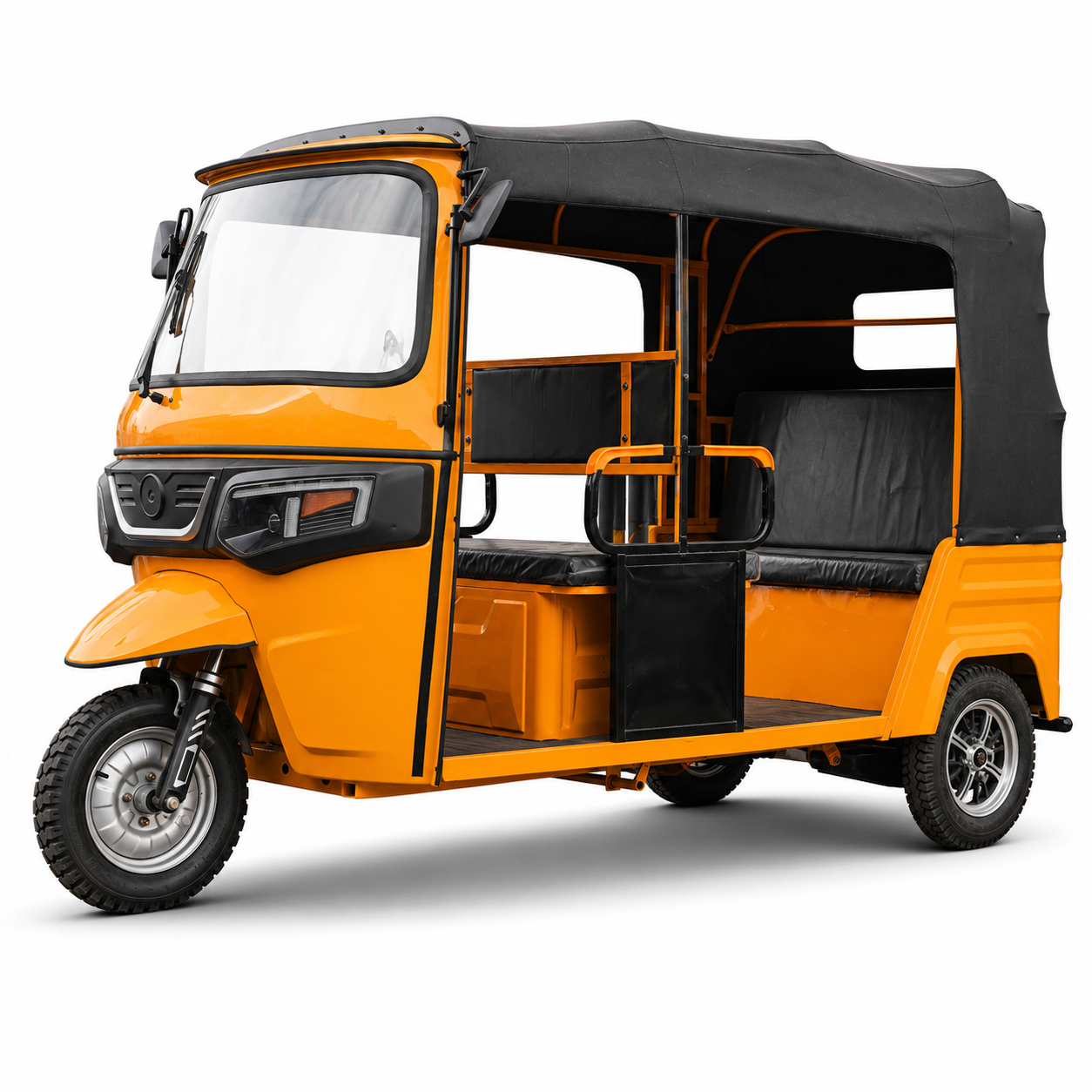

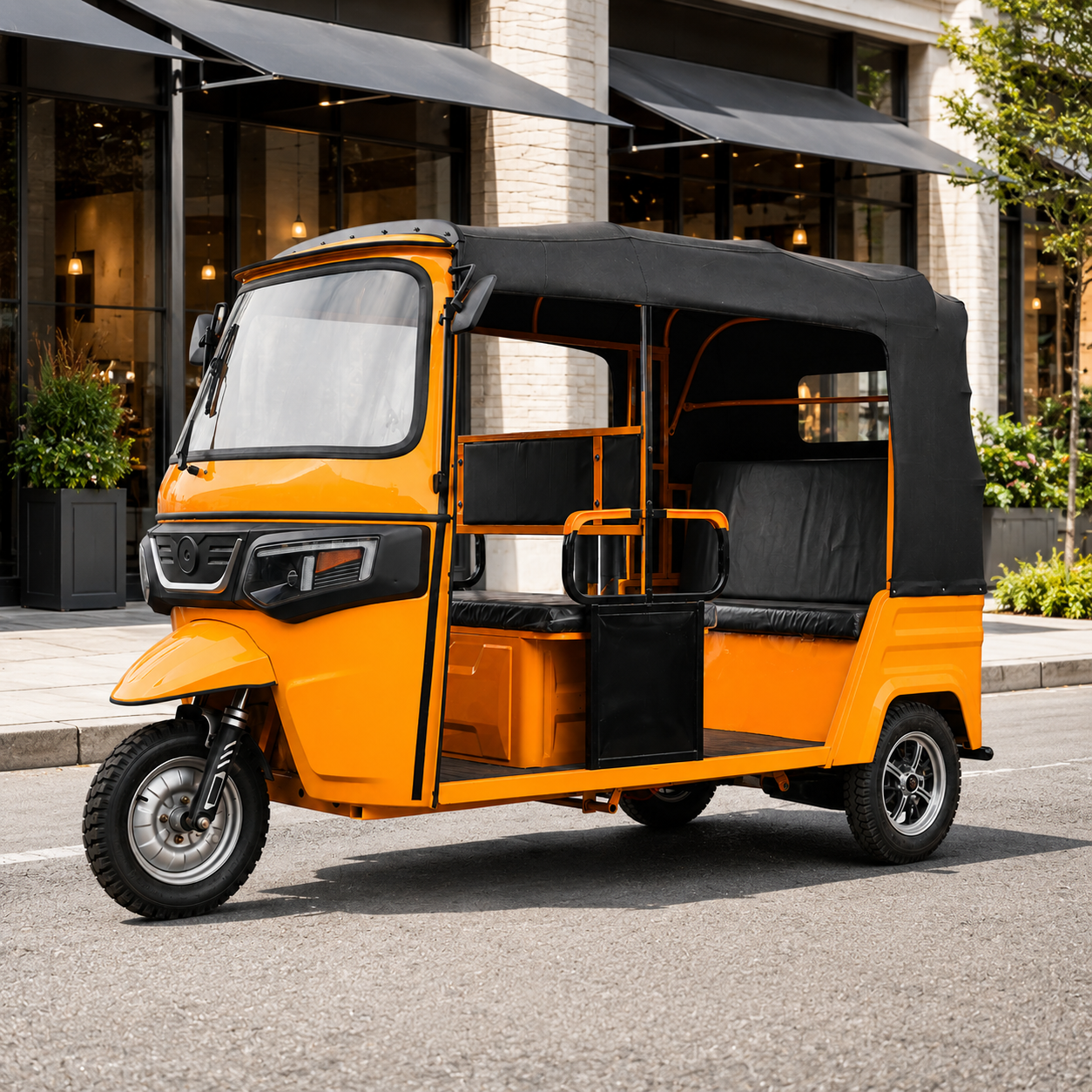

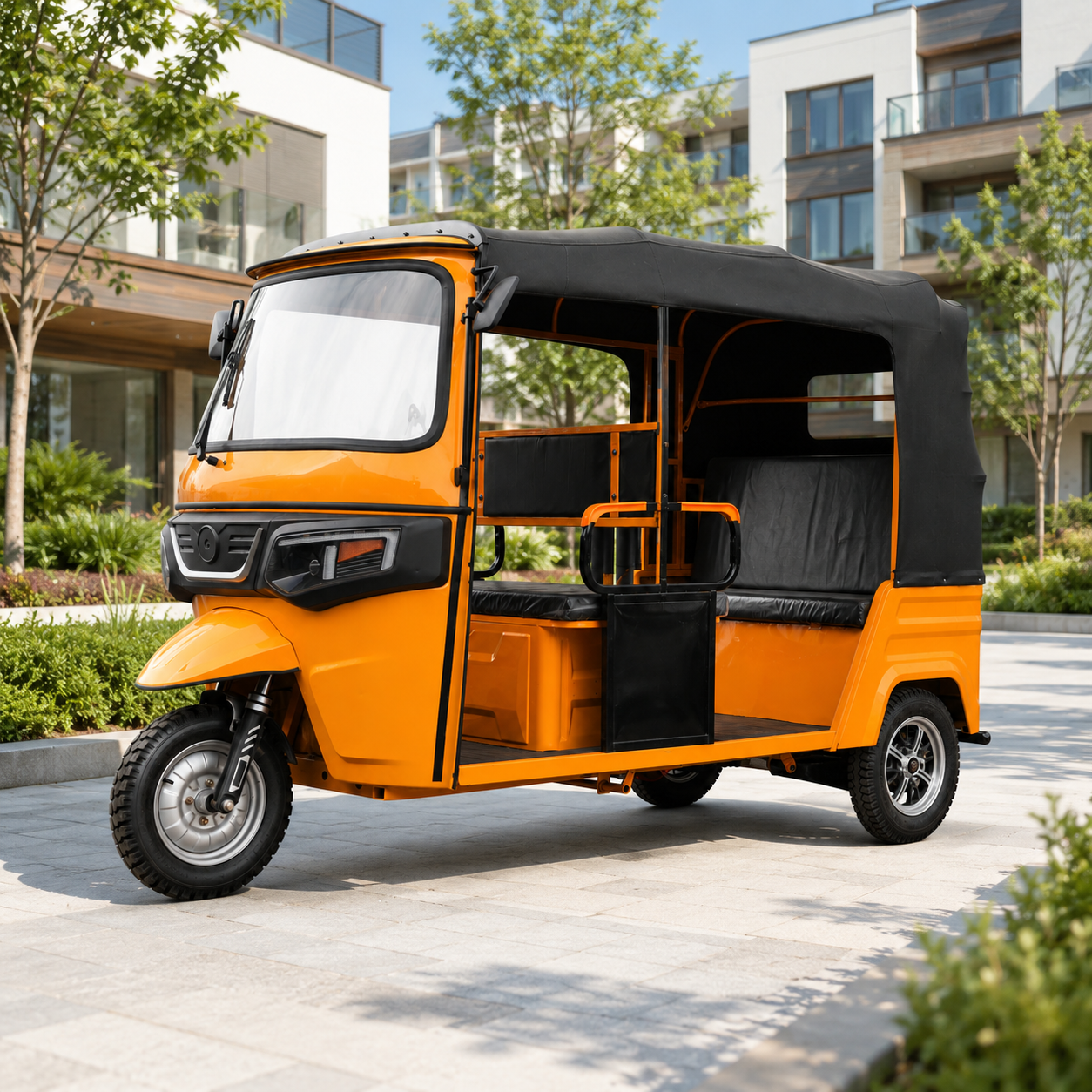

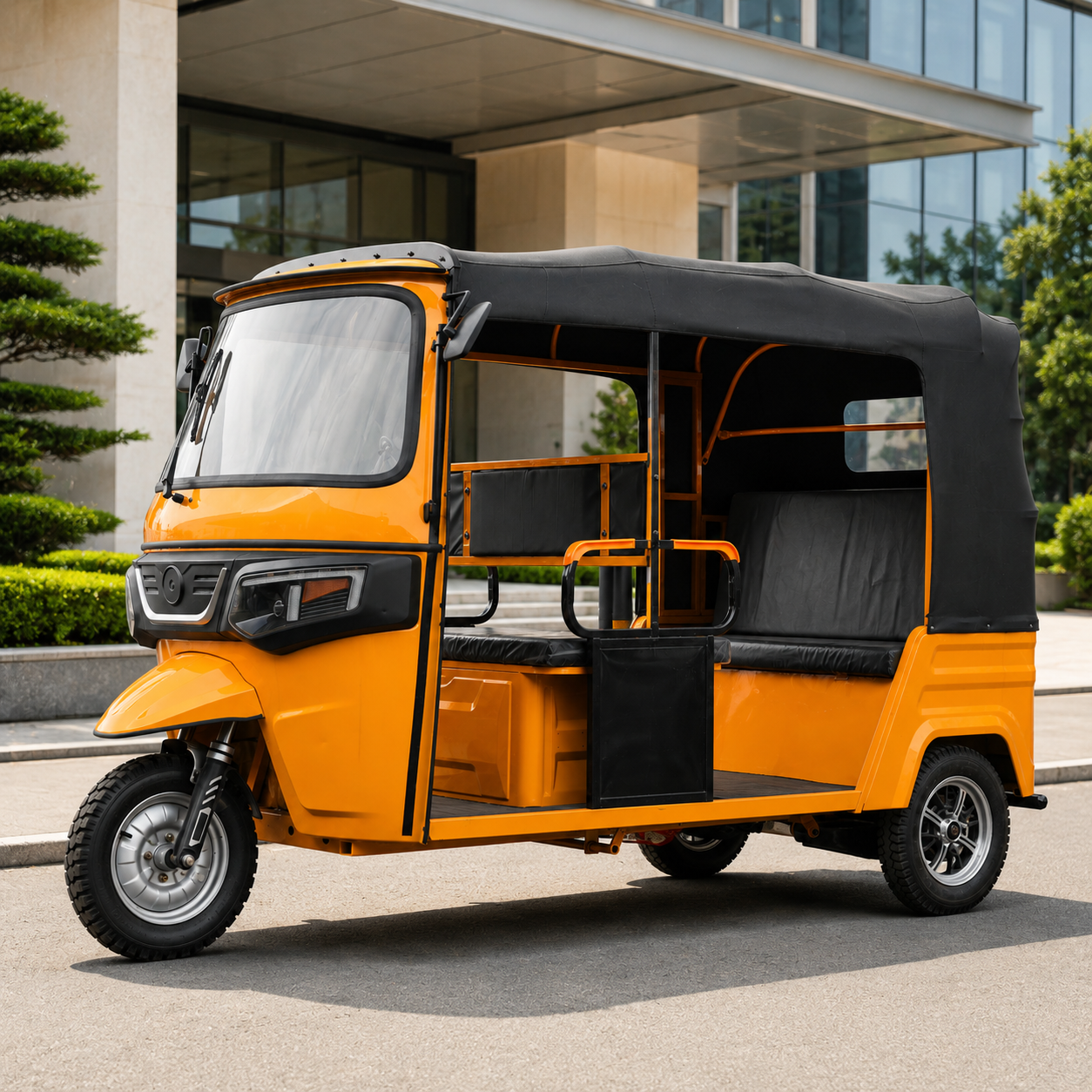

Deluxe Single-Row Electric Tuk Tuk 3+1

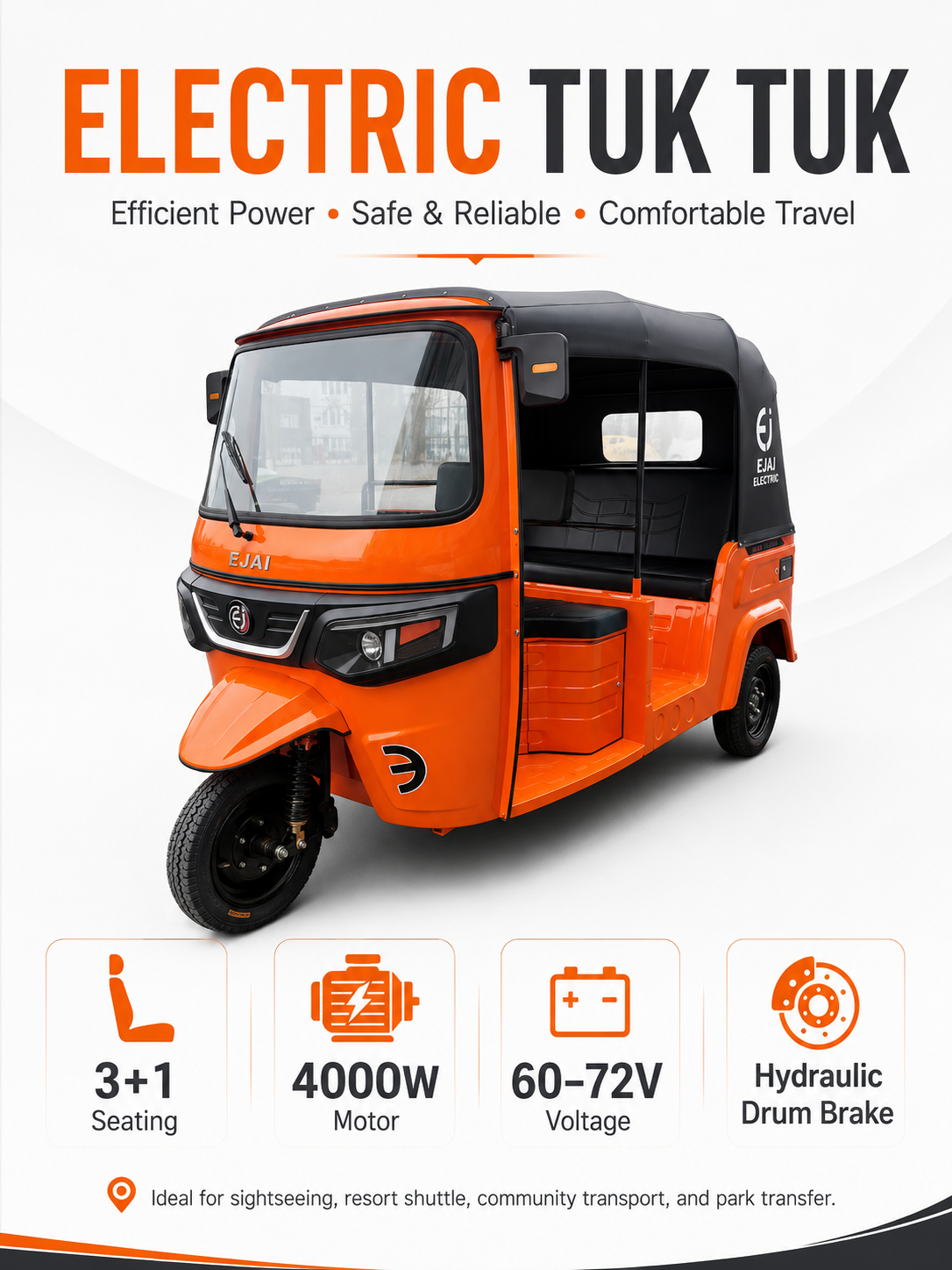

Single-Row Deluxe 3+1 · 4000W · 60–72V
A compact 3+1 electric passenger tuk tuk with a 4000W motor, hydraulic drum brakes, and independent suspension for urban, resort, and community transport.
Product Overview
A compact 3+1 electric passenger tuk tuk with a 4000W motor, hydraulic drum brakes, and independent suspension for urban, resort, and community transport.
Key Features
- 3+1 seating for four people

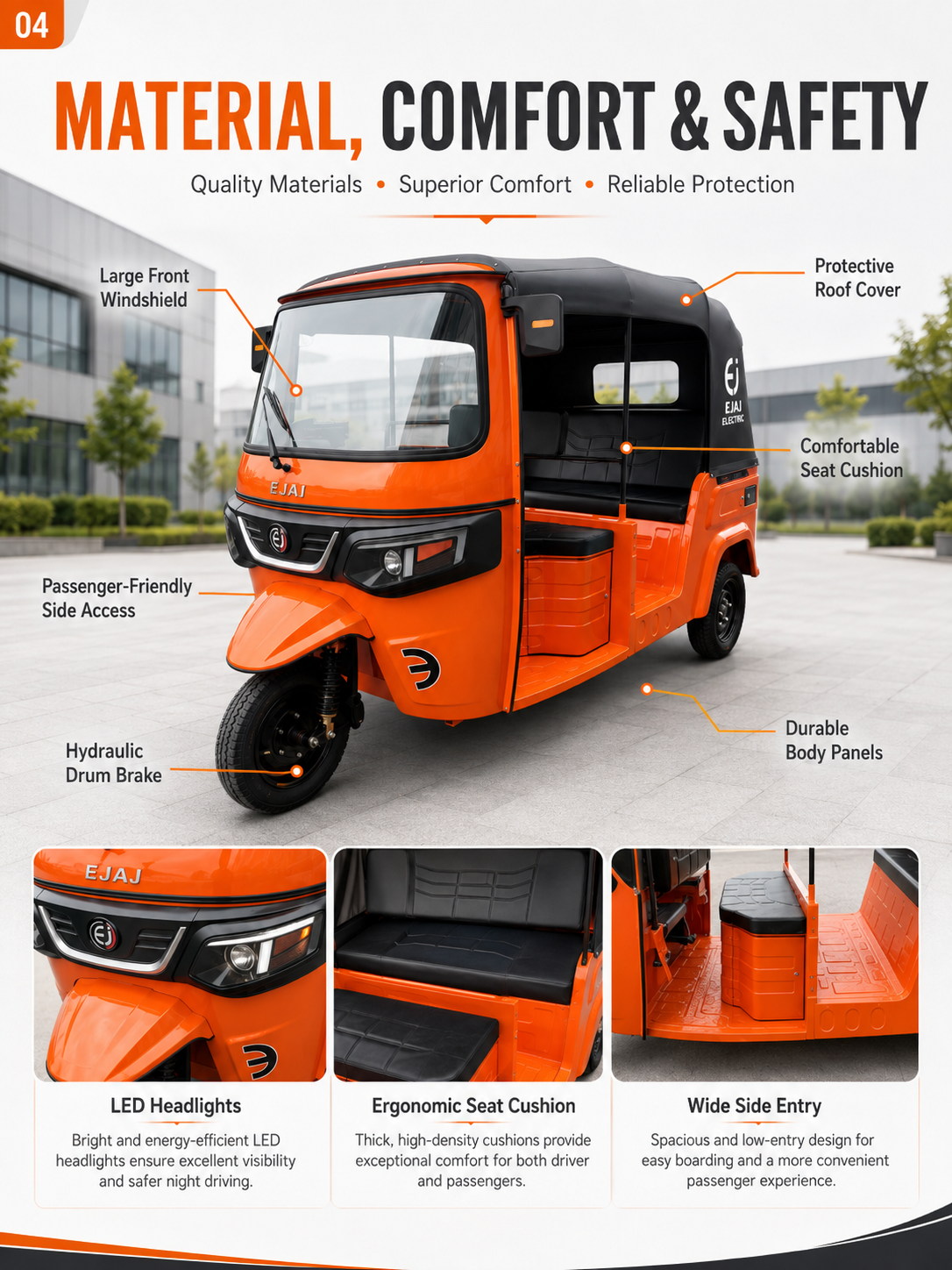

- Hydraulic drum braking system
- Independent front and rear suspension
- Electronic gear shifting
- Lithium-ion battery configuration

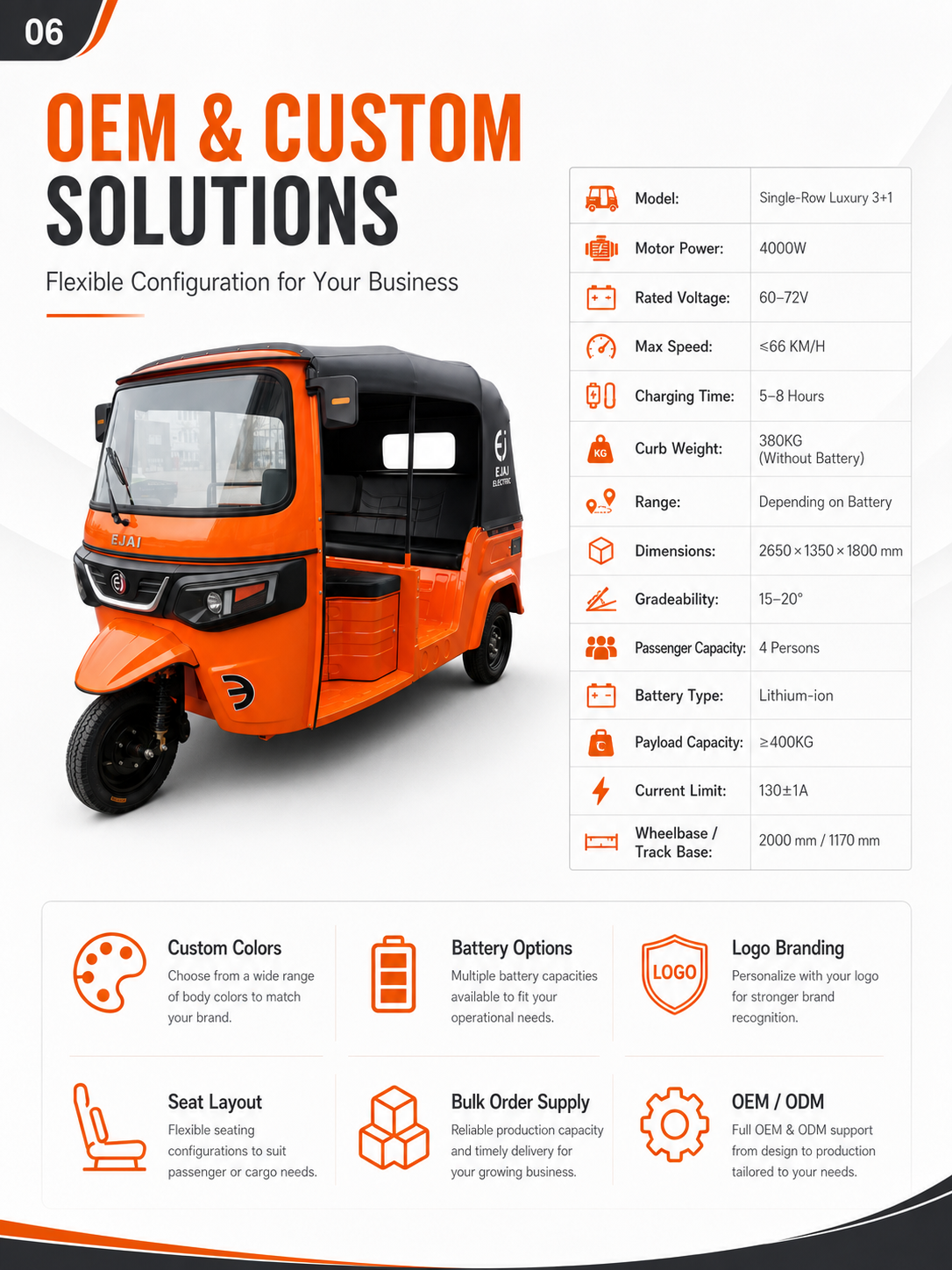

Technical Specifications

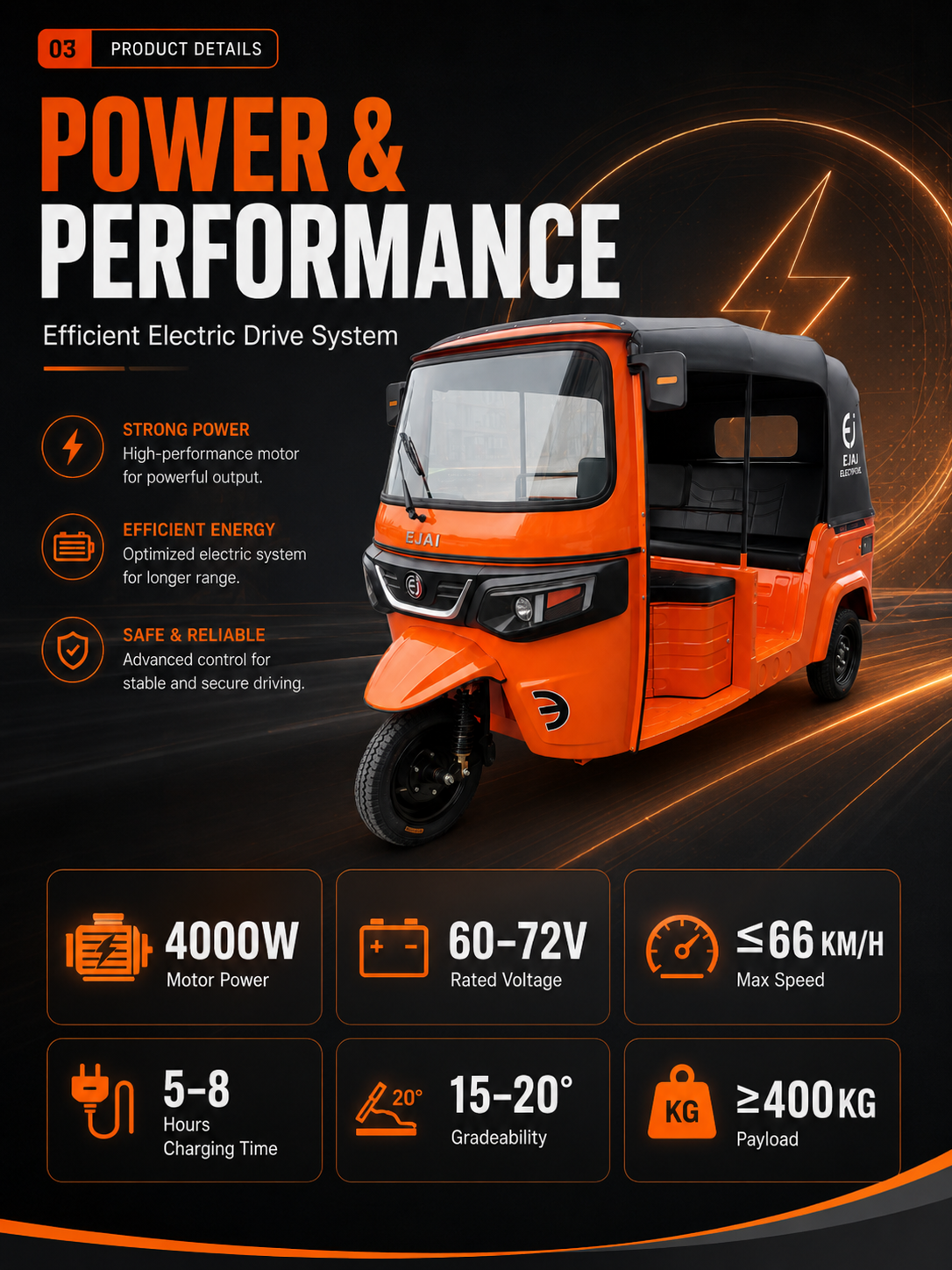

| Model | Single-Row Deluxe 3+1 |
| Rated Voltage | 60–72V |
| Motor Power | 4000W |
| Maximum Speed | ≤66 km/h |
| Payload Capacity | ≥400 kg |
| Dimensions (L × W × H) | 2650 × 1350 × 1800 mm |
| Curb Weight | 380 kg (without battery) |
| Passenger Capacity | 4 persons |
| Charging Time | 5–8 hours |
| Gradeability | 15–20° |
| Battery Type | Lithium-ion |
| Motor Type | Direct current motor |
| Gear System | Electronic shifting |
| Brakes | Hydraulic drum brake |

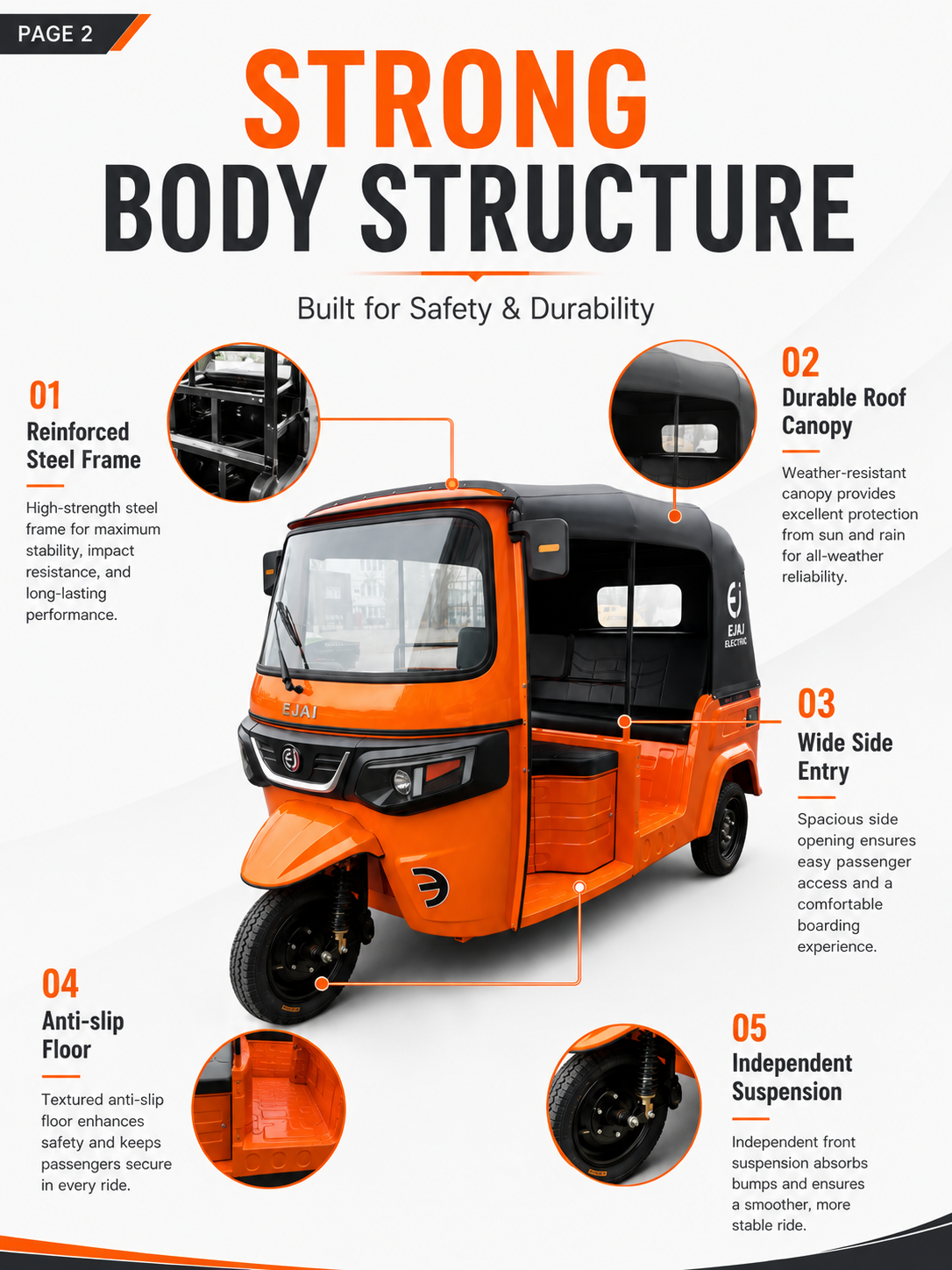

| Suspension | Independent front suspension; independent rear suspension with ball-cage half shaft |
| Wheelbase / Track Base | 2000 / 1170 mm |
| Range | Depends on battery configuration |
Product Details
