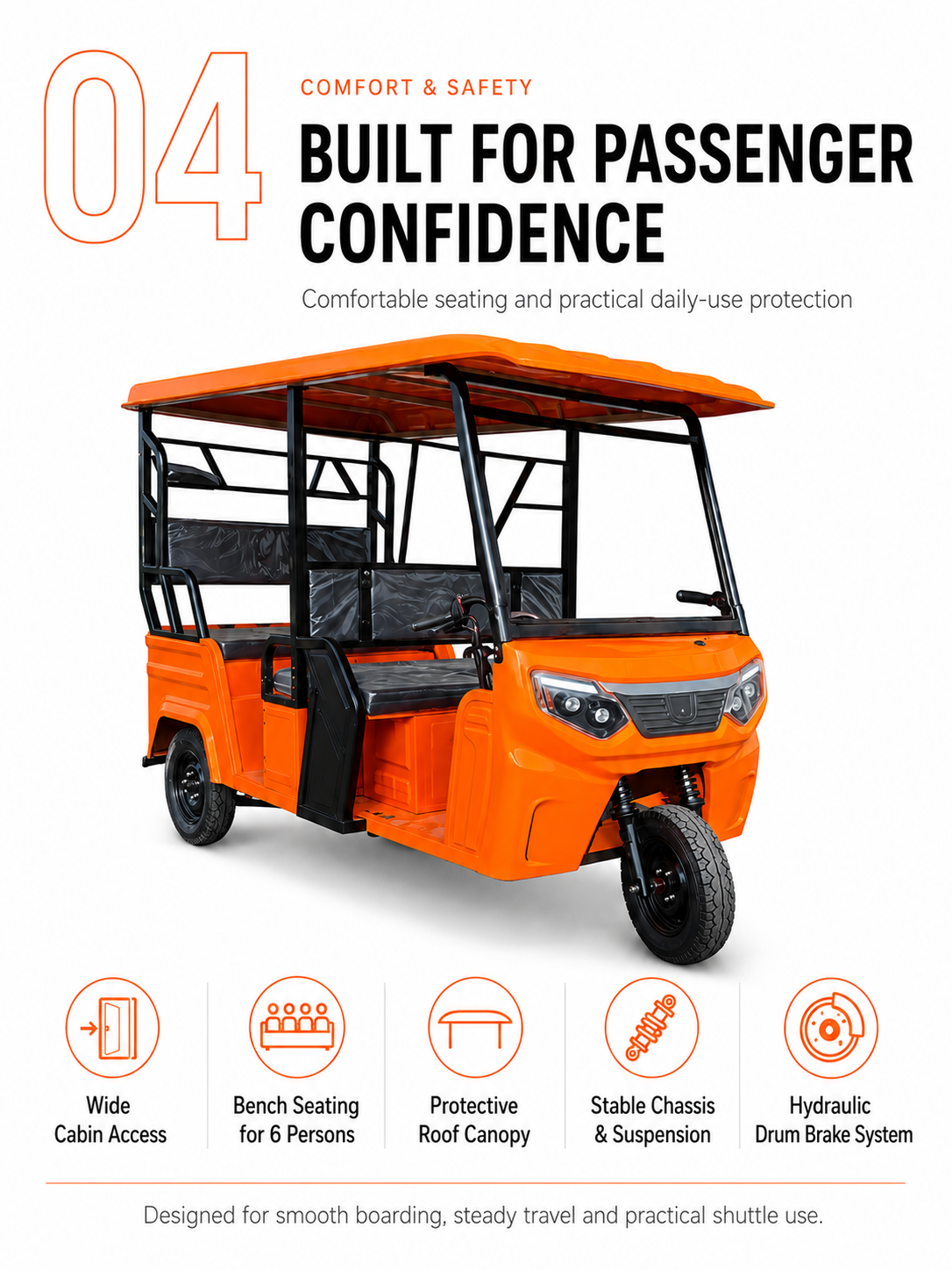

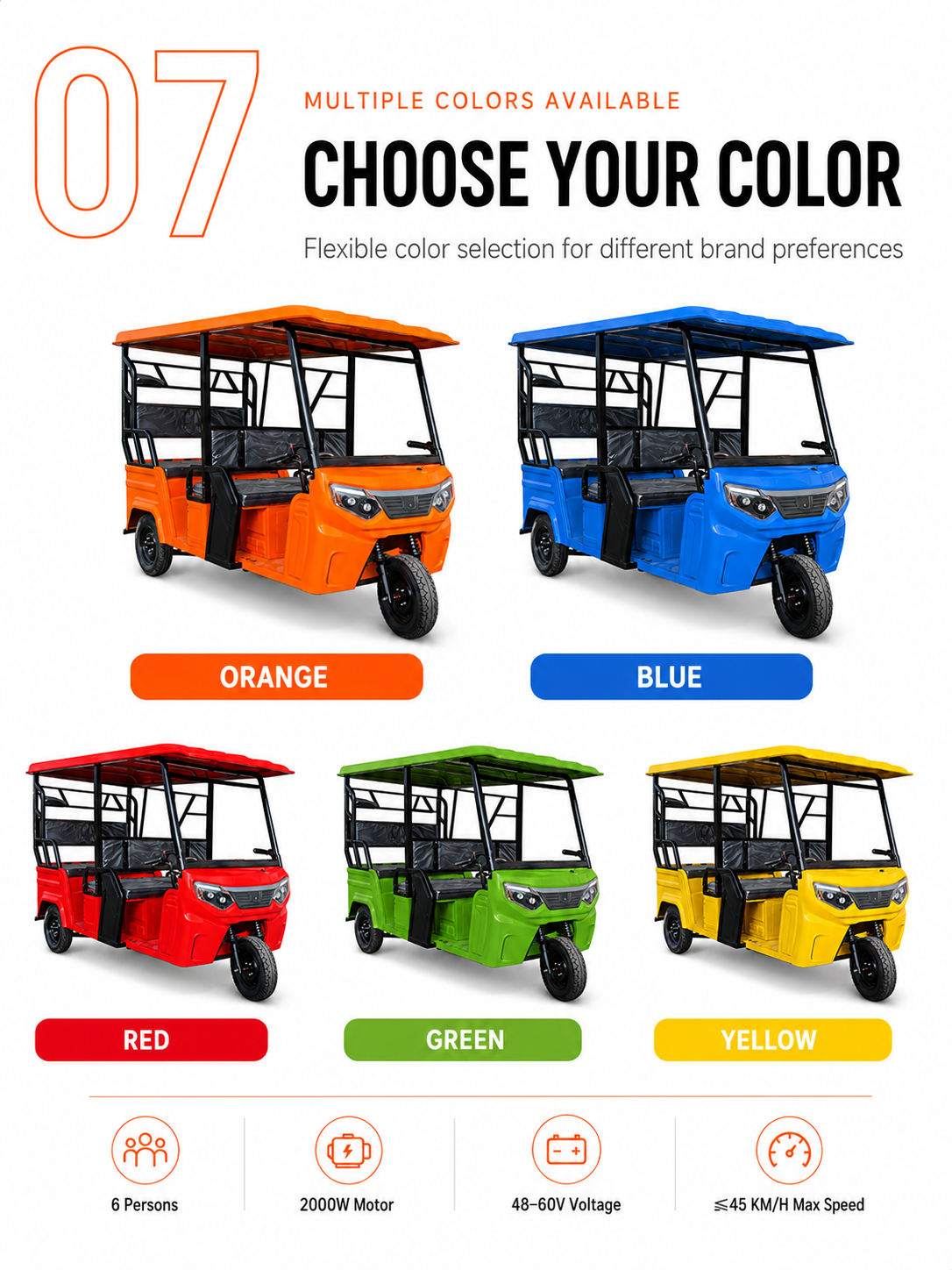

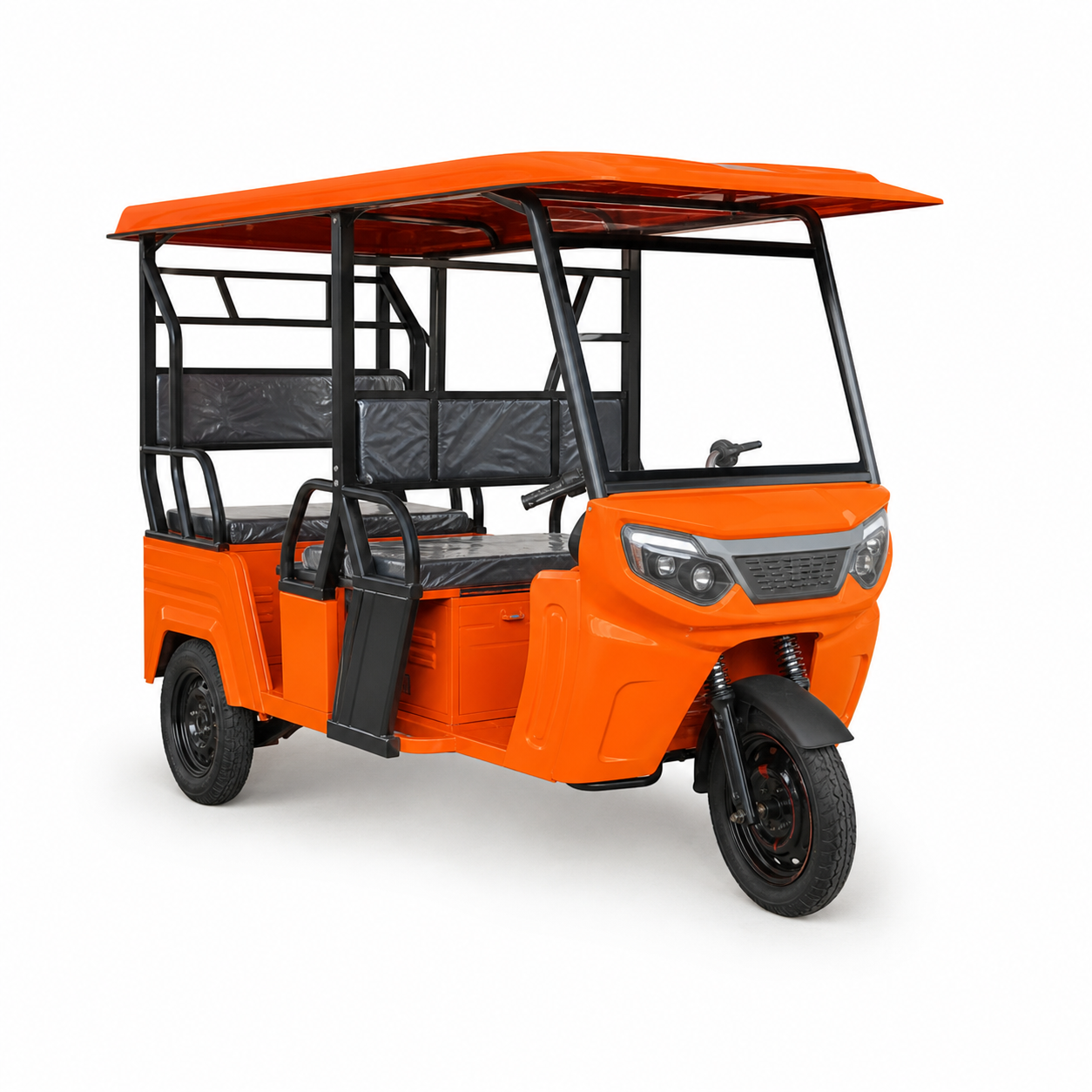

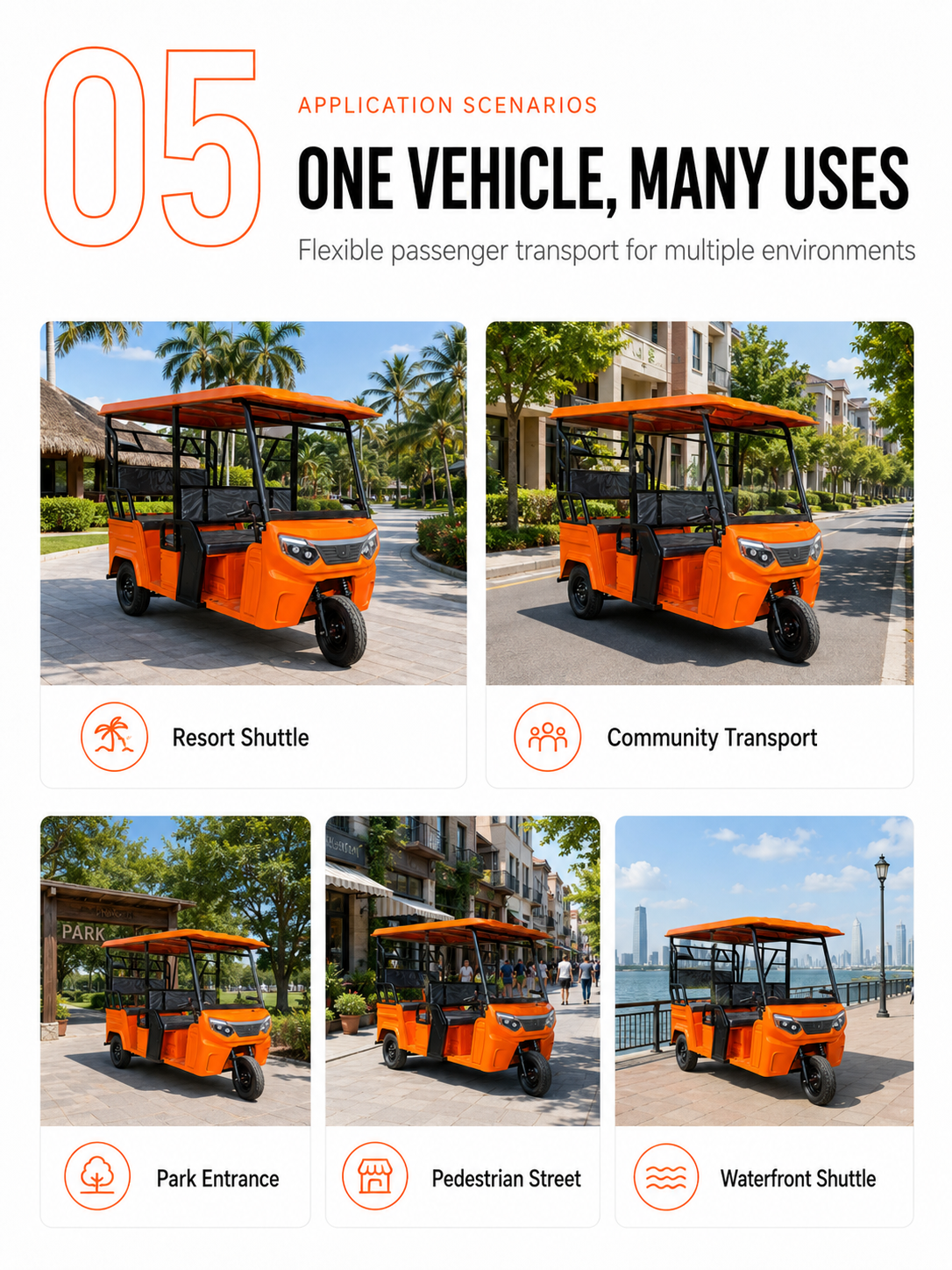

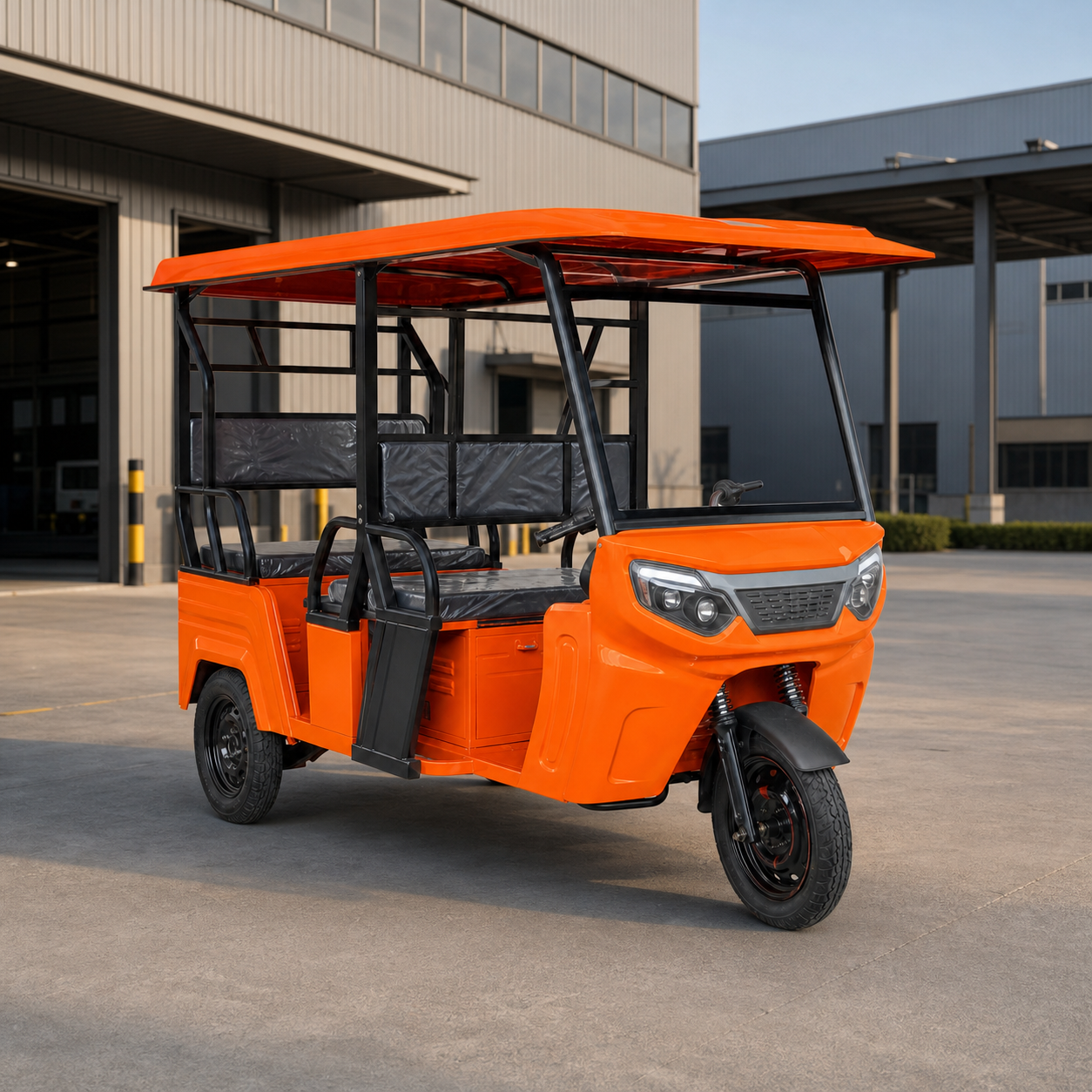

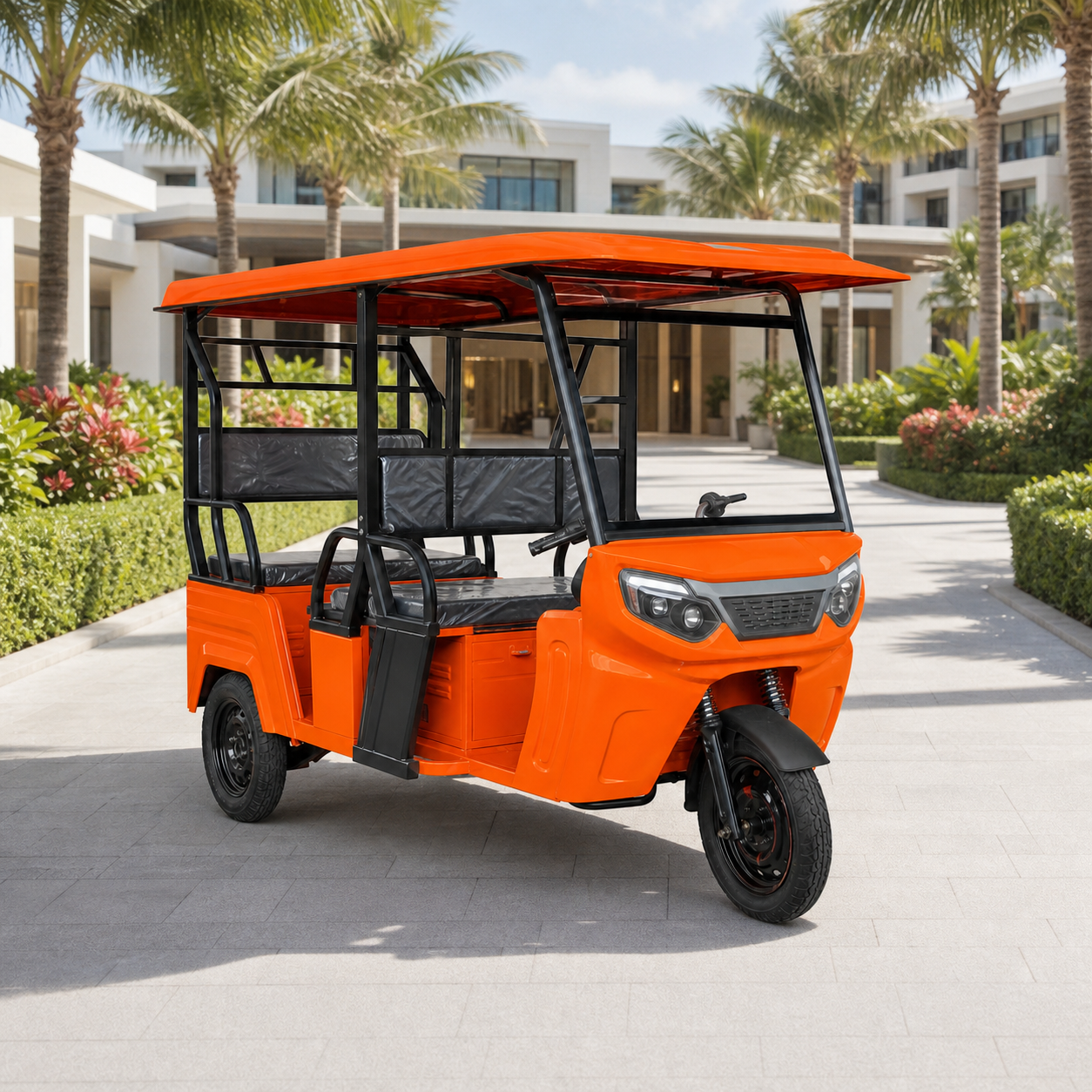

Deluxe Double-Row Open-Canopy Electric Tuk Tuk 6+1
Double-Row Deluxe Open-Canopy 6+1 · 2000W · 48–60V
An open-canopy double-row passenger tuk tuk with a 2000W PMSM motor, hydraulic drum brakes, and 600 kg-class payload capability.

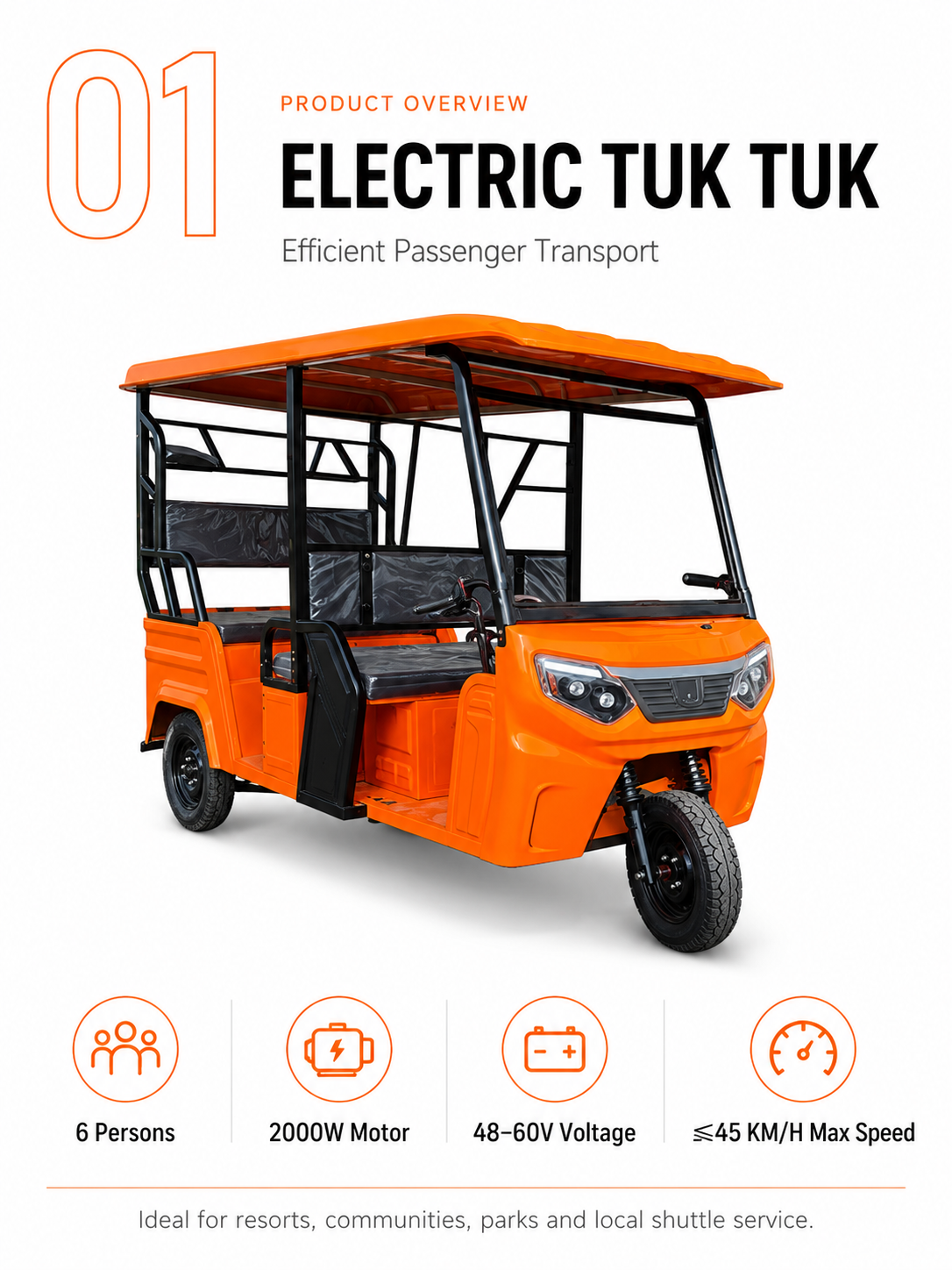

Product Overview
An open-canopy double-row passenger tuk tuk with a 2000W PMSM motor, hydraulic drum brakes, and 600 kg-class payload capability.

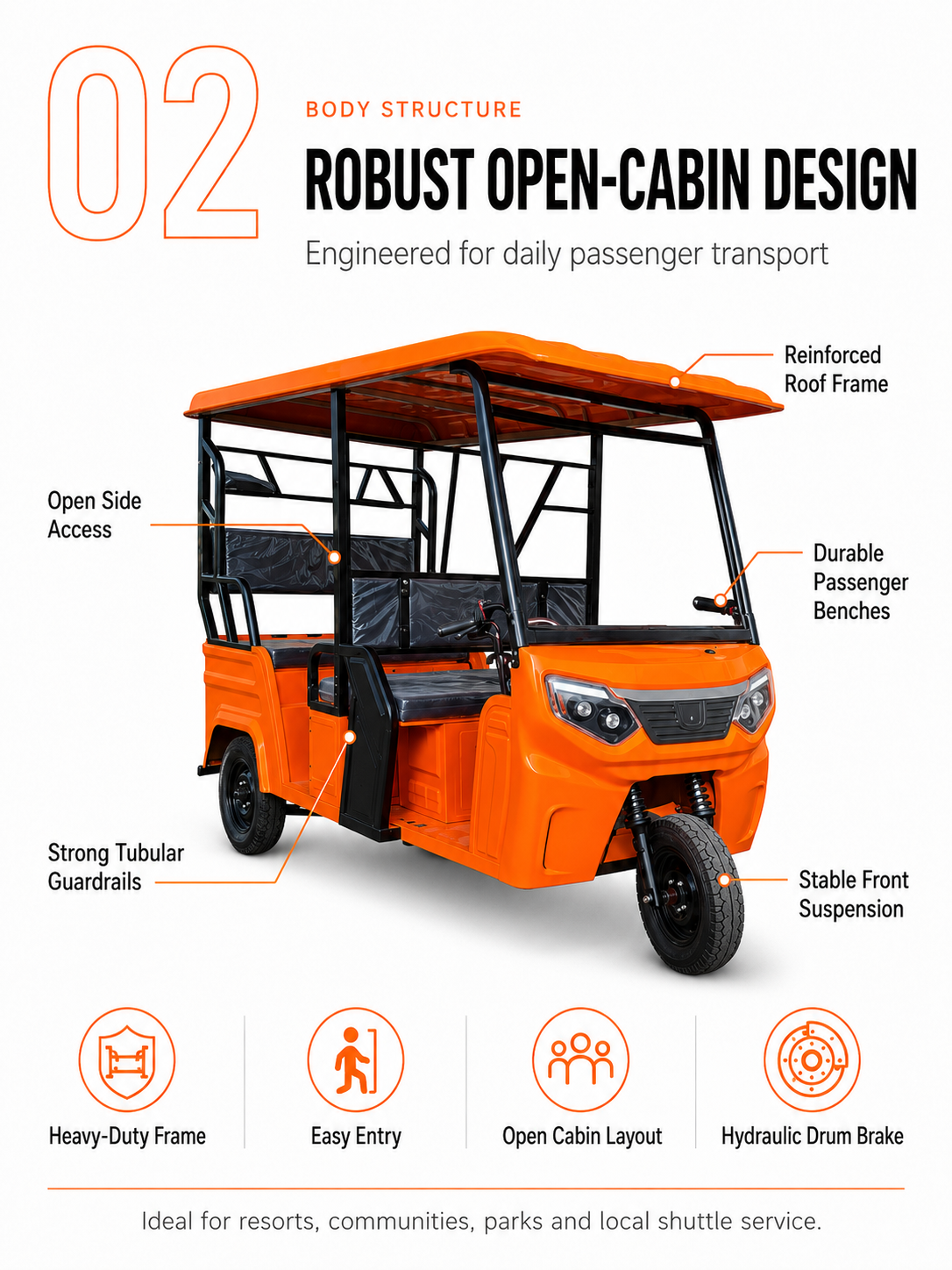

Key Features
- Open-canopy double-row passenger layout
- Mechanical gear shifting
- Hydraulic drum braking system
- Integral rear axle
- Lead-acid or lithium battery options

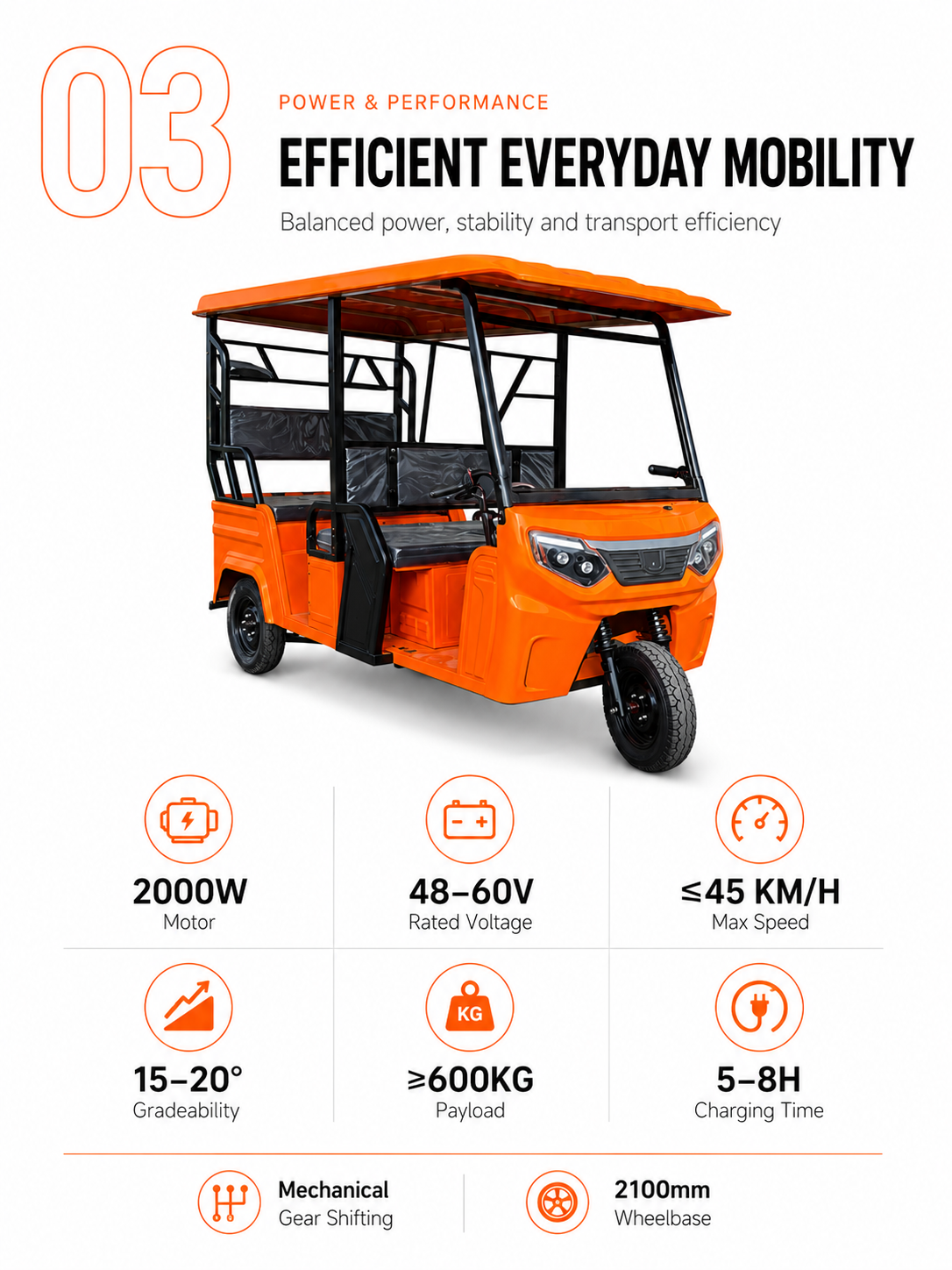

Technical Specifications
| Model | Double-Row Deluxe Open-Canopy 6+1 |
| Rated Voltage | 48–60V |
| Motor Power | 2000W |
| Maximum Speed | ≤45 km/h |
| Payload Capacity | ≥600 kg |
| Dimensions (L × W × H) | 2900 × 1100 × 1850 mm |
| Curb Weight | 320 kg (without battery) |
| Passenger Capacity | 6 persons |
| Charging Time | 5–8 hours |
| Gradeability | 15–20° |
| Battery Type | Lead-acid / lithium |
| Motor Type | PMSM |
| Gear System | Mechanical gear shifting |
| Controller | 30T |
| Rear Axle | Integral rear axle |
| Brakes | Hydraulic drum brake |
| Wheelbase | 2100 mm |
| Range | Depends on battery configuration |
Product Details
