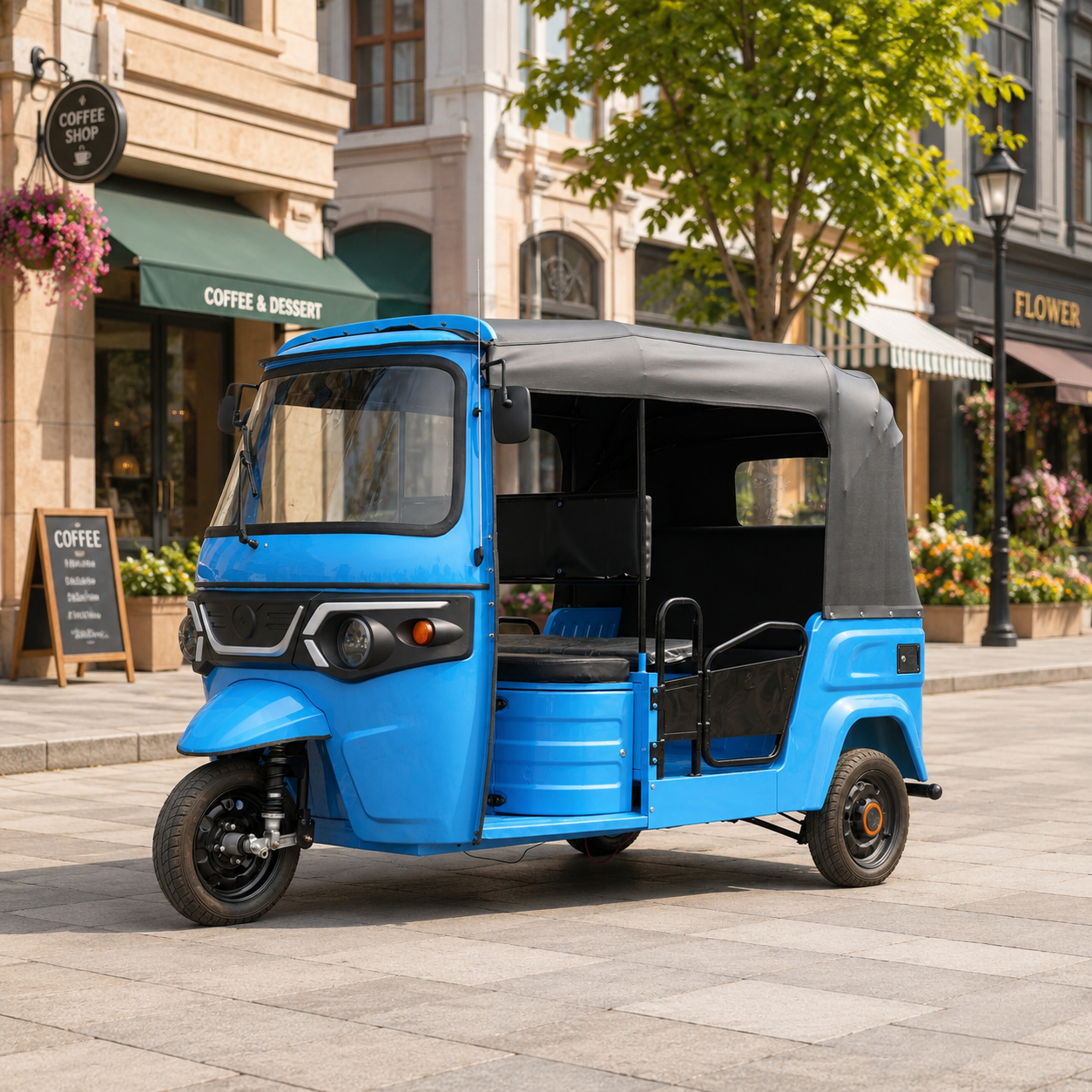

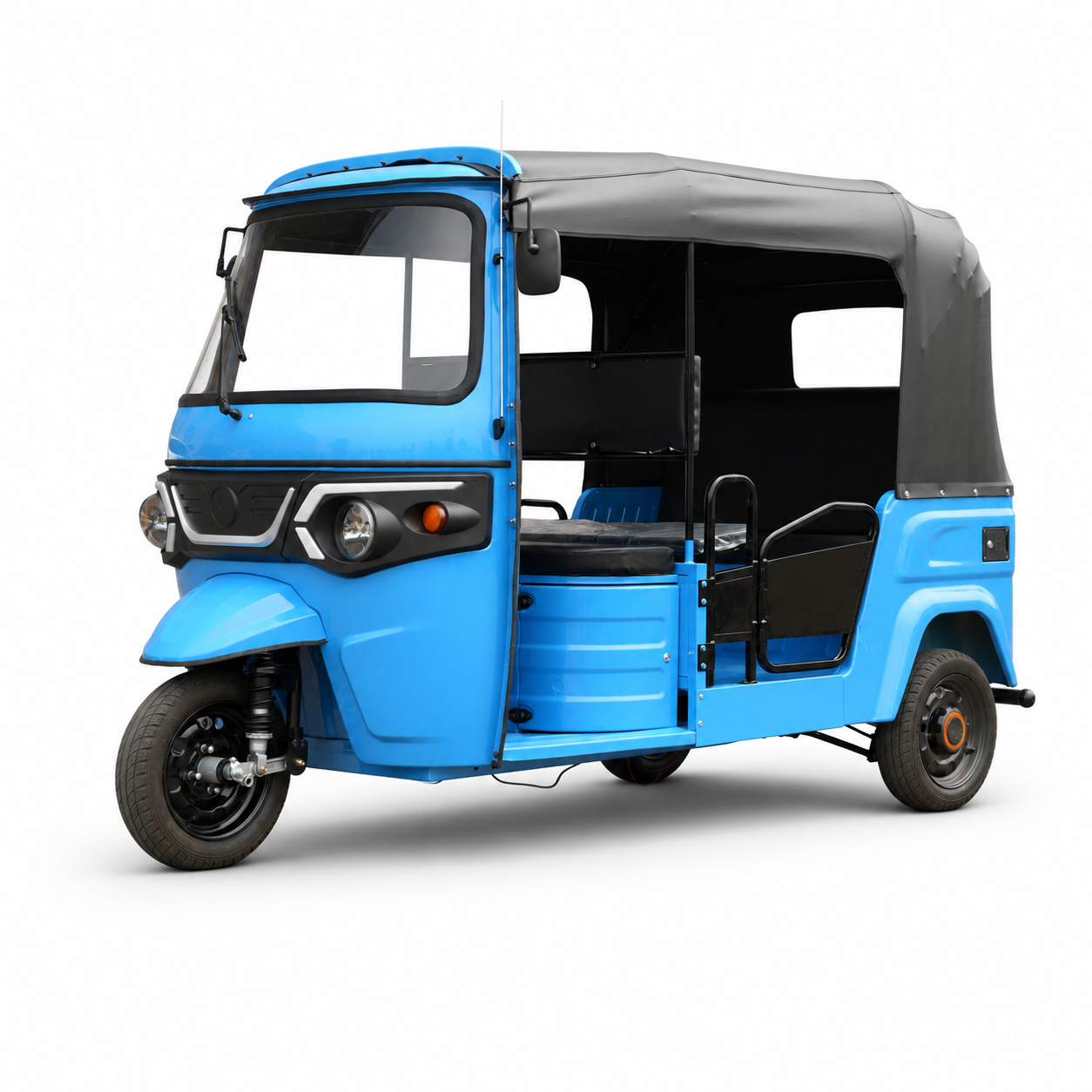

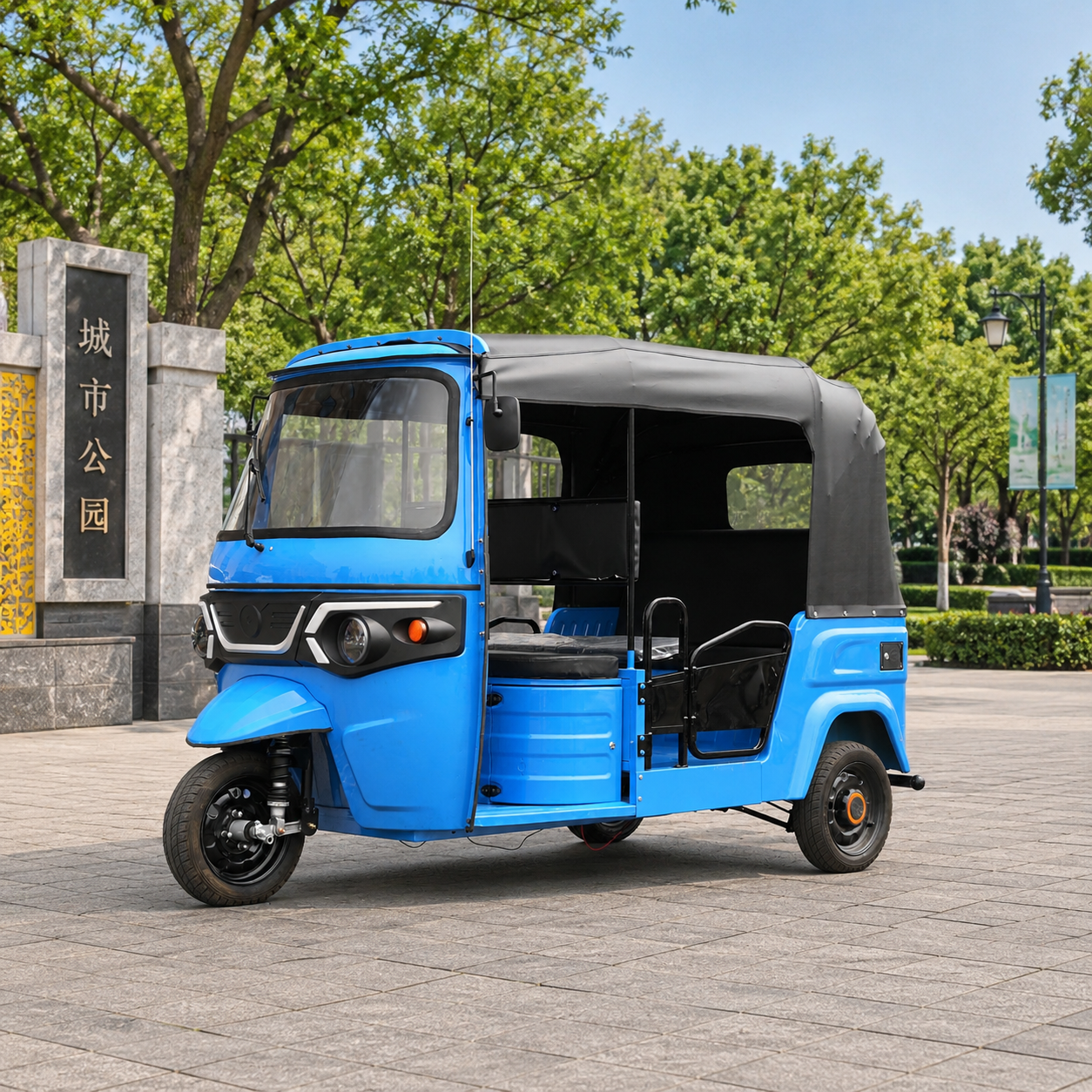

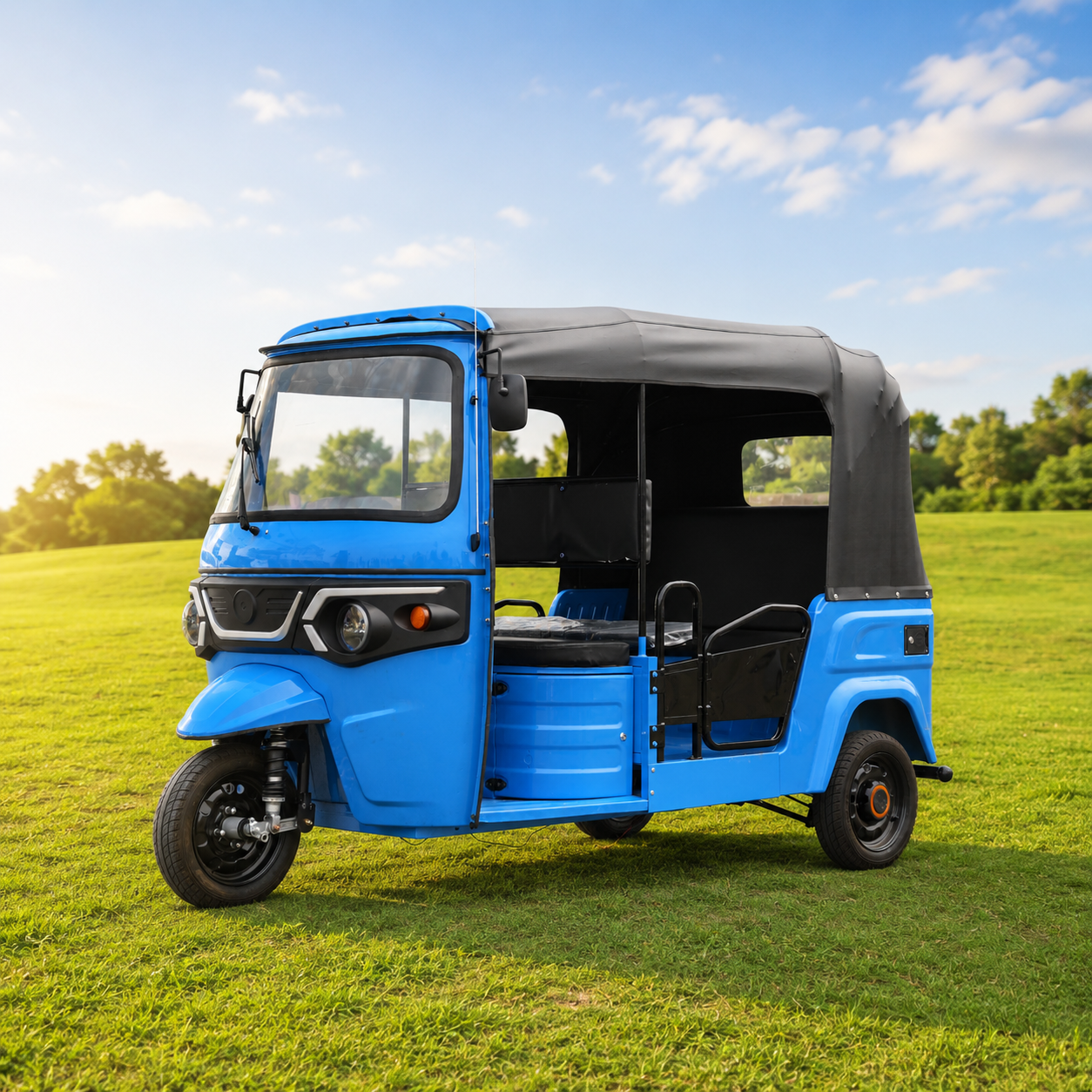

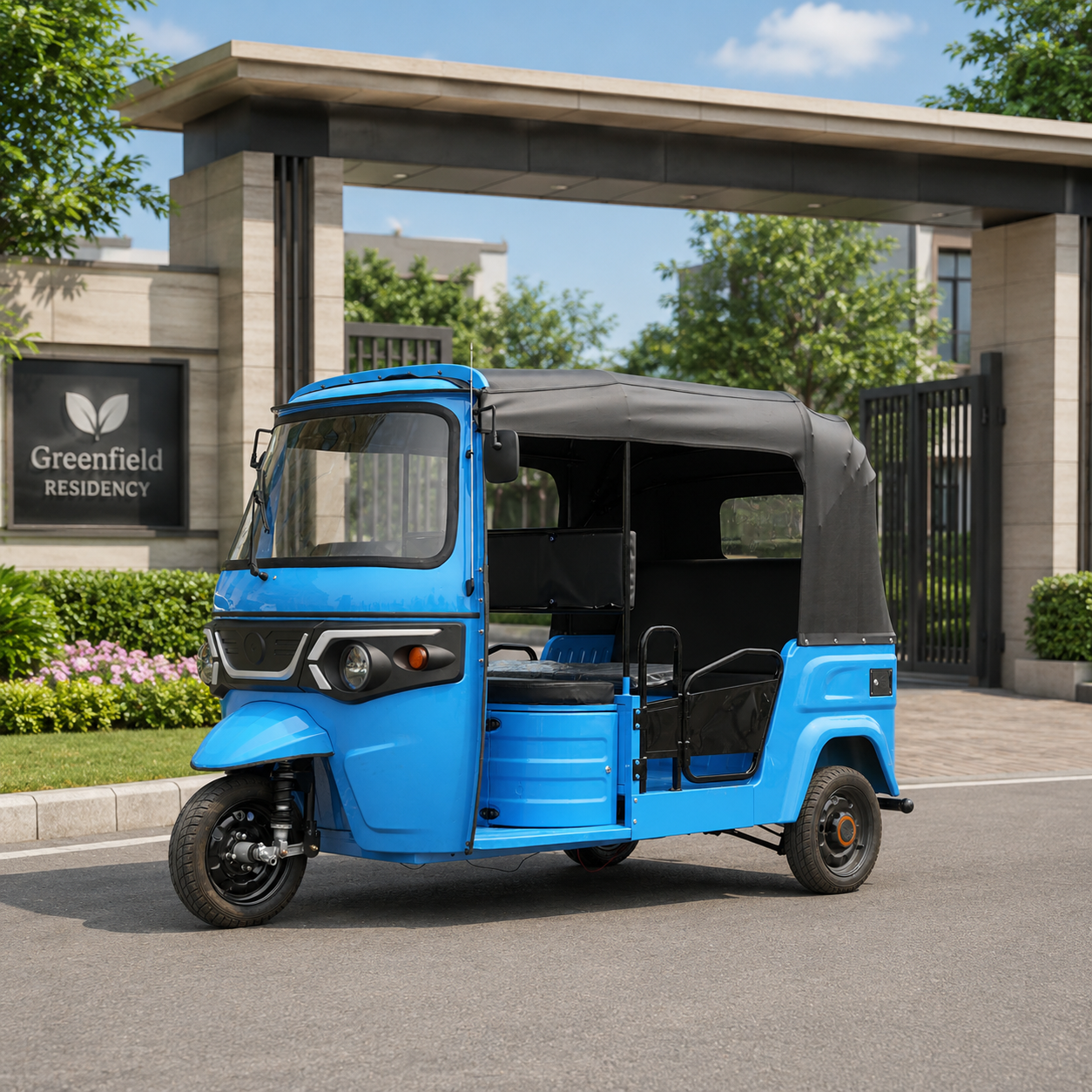

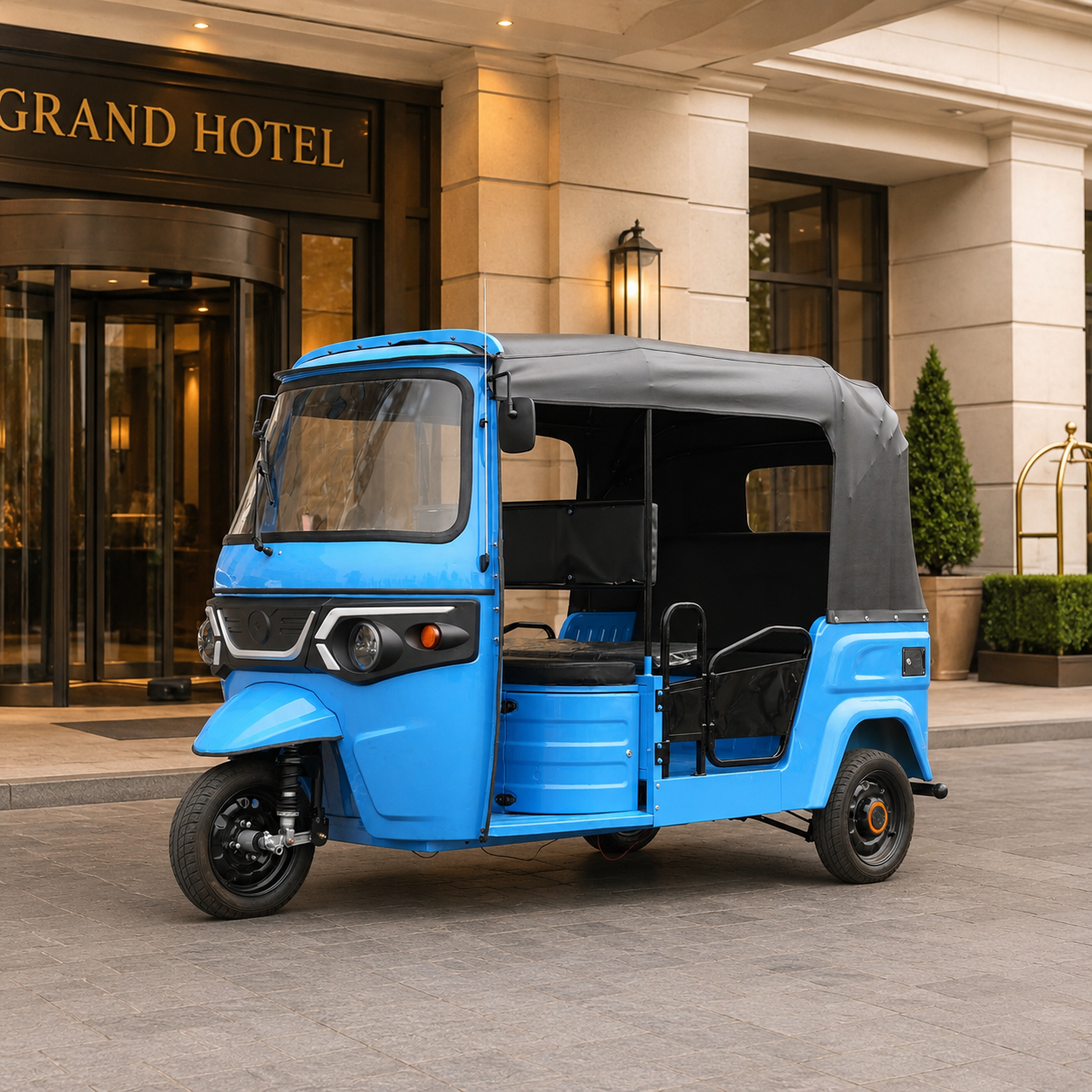

Deluxe Foldable Double-Row Electric Tuk Tuk 6+1
Double-Row Foldable Deluxe 6+1 · 4000W · 60–72V
A high-capacity 6+1 electric passenger tuk tuk with a foldable double-row layout, 4000W motor, and hydraulic drum brakes for group transport.
Product Overview
A high-capacity 6+1 electric passenger tuk tuk with a foldable double-row layout, 4000W motor, and hydraulic drum brakes for group transport.

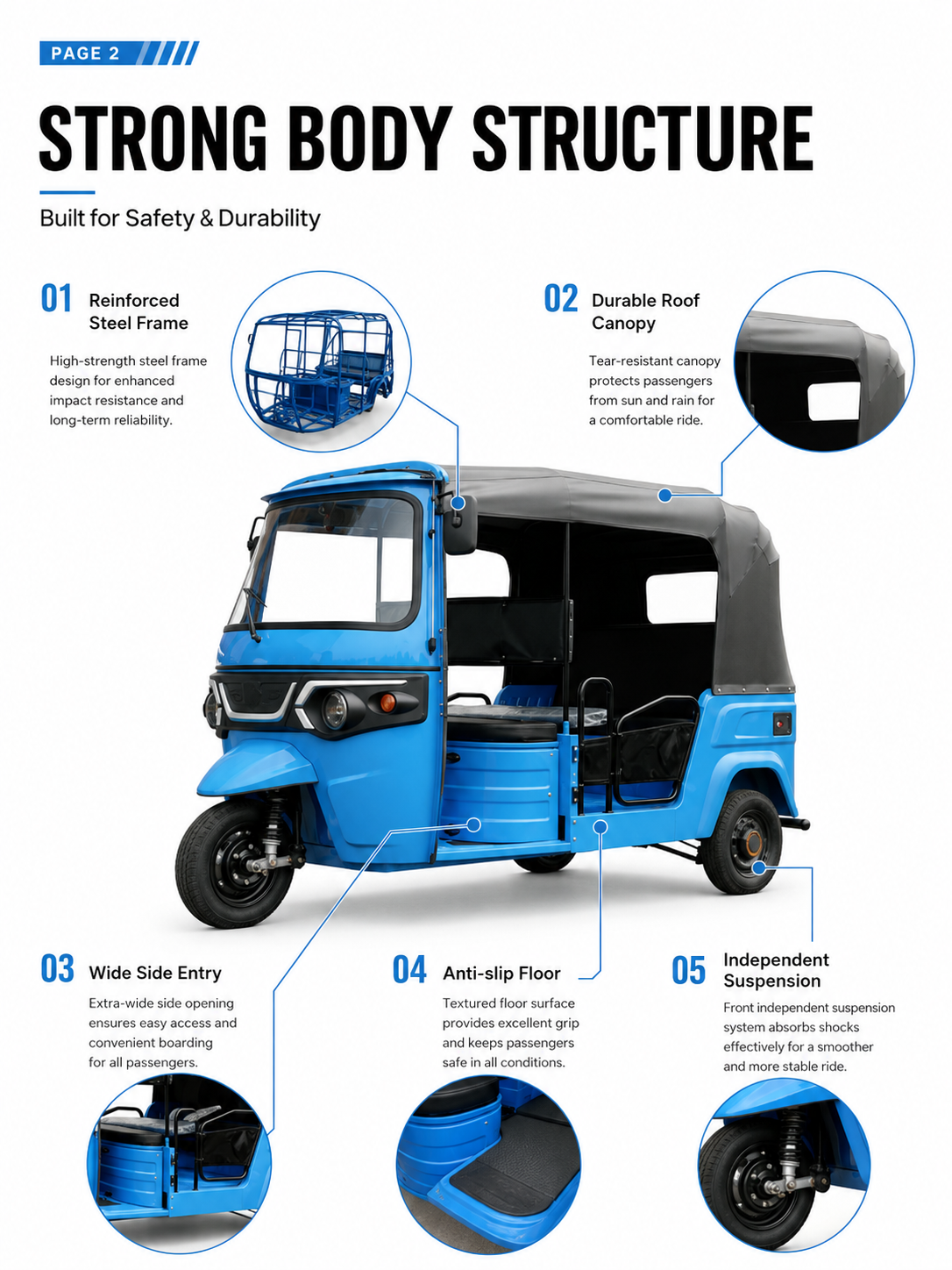

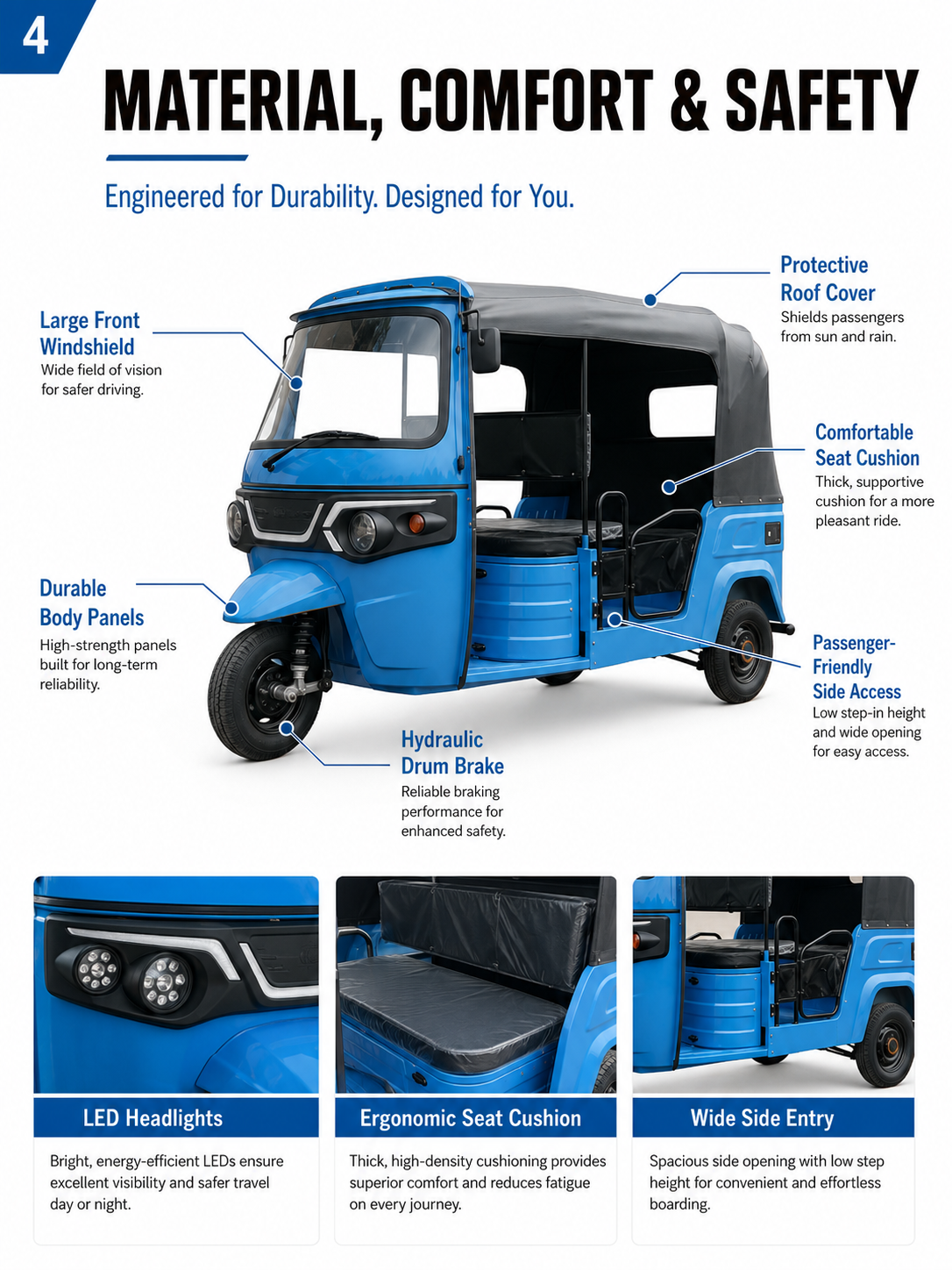

Key Features
- 6+1 double-row passenger layout
- Foldable seating configuration
- Hydraulic drum braking system
- Independent suspension
- Electronic gear shifting

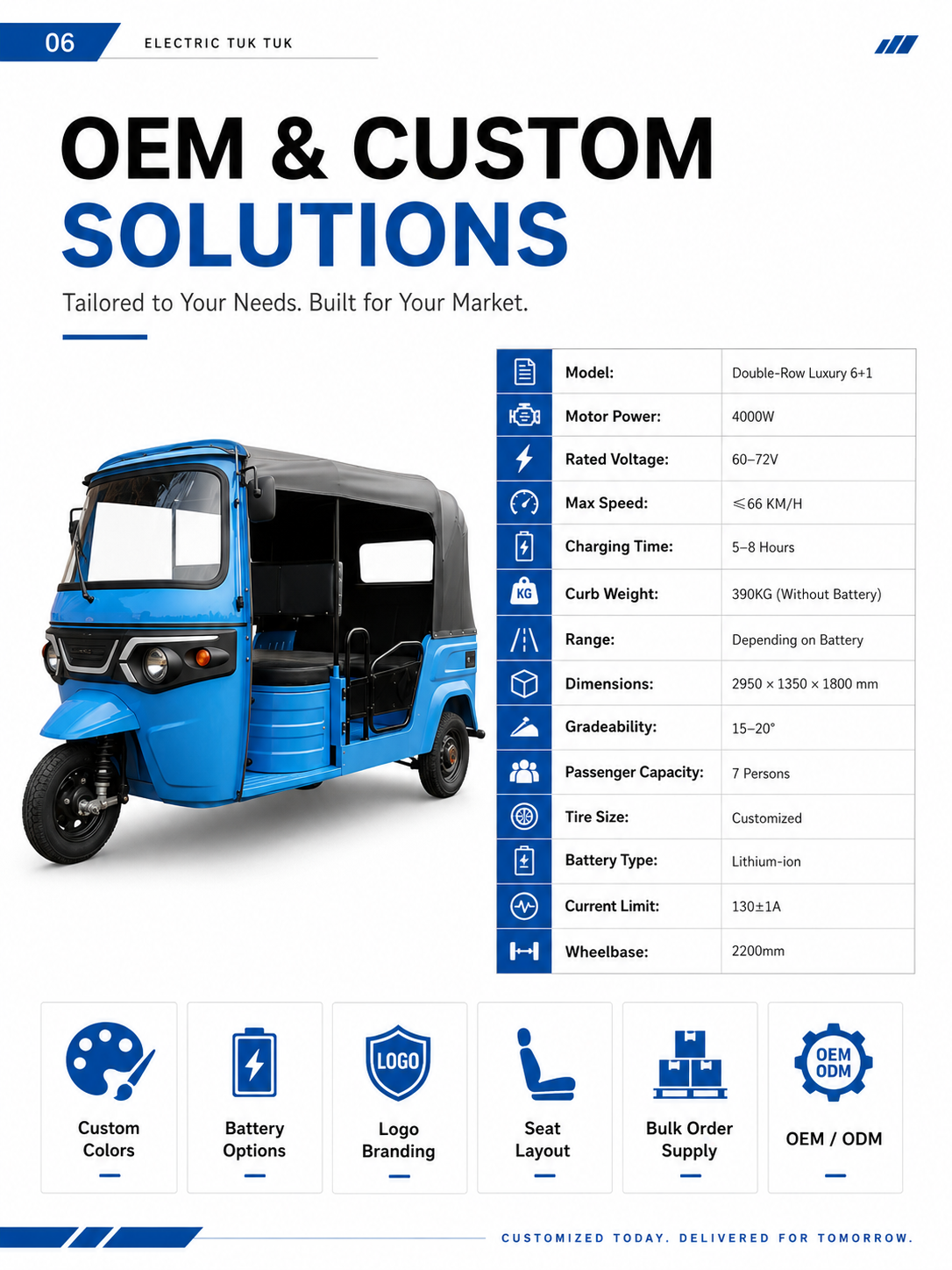

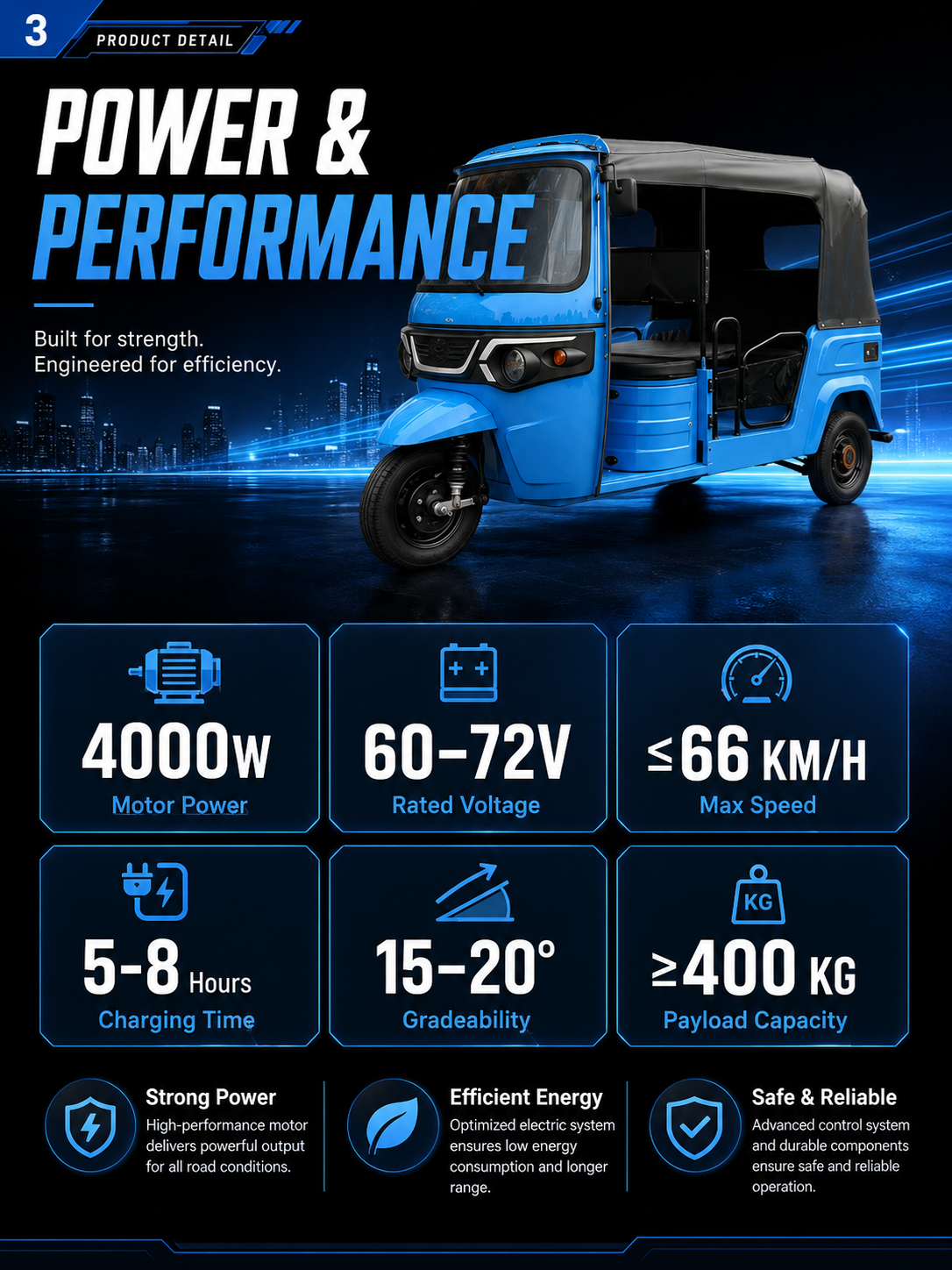

Technical Specifications
| Model | Double-Row Foldable Deluxe 6+1 |
| Rated Voltage | 60–72V |
| Motor Power | 4000W |
| Maximum Speed | ≤66 km/h |
| Payload Capacity | ≥400 kg |
| Dimensions (L × W × H) | 2950 × 1350 × 1800 mm |
| Curb Weight | 390 kg (without battery) |
| Passenger Capacity | 7 persons |
| Charging Time | 5–8 hours |
| Gradeability | 15–20° |
| Battery Type | Lithium-ion |
| Motor Type | Direct current motor |
| Gear System | Electronic shifting |
| Brakes | Hydraulic drum brake |
| Suspension | Independent front suspension; independent rear suspension with ball-cage half shaft |
| Wheelbase | 2200 mm |
| Range | Depends on battery configuration |
Product Details
