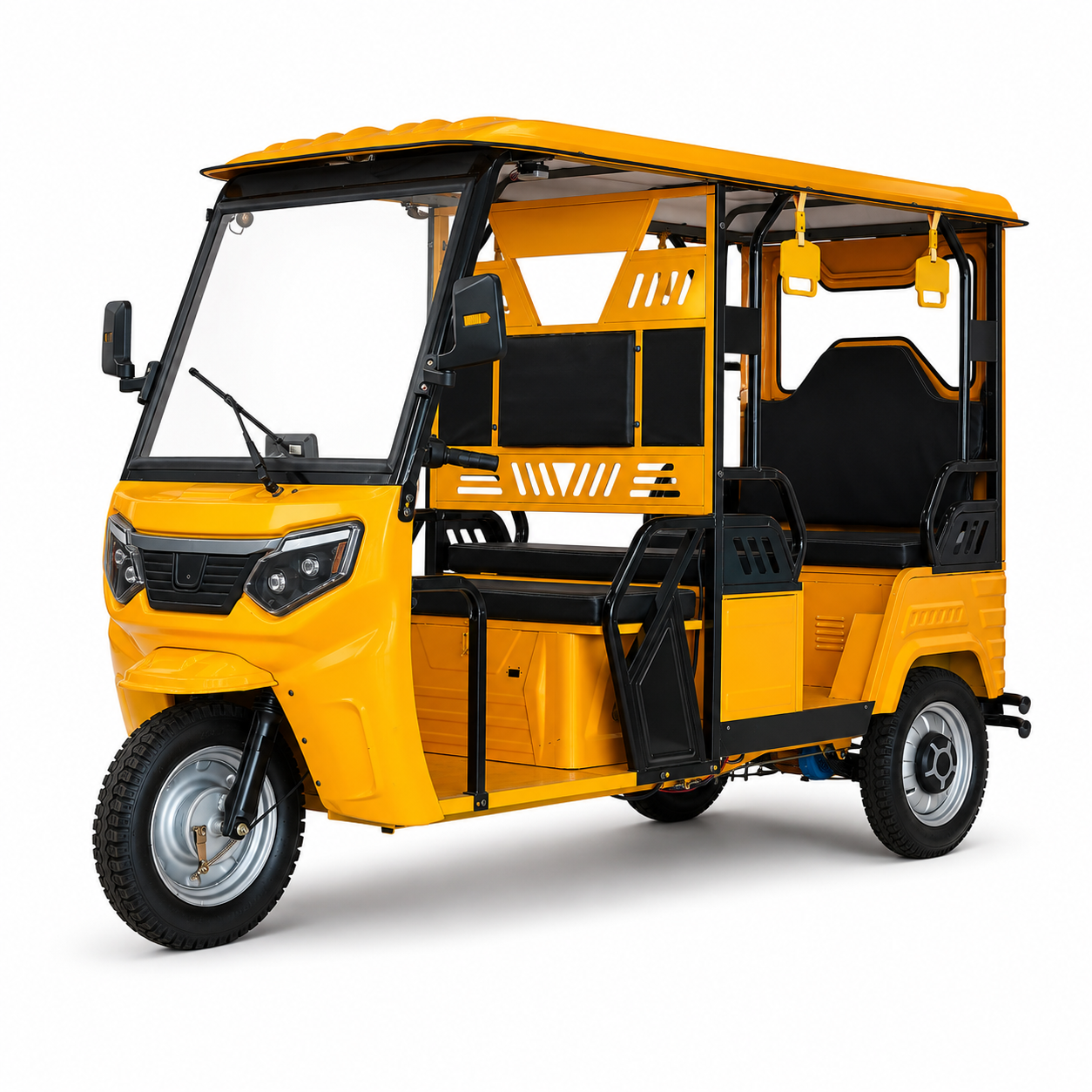

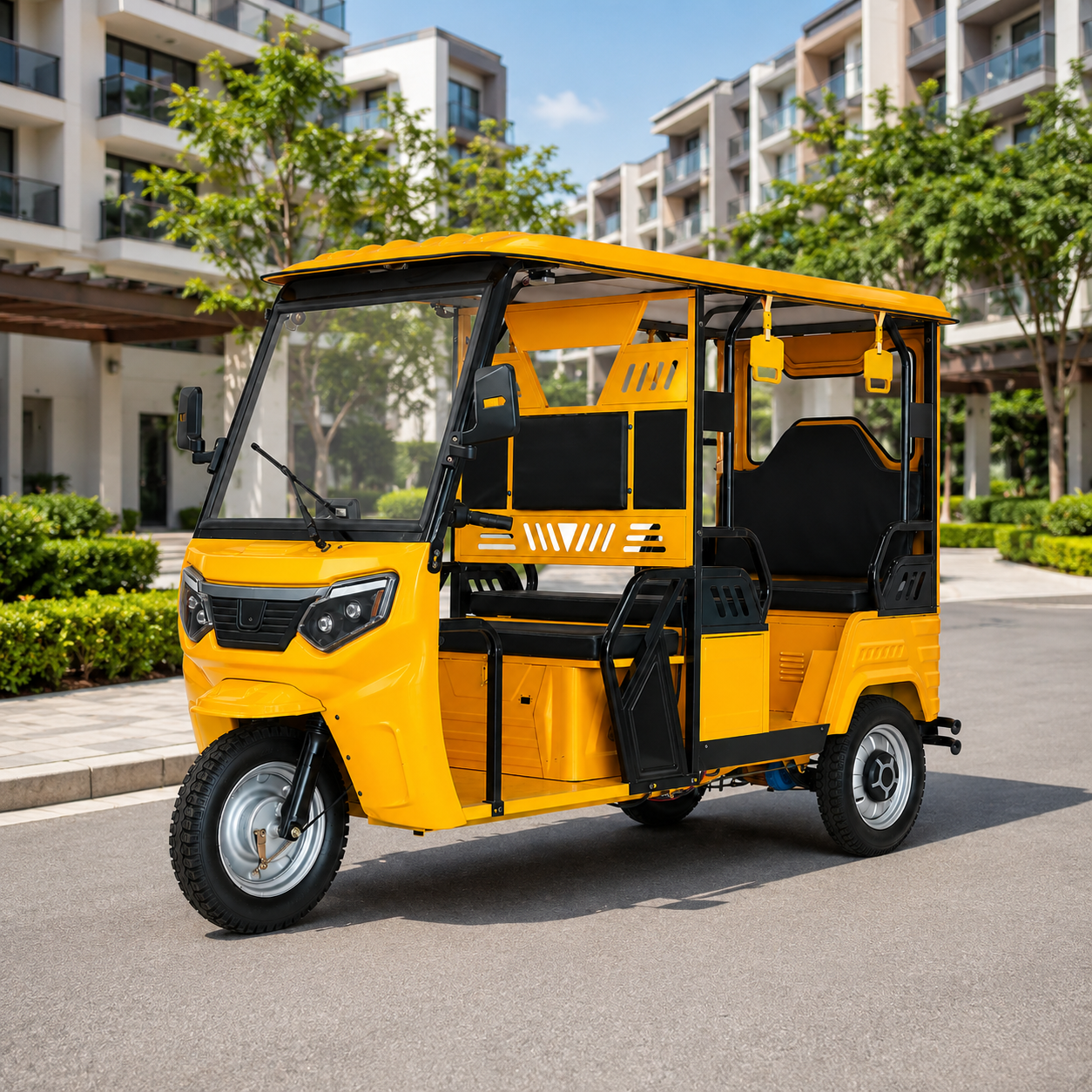

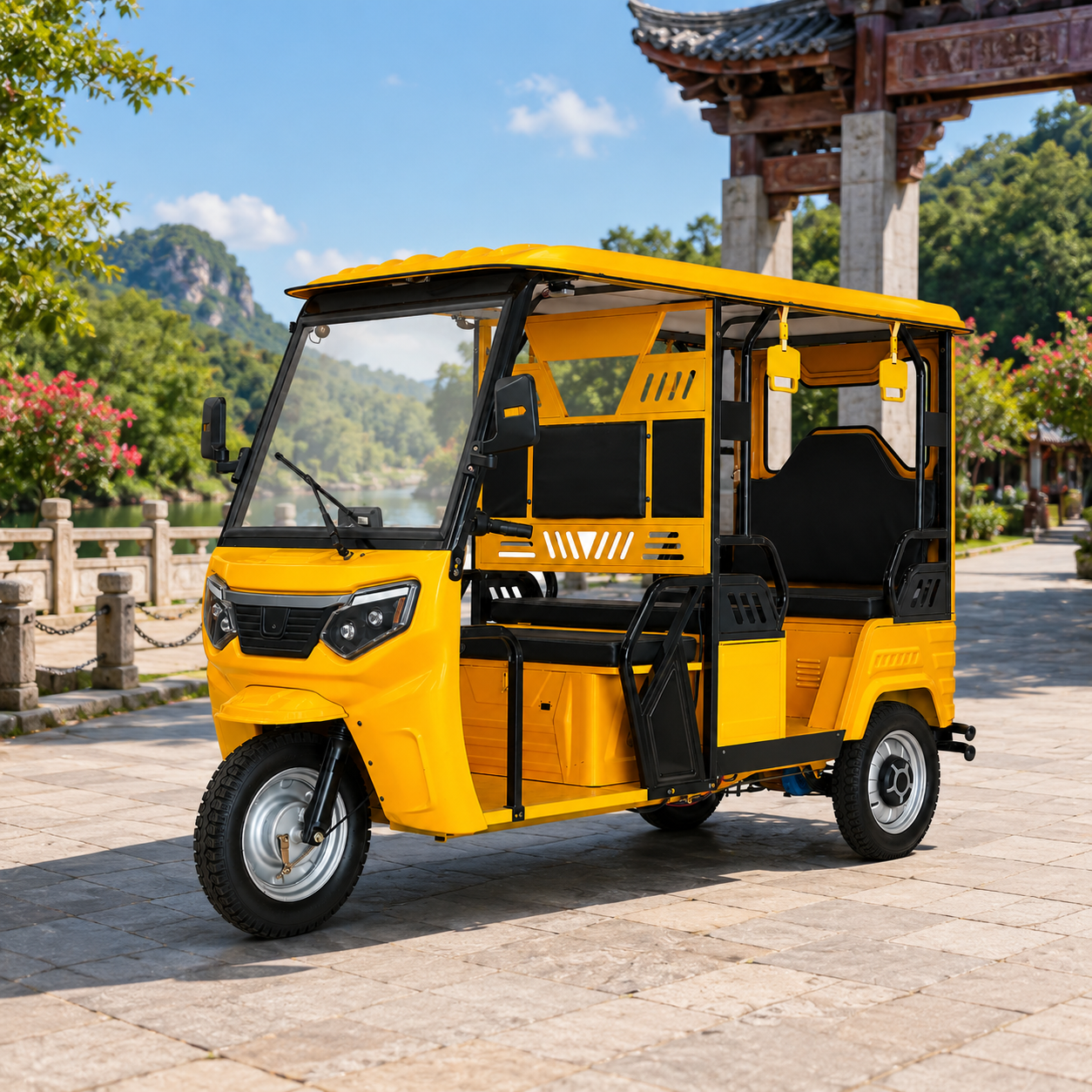

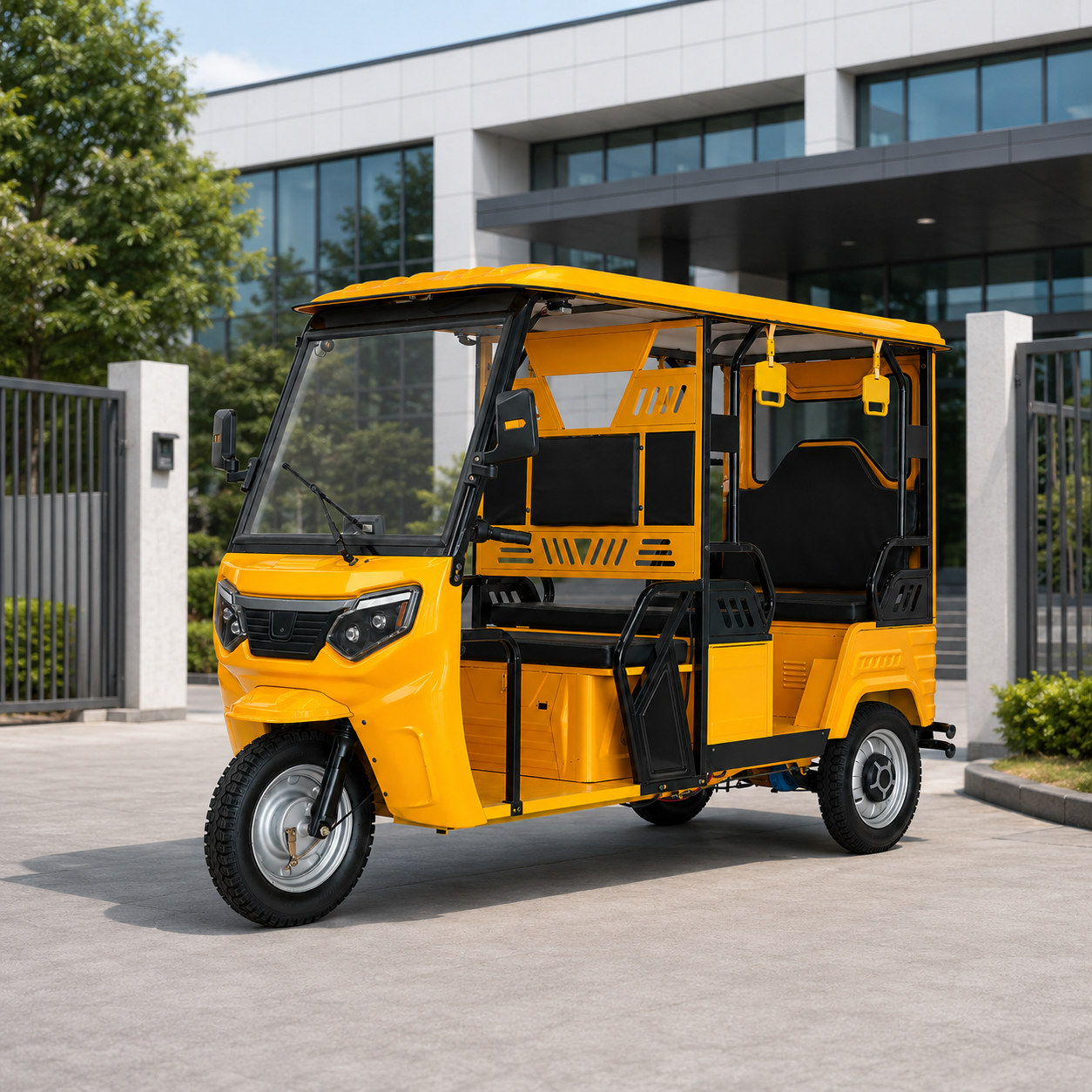

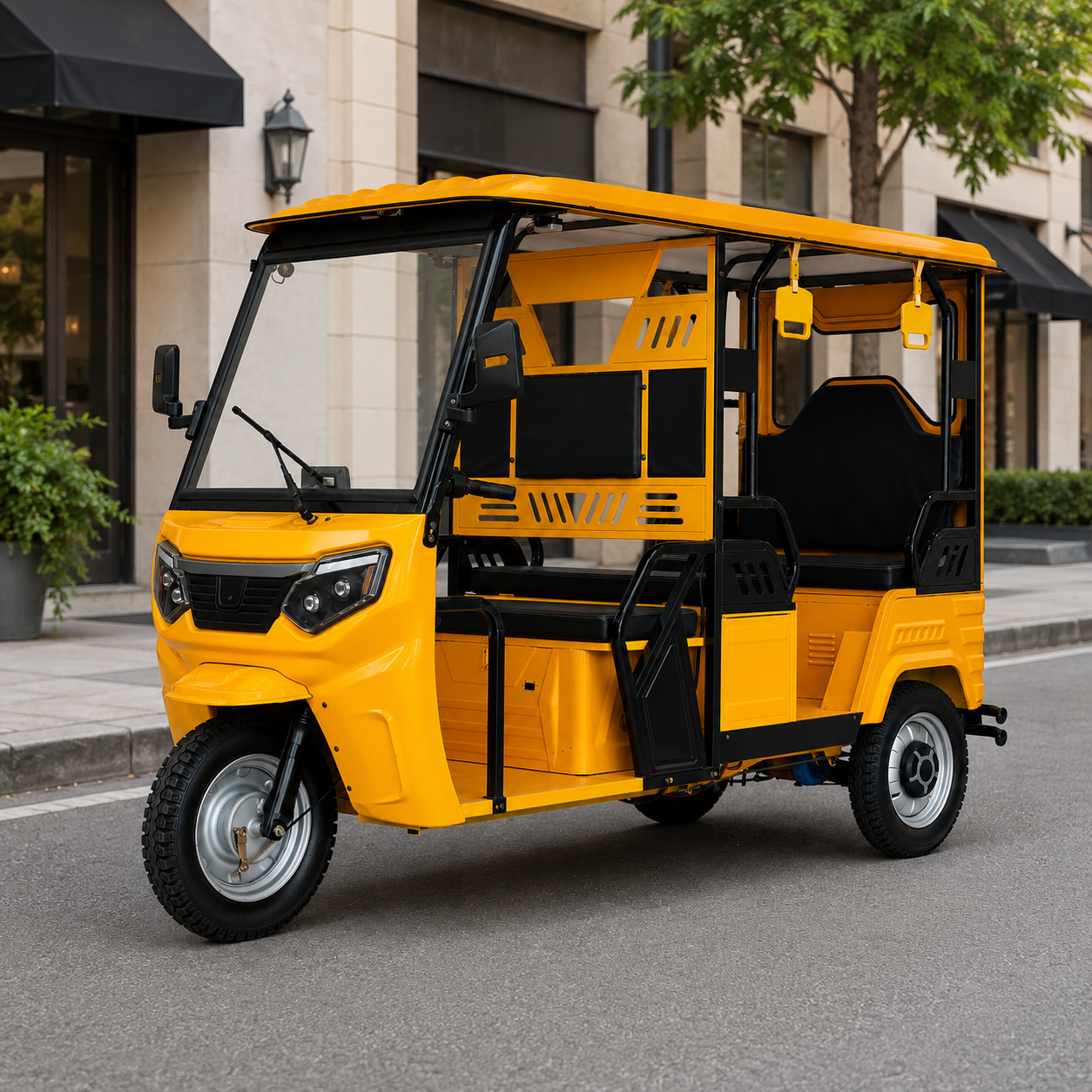

Deluxe Forward-Facing Double-Row Electric Tuk Tuk 6+1
Forward-Facing Double-Row Deluxe 6+1 · 4000W · 60–72V
A deluxe forward-facing double-row electric passenger tricycle with a 4000W motor and 600 kg-class payload capability for demanding passenger routes.

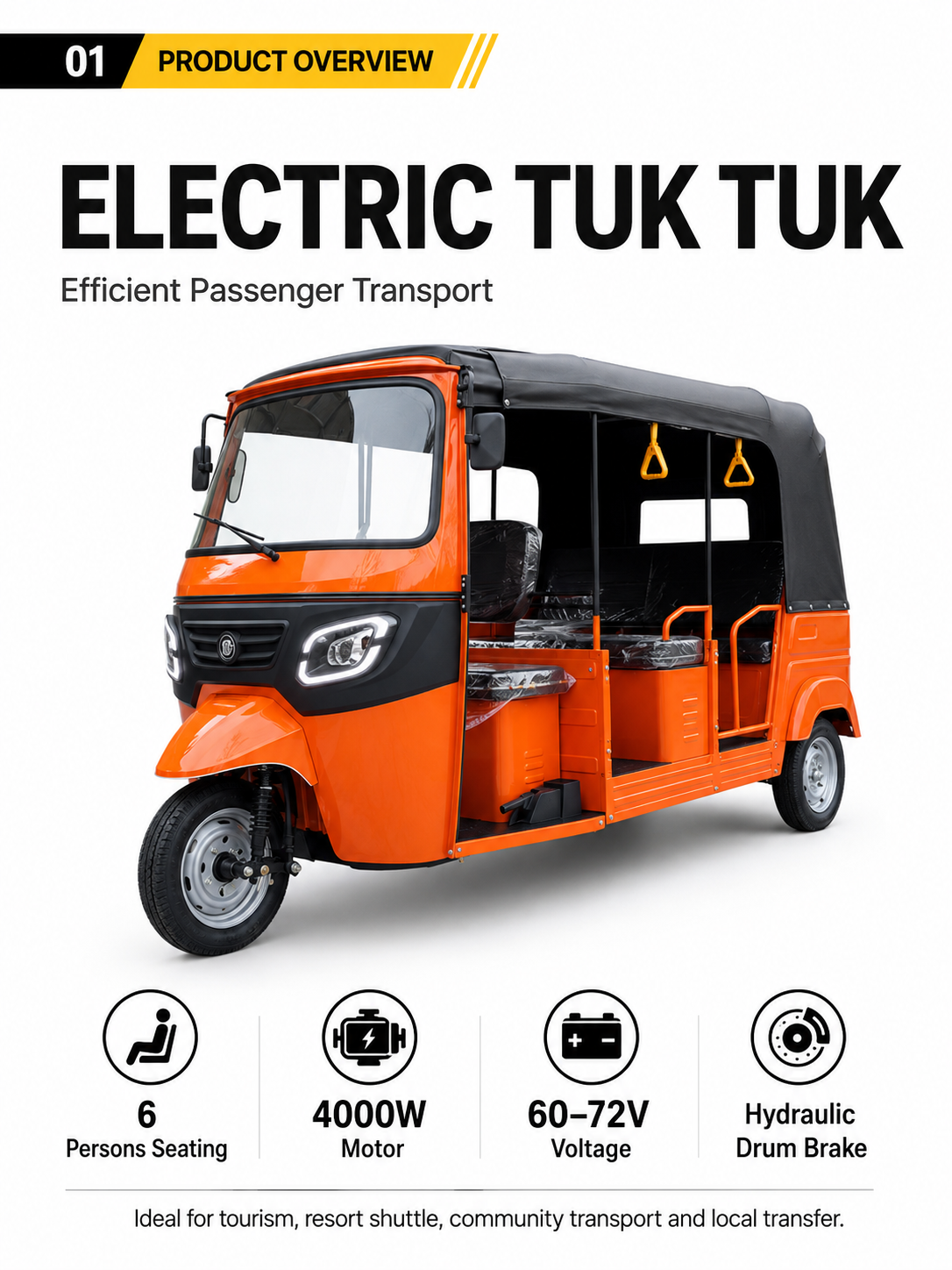

Product Overview
A deluxe forward-facing double-row electric passenger tricycle with a 4000W motor and 600 kg-class payload capability for demanding passenger routes.

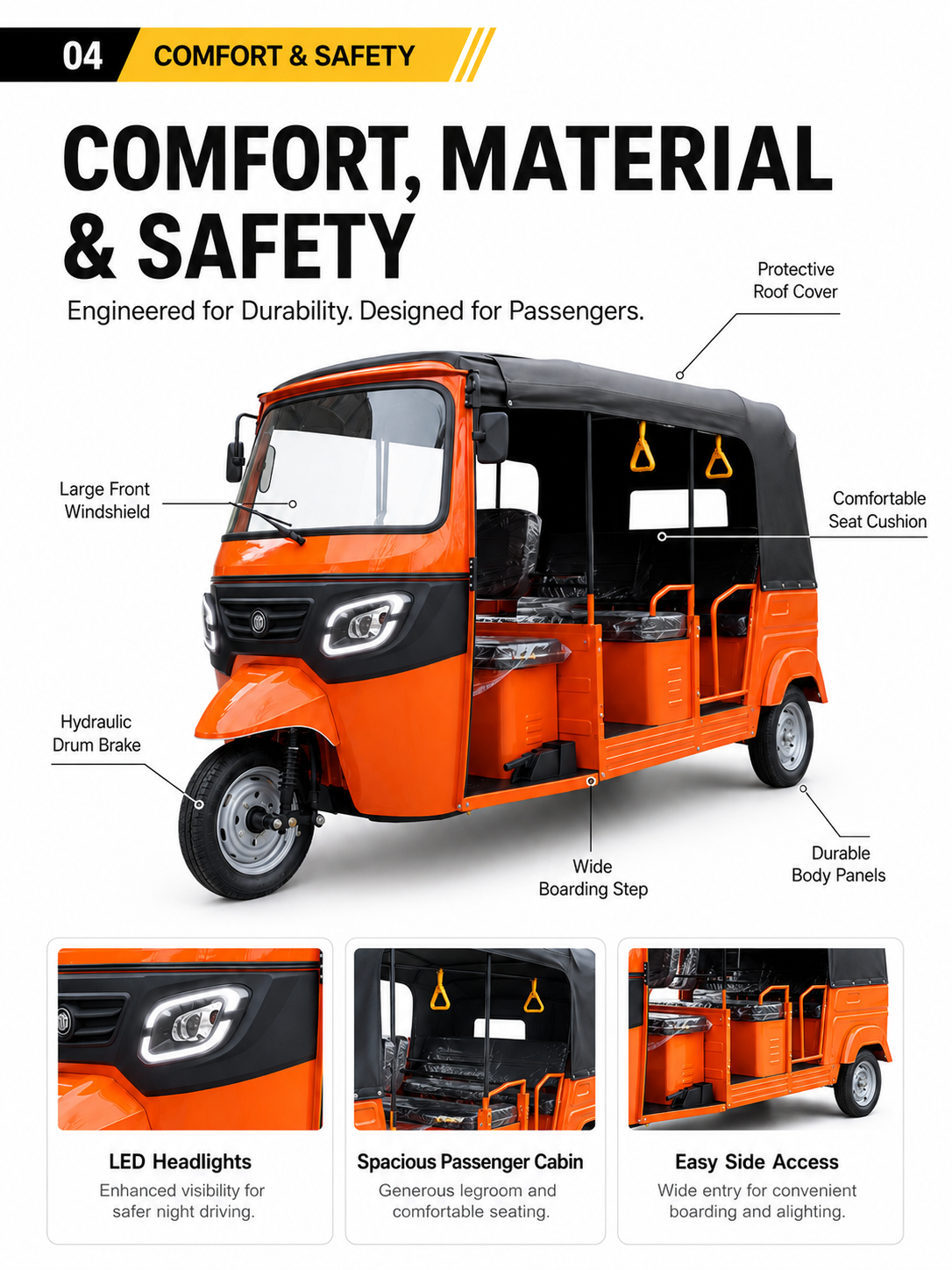

Key Features
- Forward-facing double-row seating
- Hydraulic drum braking system
- Independent suspension
- Electronic gear shifting
- Lithium-ion battery configuration

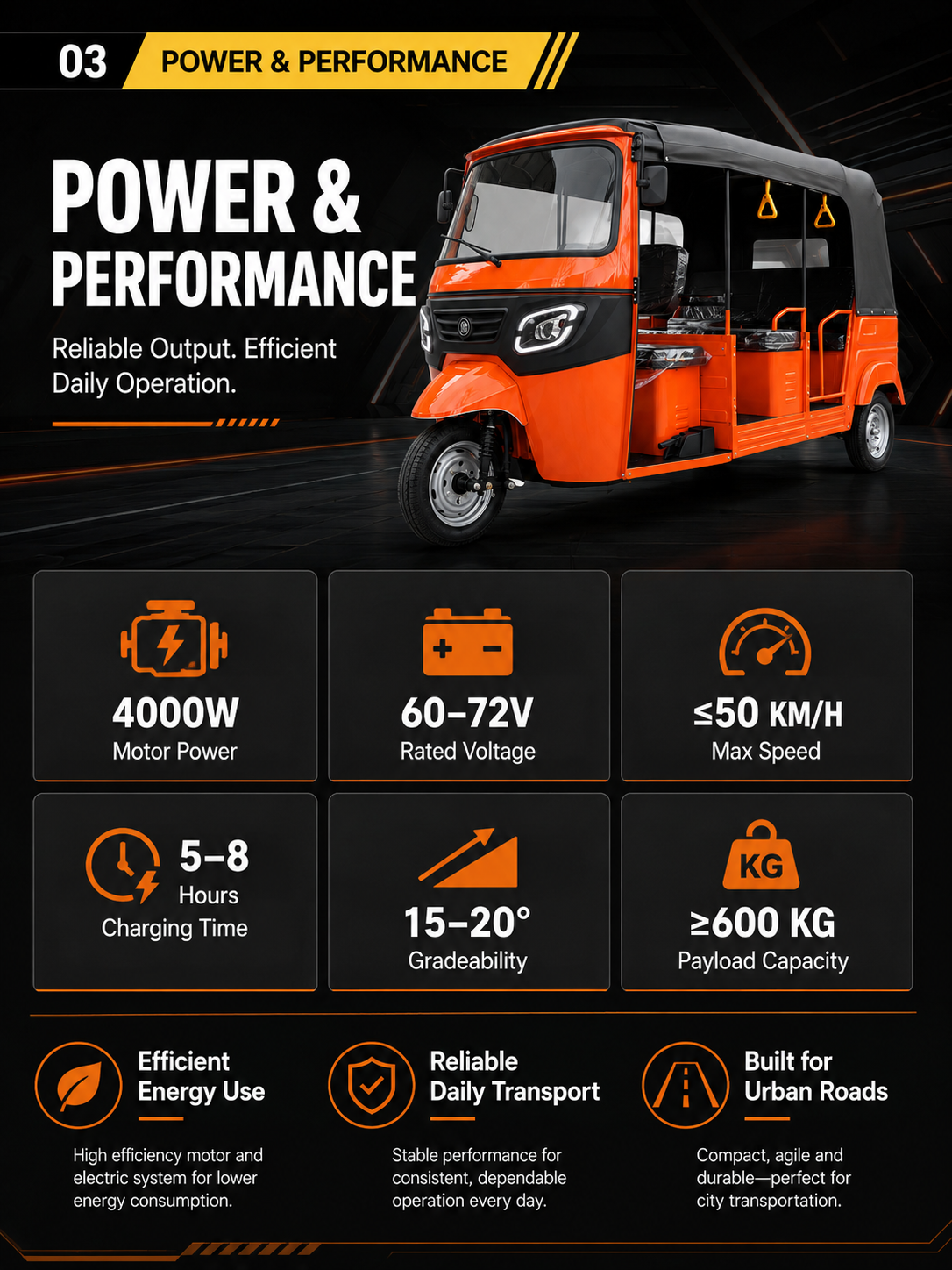

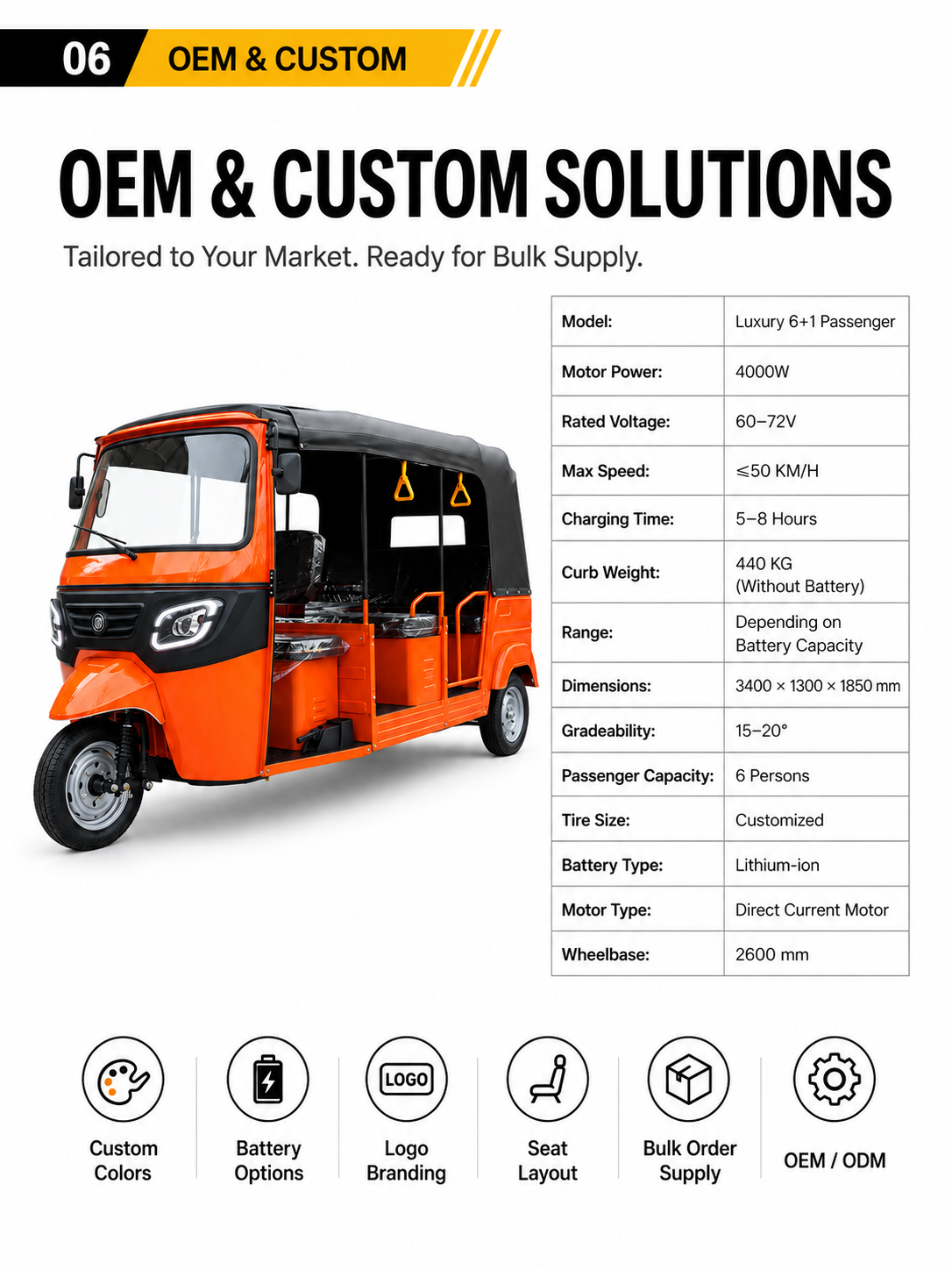

Technical Specifications
| Model | Forward-Facing Double-Row Deluxe 6+1 |
| Rated Voltage | 60–72V |
| Motor Power | 4000W |
| Maximum Speed | ≤50 km/h |
| Payload Capacity | ≥600 kg |
| Dimensions (L × W × H) | 3400 × 1300 × 1850 mm |
| Curb Weight | 440 kg (without battery) |
| Passenger Capacity | 6 persons |
| Charging Time | 5–8 hours |
| Gradeability | 15–20° |
| Battery Type | Lithium-ion |
| Motor Type | Direct current motor |
| Gear System | Electronic shifting |
| Brakes | Hydraulic drum brake |
| Suspension | Independent front suspension; independent rear suspension |
| Wheelbase | 2600 mm |
| Range | Depends on battery configuration |
Product Details
