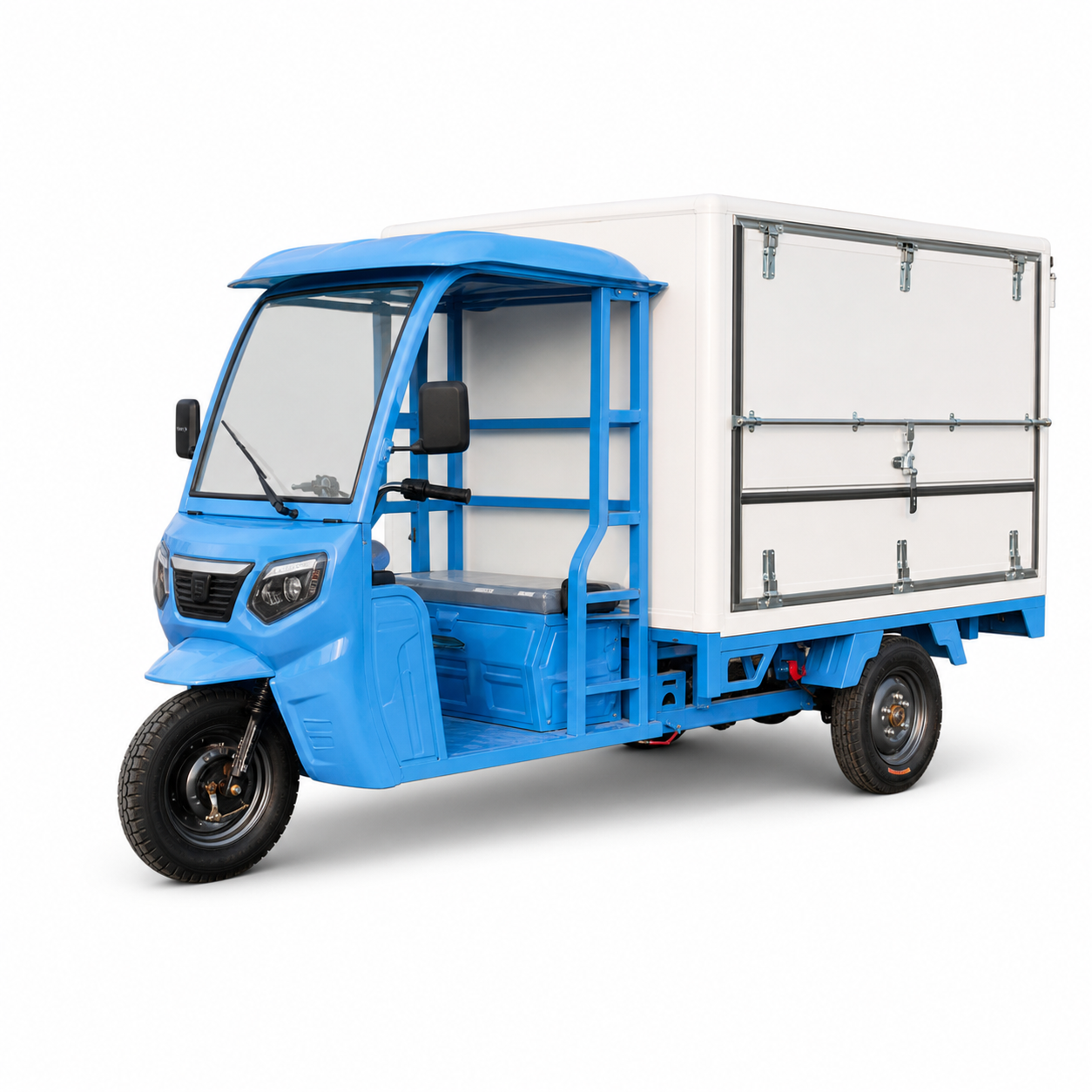

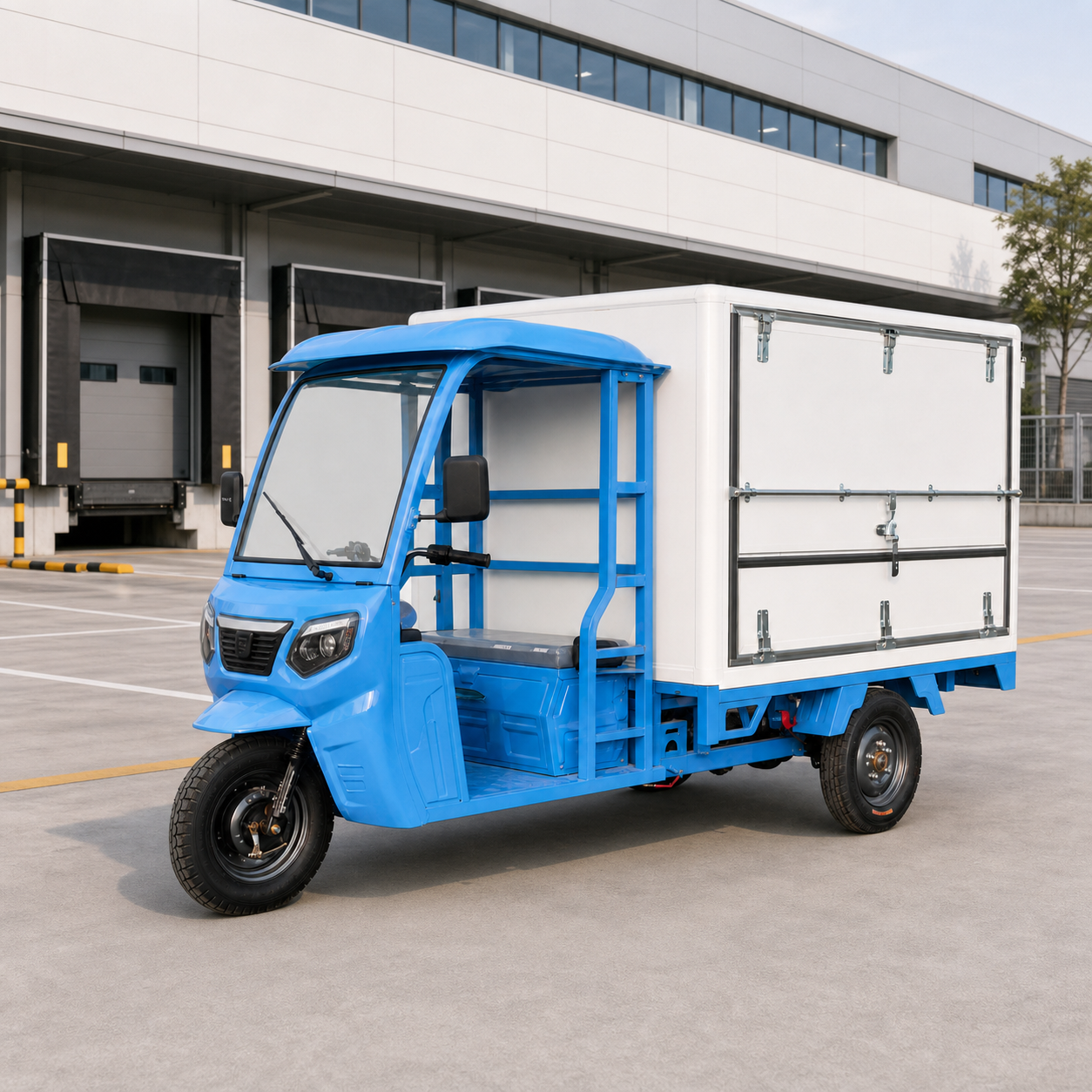

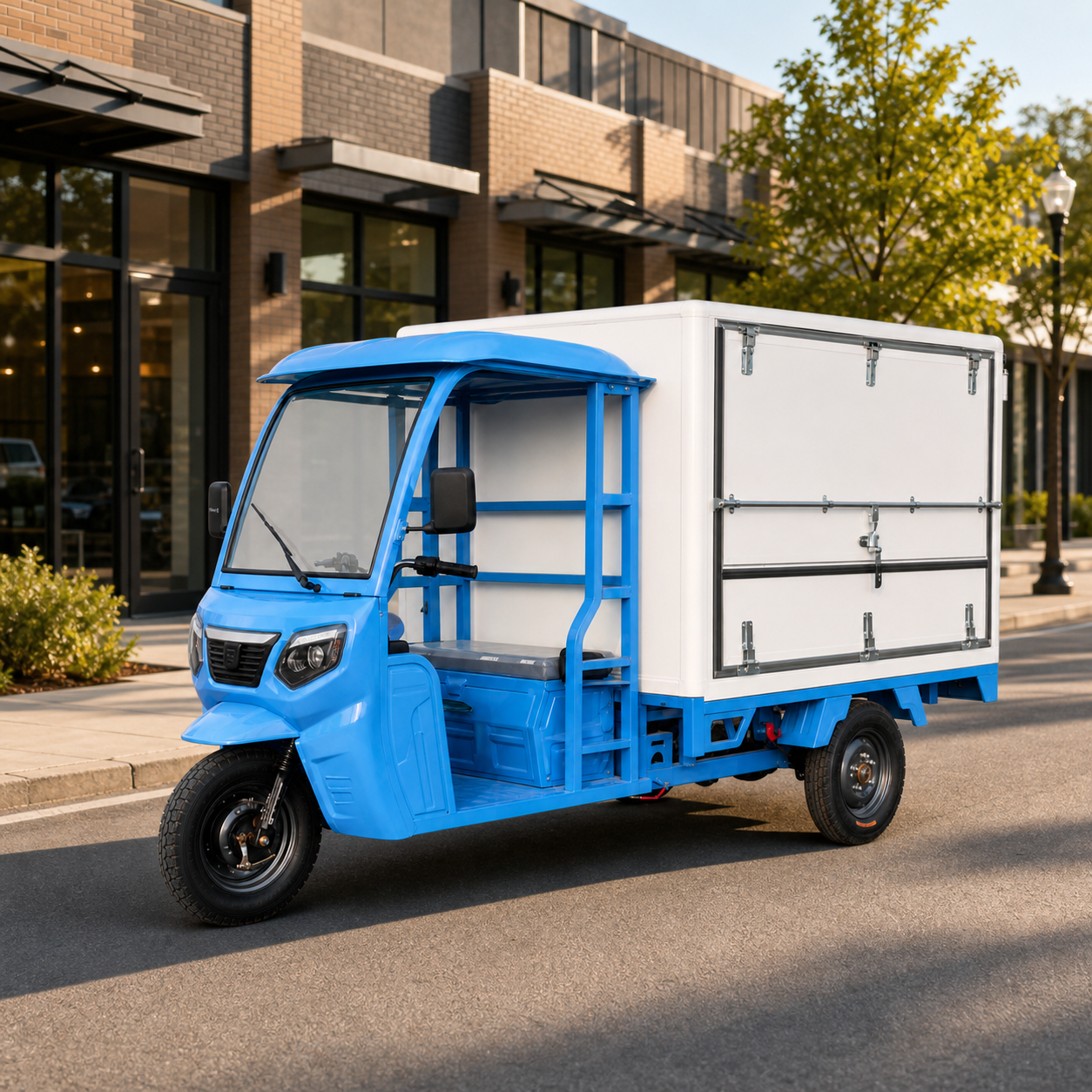

Enclosed-Box Electric Cargo Tricycle
Enclosed-Box Cargo Tricycle · 2000W · 60–72V

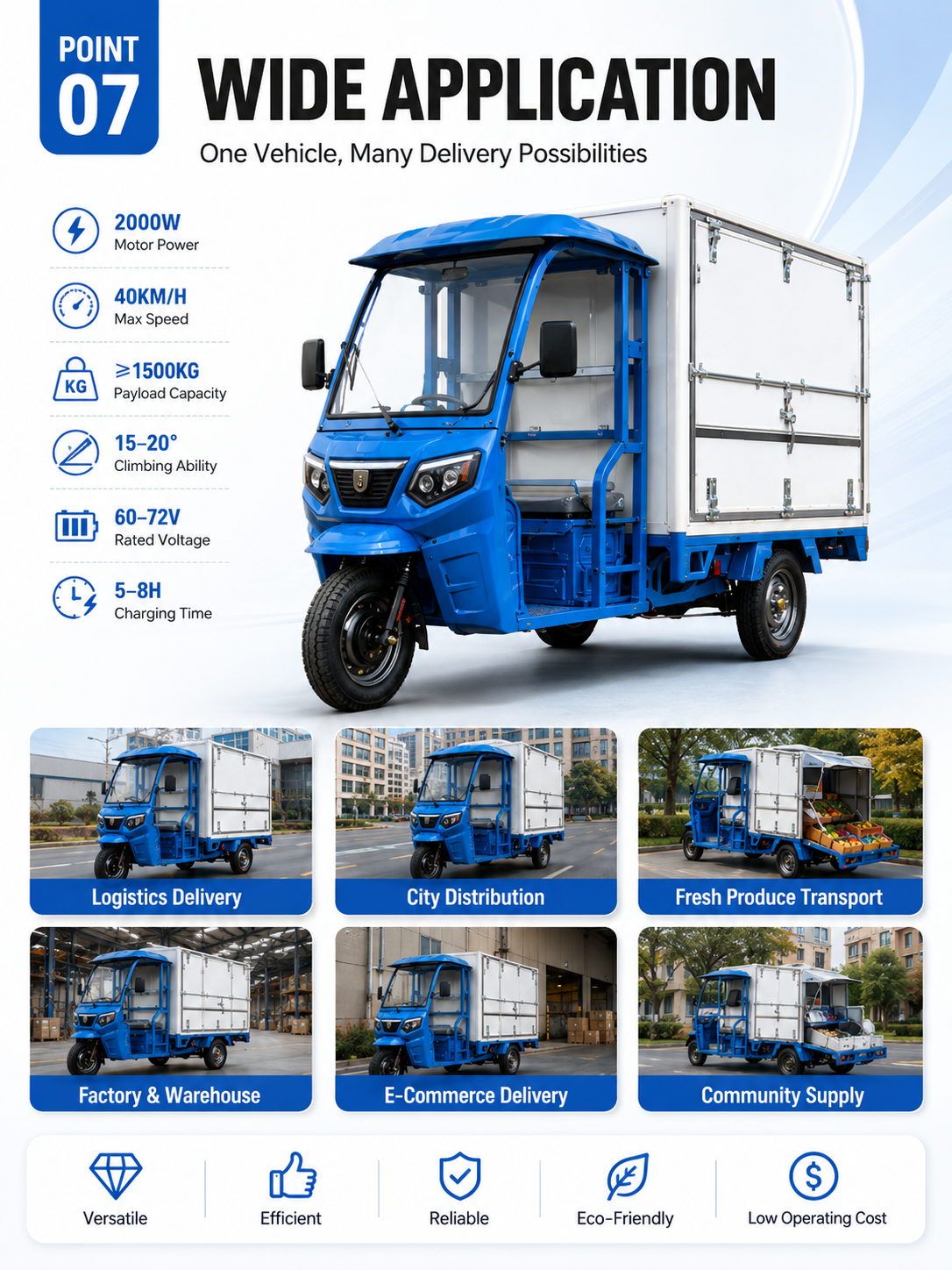

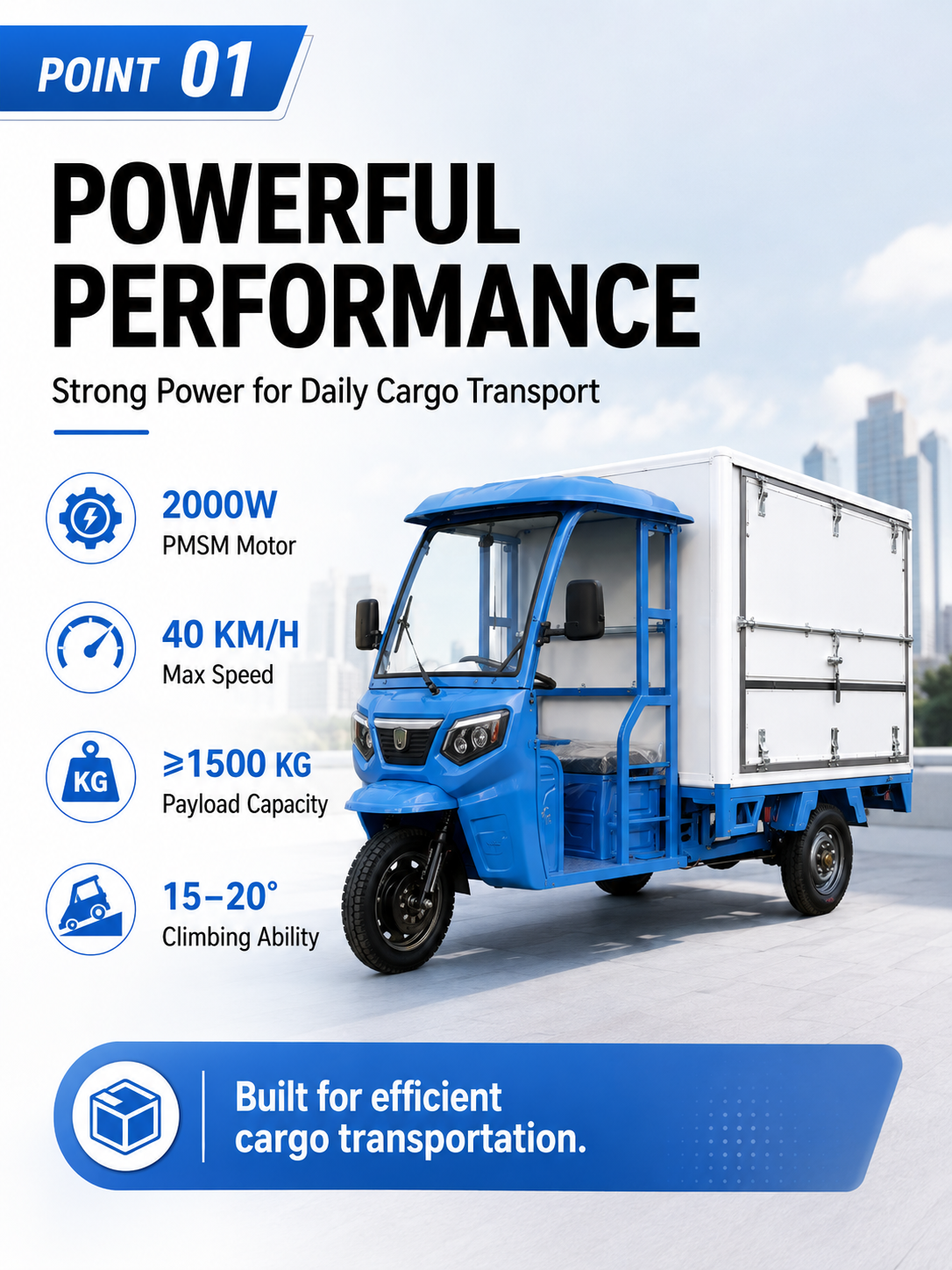

An enclosed-box electric cargo tricycle with a 2000W PMSM motor, 1500 kg-class payload, and protected 1900 × 1350 mm cargo space for delivery work.
Product Overview
An enclosed-box electric cargo tricycle with a 2000W PMSM motor, 1500 kg-class payload, and protected 1900 × 1350 mm cargo space for delivery work.
Key Features

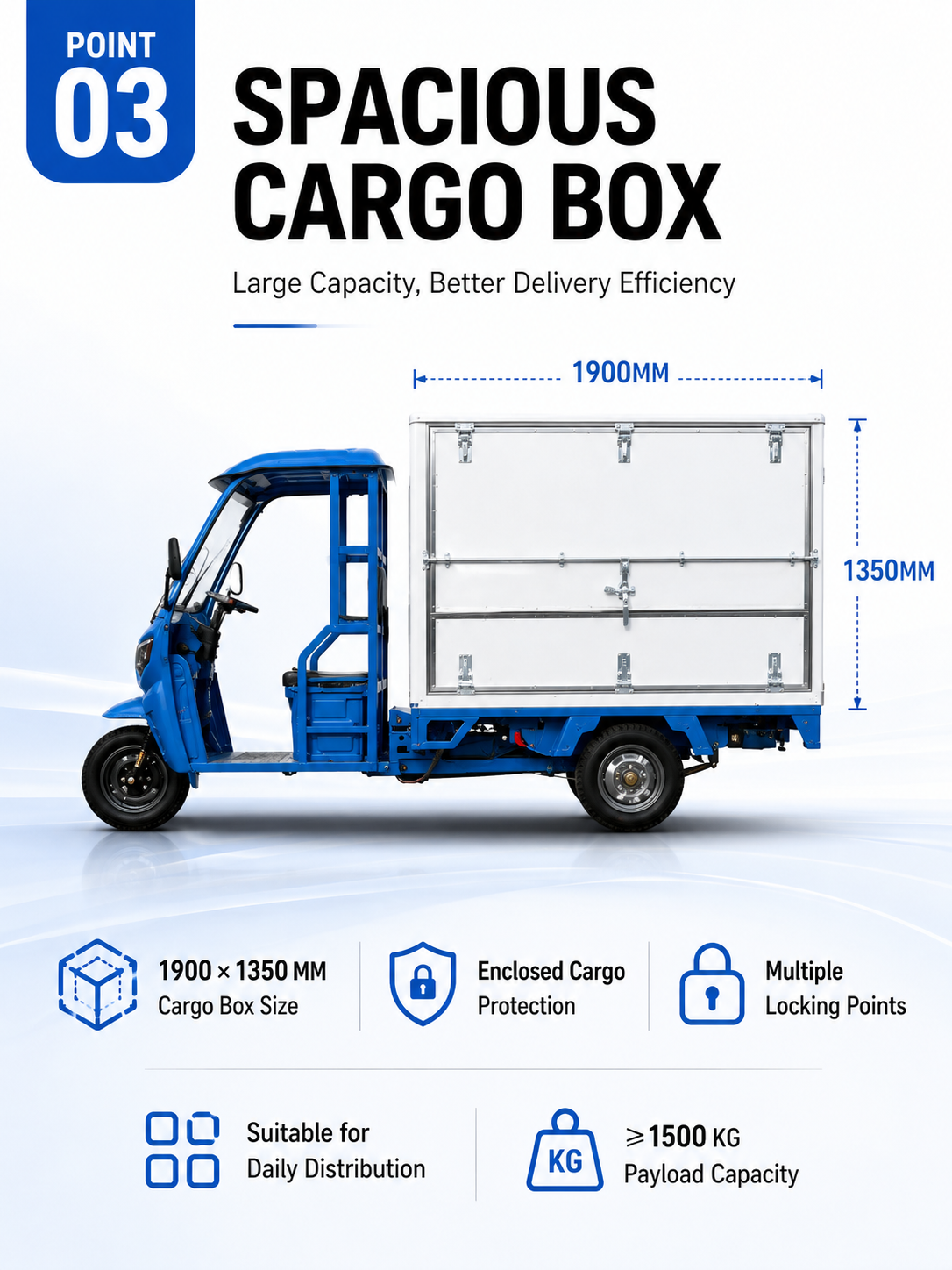

- 1900 × 1350 mm enclosed cargo box
- Mechanical gear shifting
- Mechanical or optional oil drum brakes
- Integral rear axle
- Lead-acid or lithium battery options
Technical Specifications
| Model | Enclosed-Box Cargo Tricycle |

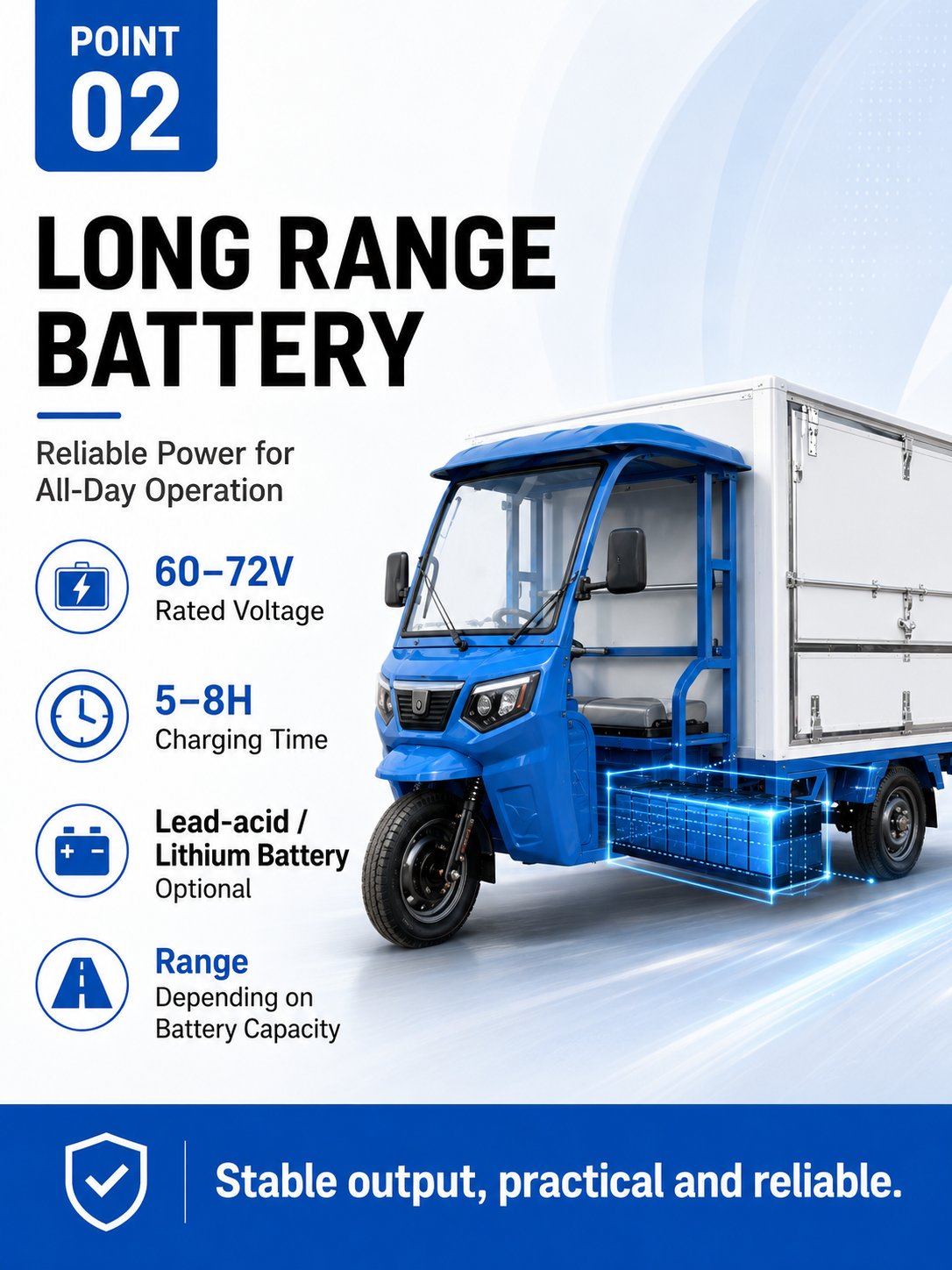

| Rated Voltage | 60–72V |
| Motor Power | 2000W |
| Maximum Speed | 40 km/h |
| Payload Capacity | ≥1500 kg |
| Dimensions (L × W × H) | 3450 × 1500 × 1900 mm |
| Curb Weight | 580 kg (with 72V 50Ah battery) |
| Cargo Carrier Size | 1900 × 1350 mm |
| Charging Time | 5–8 hours |
| Climbing Ability | 15–20° |
| Battery Type | Lead-acid / lithium (optional) |
| Motor Type | PMSM |
| Gear System | Mechanical gear shifting |
| Controller | 24T |

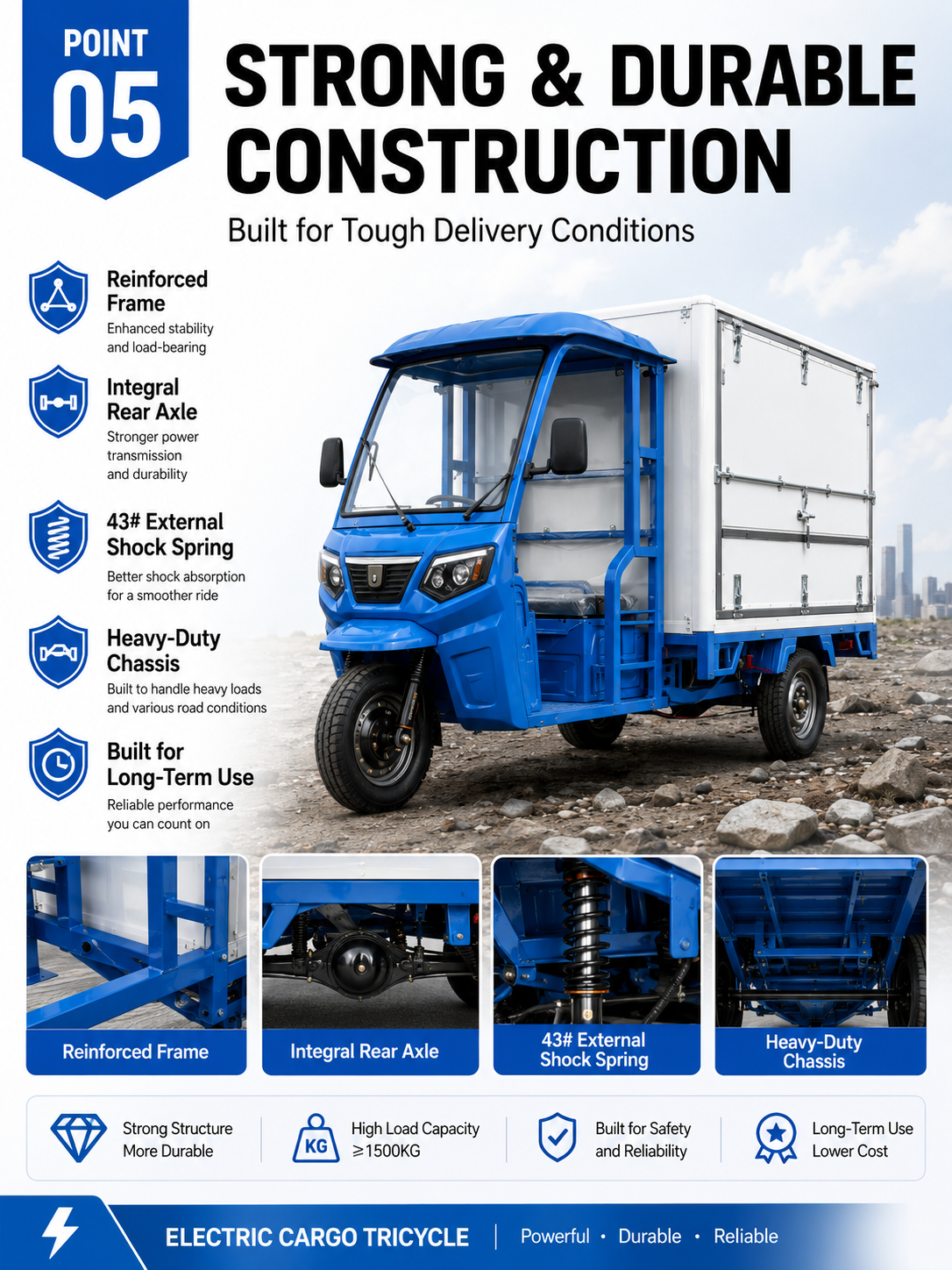

| Rear Axle | Integral rear axle |

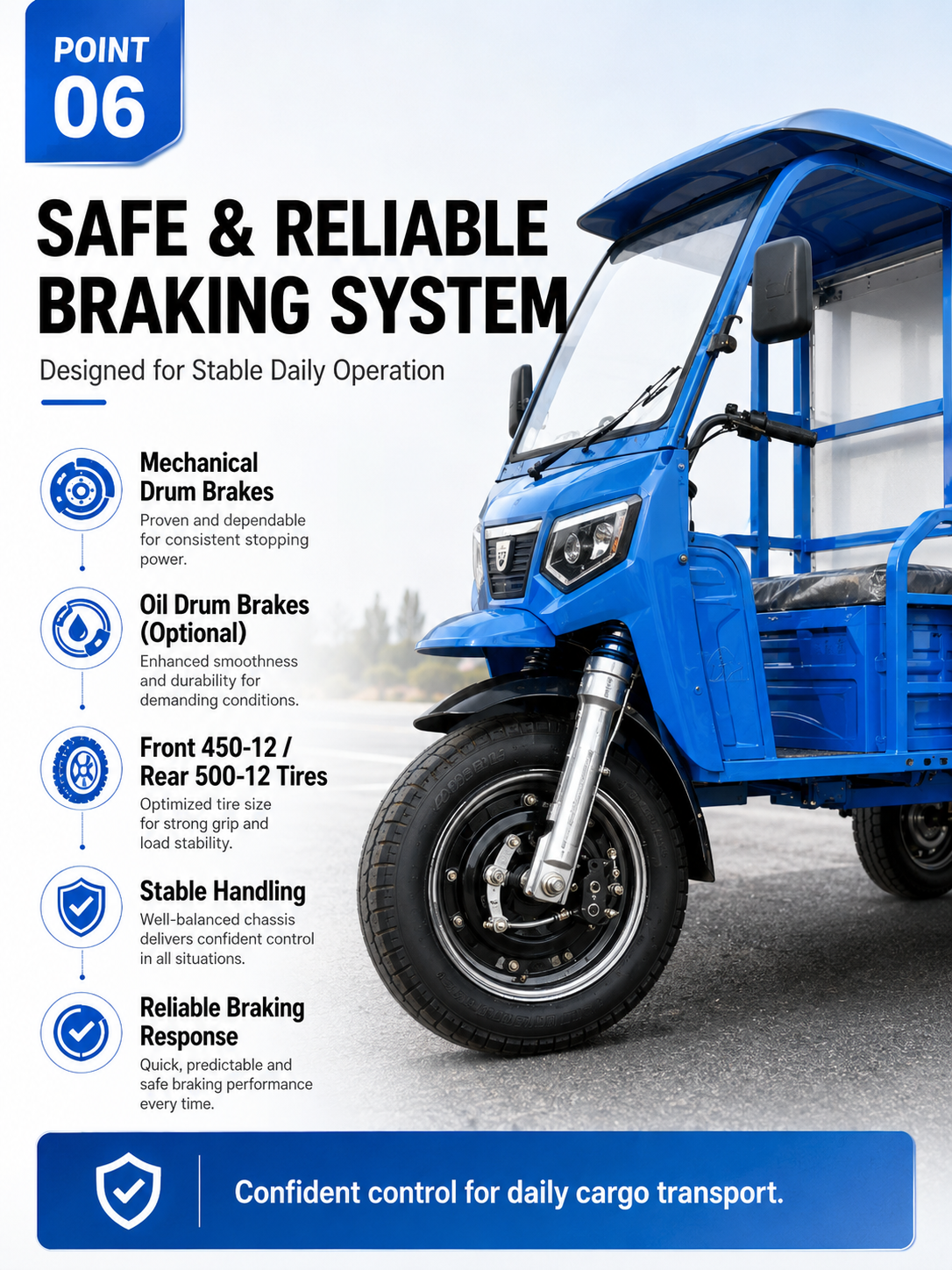

| Brakes | Mechanical drum brakes / oil drum brakes (optional) |
| Wheelbase | 2200 mm |
| Tire Size | Front 4.50-12 / rear 5.00-12 |
| Range | Depends on battery configuration |
Product Details
