TRI-GLOBAL Electric Passenger Tricycle

Product Overview A compact 1.6 m cargo loader with a simple canopy, 1500W PMSM motor, and 500 kg payload for local delivery, farming, and warehouse use. Key Features 1600 × 1100 mm open cargo bed Simple protective canopy Mechanical gear shifting Mechanical or optional oil drum brakes Lead-acid or lithium battery options Technical Specifications Model 1.6M Simple-Canopy Cargo Loader Rated Voltage 48–60V Motor Power 1500W Maximum Speed 35 km/h Payload Capacity 500 kg Dimensions (L × W × H) 3050 × 1200 × 1700 mm Curb Weight 310 kg (without battery) Cargo Carrier Size 1600 × 1100 mm Charging Time 7–9 hours Gradeability 15–20° Battery Type Lead-acid / lithium (optional) Motor Type PMSM Gear System Mechanical gear shifting Controller 24T Front Suspension 43 mm outer tube with external spring and integrated shock absorption Rear Axle Integral rear axle with variable gears Brakes Mechanical drum brakes / oil drum brakes (optional) Wheelbase 2100 mm Tire Size Front 3.50-12 / rear 4.00-12 Range Depends on battery configuration Product Details

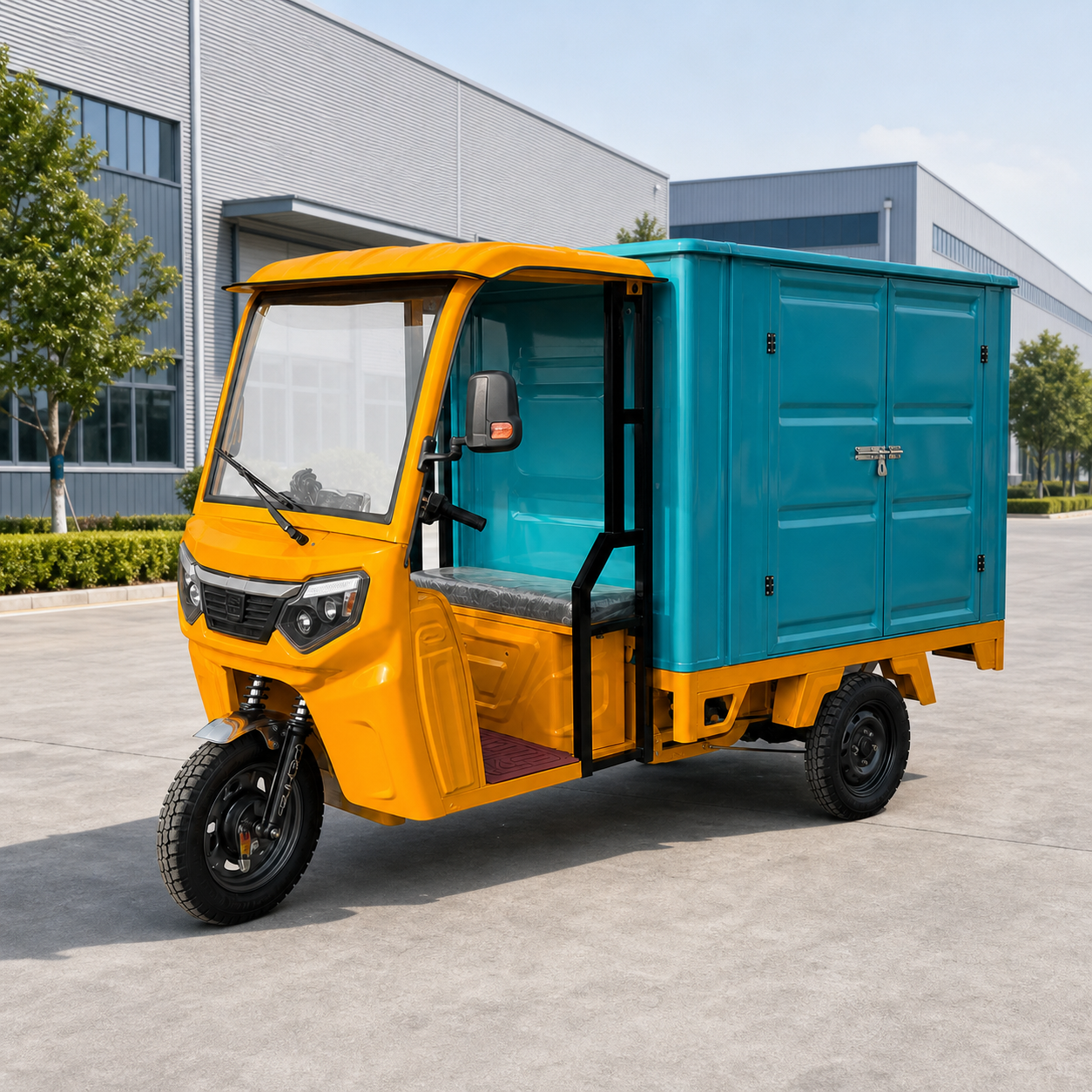

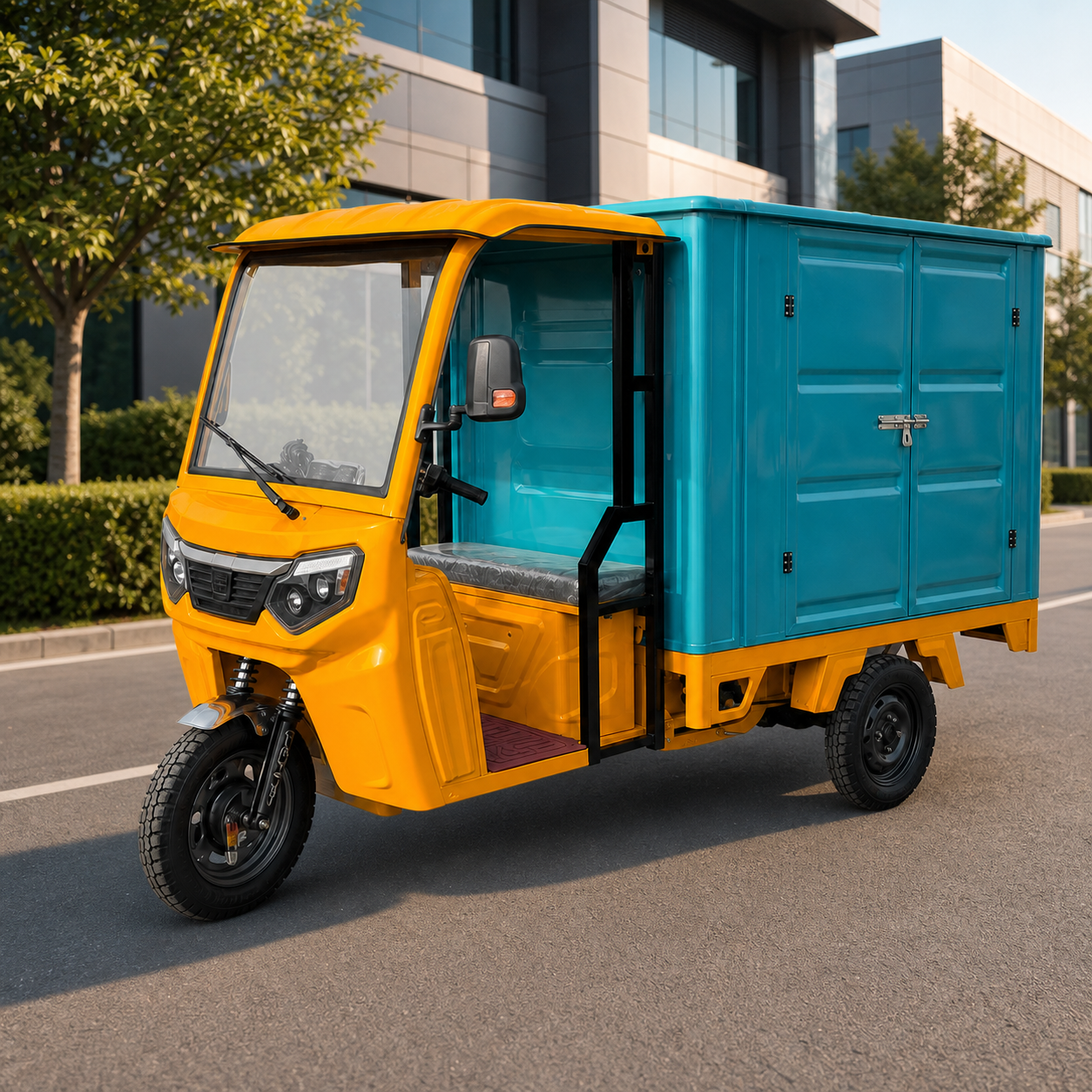

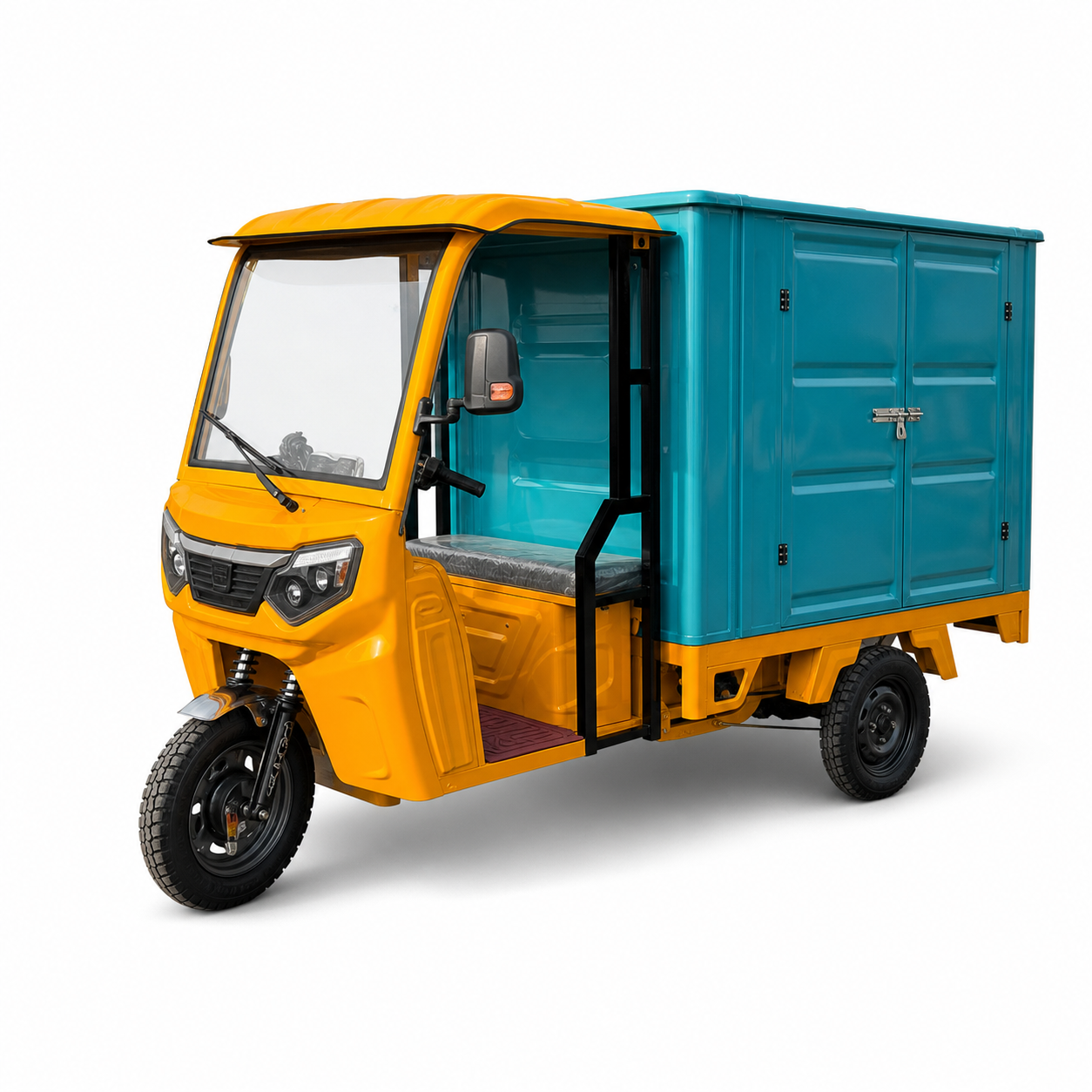

Product Overview An enclosed-box electric cargo tricycle with a 2000W PMSM motor, 1500 kg-class payload, and protected 1900 × 1350 mm cargo space for delivery work. Key Features 1900 × 1350 mm enclosed cargo box Mechanical gear shifting Mechanical or optional oil drum brakes Integral rear axle Lead-acid or lithium battery options Technical Specifications Model Enclosed-Box Cargo Tricycle Rated Voltage 60–72V Motor Power 2000W Maximum Speed 40 km/h Payload Capacity ≥1500 kg Dimensions (L × W × H) 3450 × 1500 × 1900 mm Curb Weight 580 kg (with 72V 50Ah battery) Cargo Carrier Size 1900 × 1350 mm Charging Time 5–8 hours Climbing Ability 15–20° Battery Type Lead-acid / lithium (optional) Motor Type PMSM Gear System Mechanical gear shifting Controller 24T Rear Axle Integral rear axle Brakes Mechanical drum brakes / oil drum brakes (optional) Wheelbase 2200 mm Tire Size Front 4.50-12 / rear 5.00-12 Range Depends on battery configuration Product Details

Product Overview A long-bed electric cargo tricycle with a 2200 × 1300 mm carrier, 2500W motor, and 2000 kg load capacity for demanding transport work. Key Features 2200 × 1300 mm open cargo bed Hydraulic drum braking system Mechanical gear shifting Integral rear axle Lithium-ion battery configuration Technical Specifications Model Loader 2.2M Rated Voltage 60–72V Motor Power 2500W Maximum Speed 40 km/h Payload Capacity 2000 kg Dimensions (L × W × H) 3750 × 1350 × 1950 mm Curb Weight 556 kg without battery; 653.6 kg with 200A battery Cargo Carrier Size 2200 × 1300 mm Charging Time 5–8 hours Climbing Ability 15–20° Battery Type Lithium-ion Motor Type Direct current motor Gear System Mechanical gear shifting Controller 36T Front Suspension 50 mm shock absorber Rear Axle Integral rear axle Brakes Hydraulic drum brake Wheelbase 2300 mm Tire Size Front 5.00-12 / rear 5.00-12 Range Depends on battery configuration Product Details
