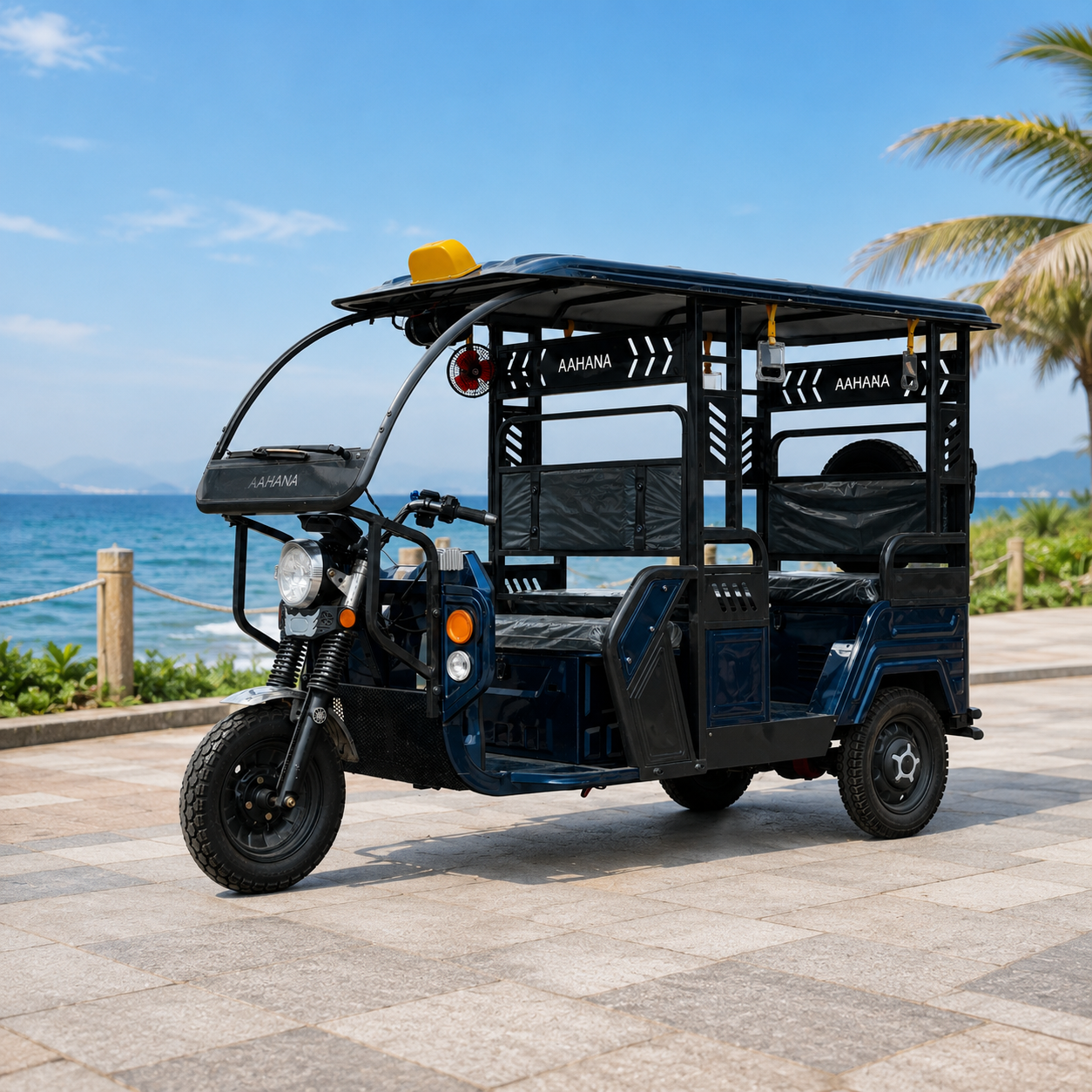

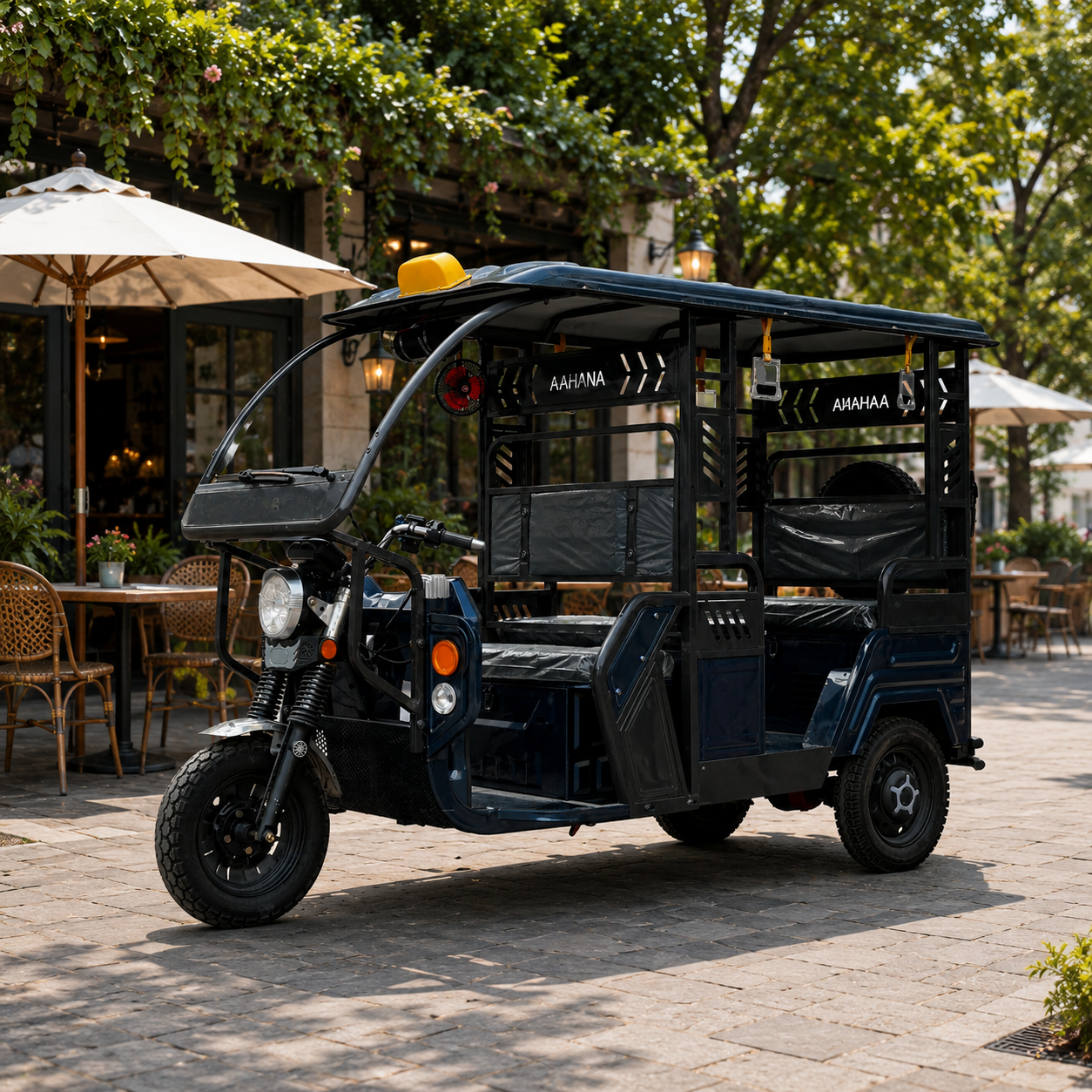

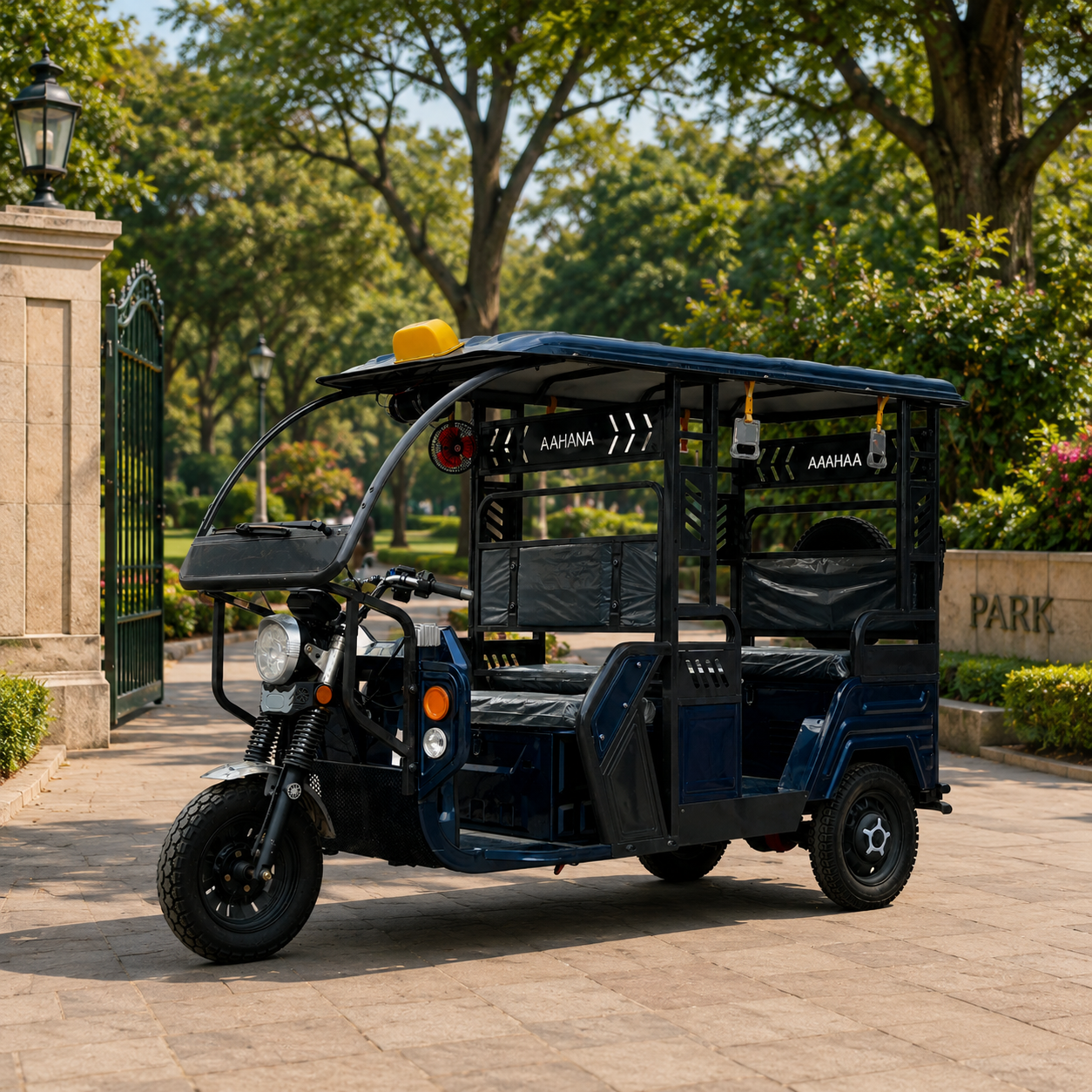

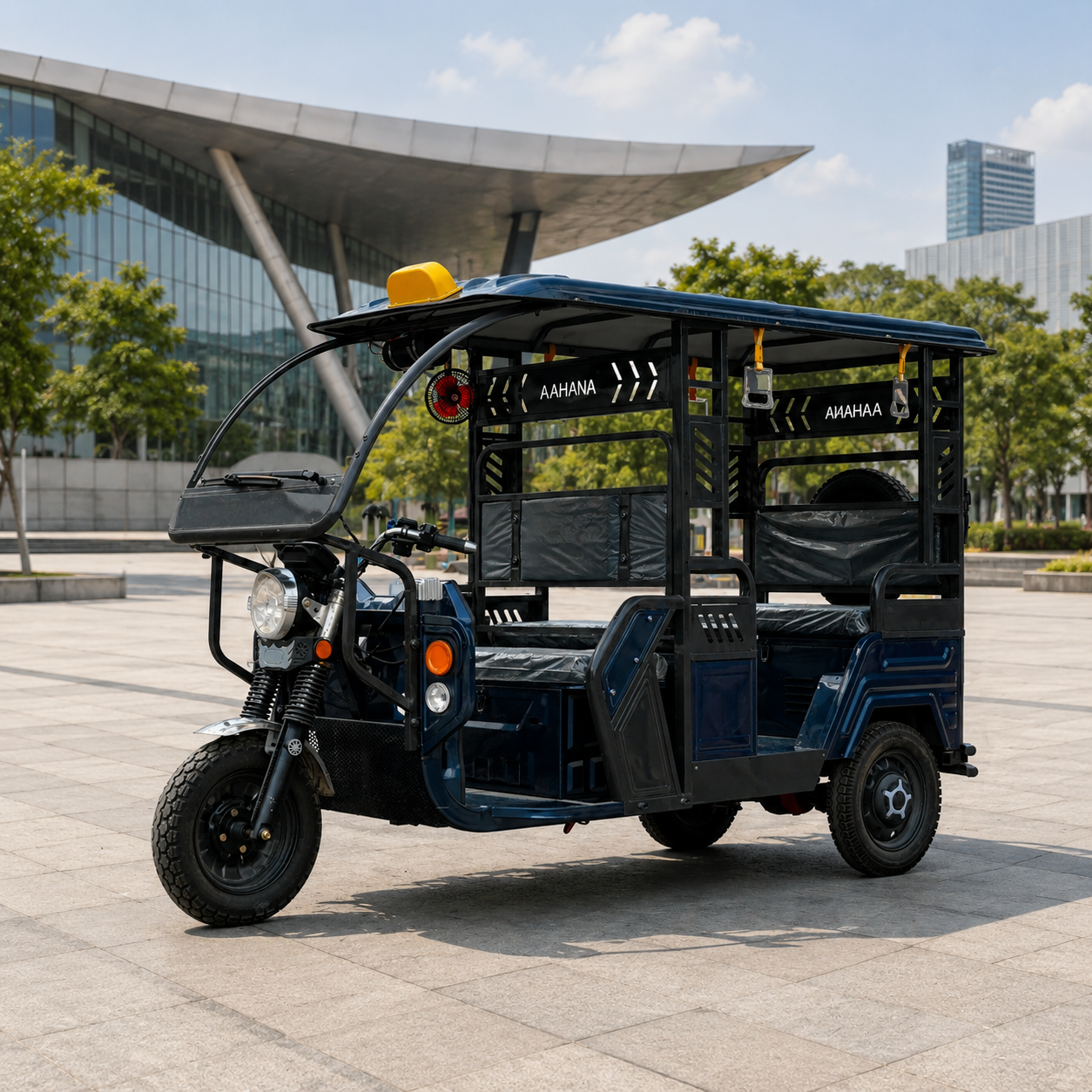

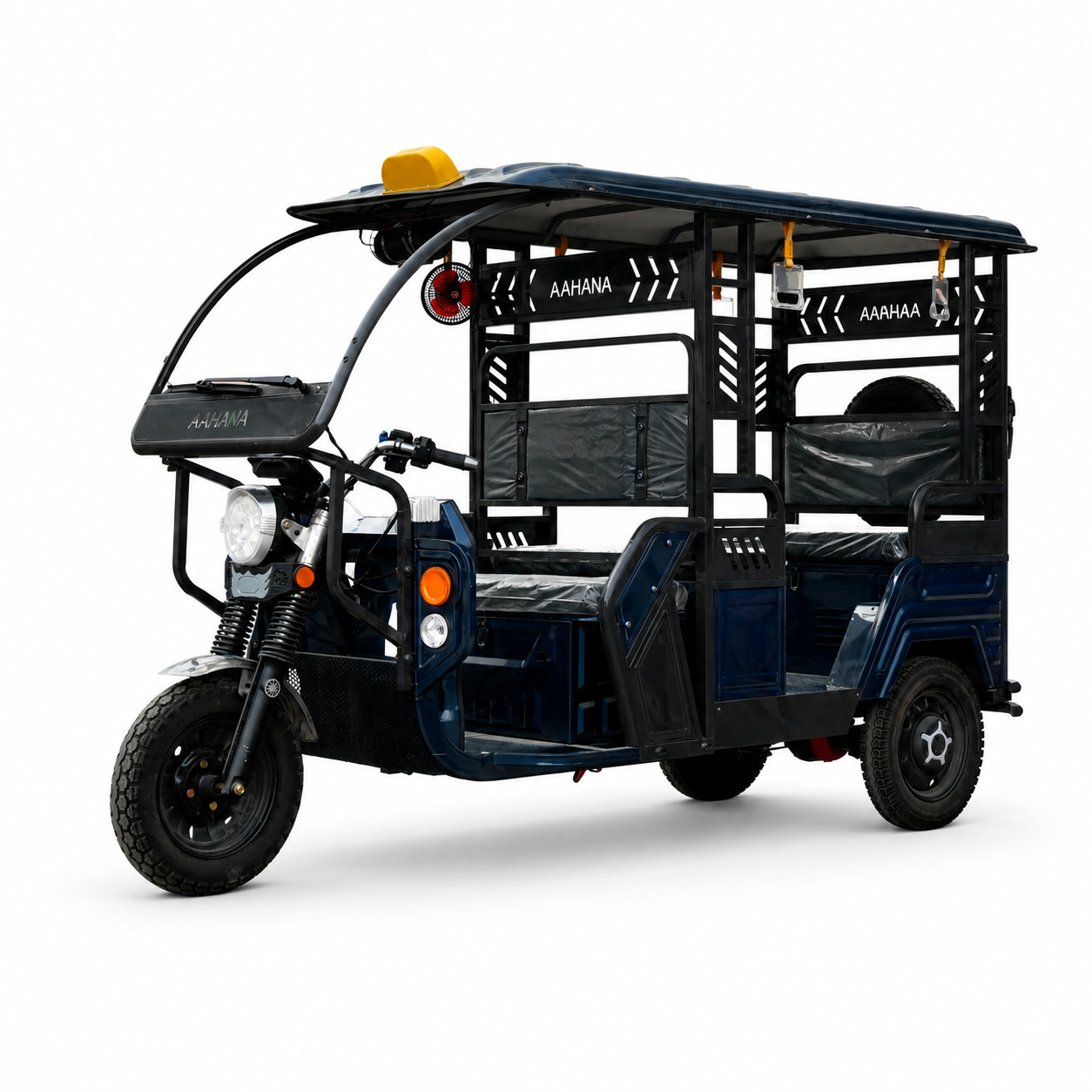

L3 Deluxe Electric Passenger Tuk Tuk
L3 DELUXE · 1200W · 48–60V
A lightweight six-passenger electric tuk tuk with a 1200W PMSM motor, open passenger cabin, and flexible lead-acid or lithium battery options.

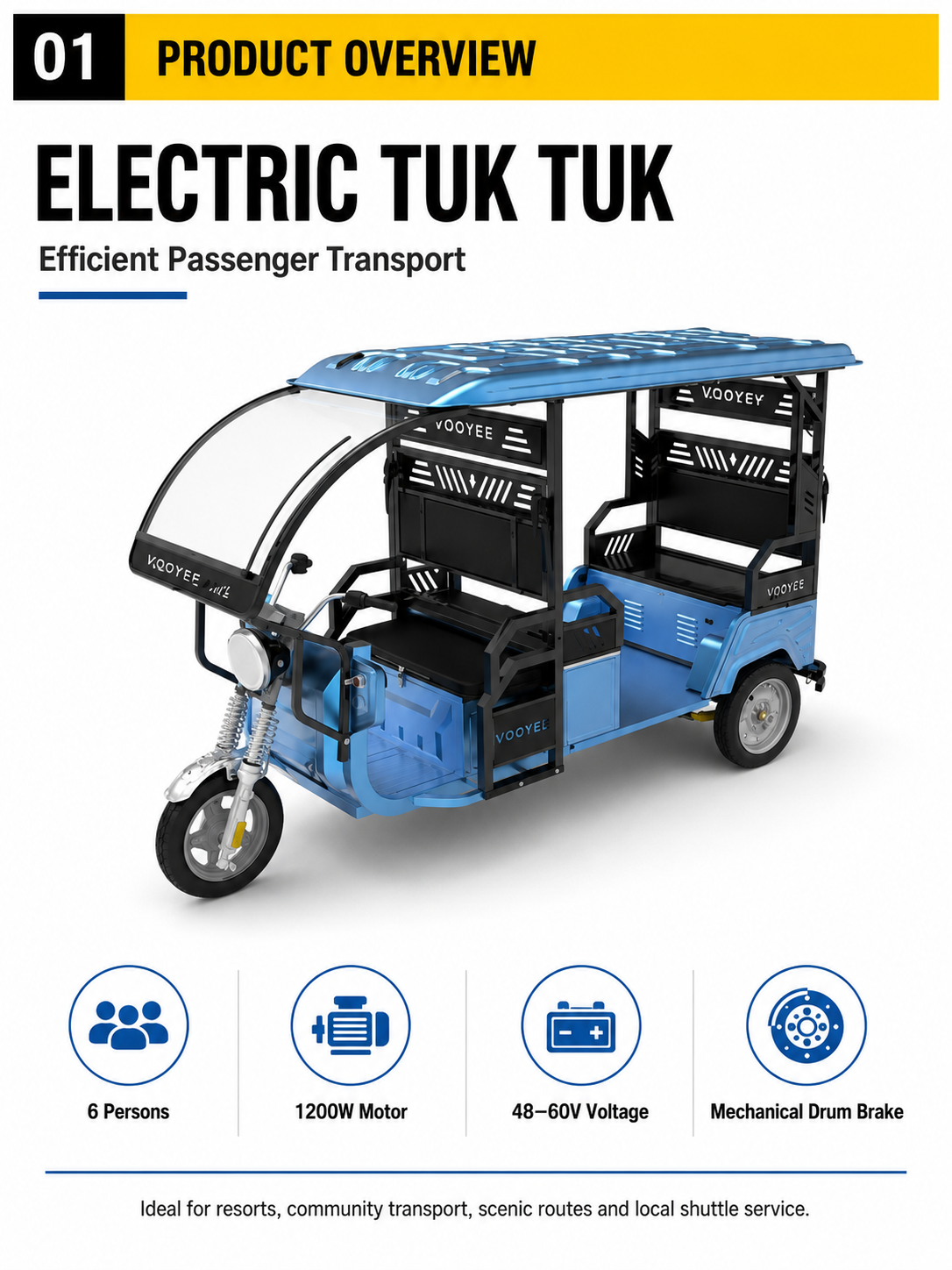

Product Overview
A lightweight six-passenger electric tuk tuk with a 1200W PMSM motor, open passenger cabin, and flexible lead-acid or lithium battery options.

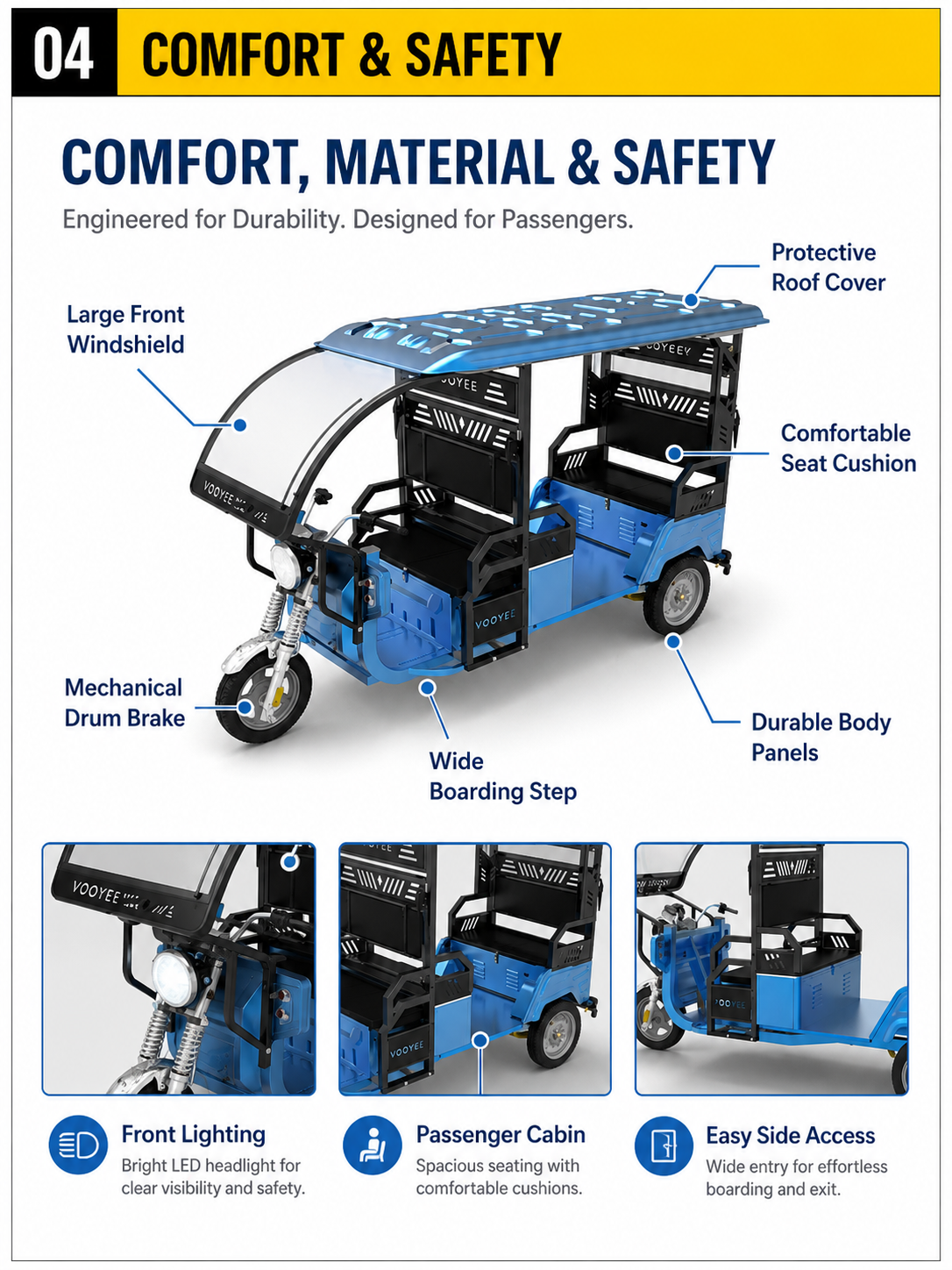

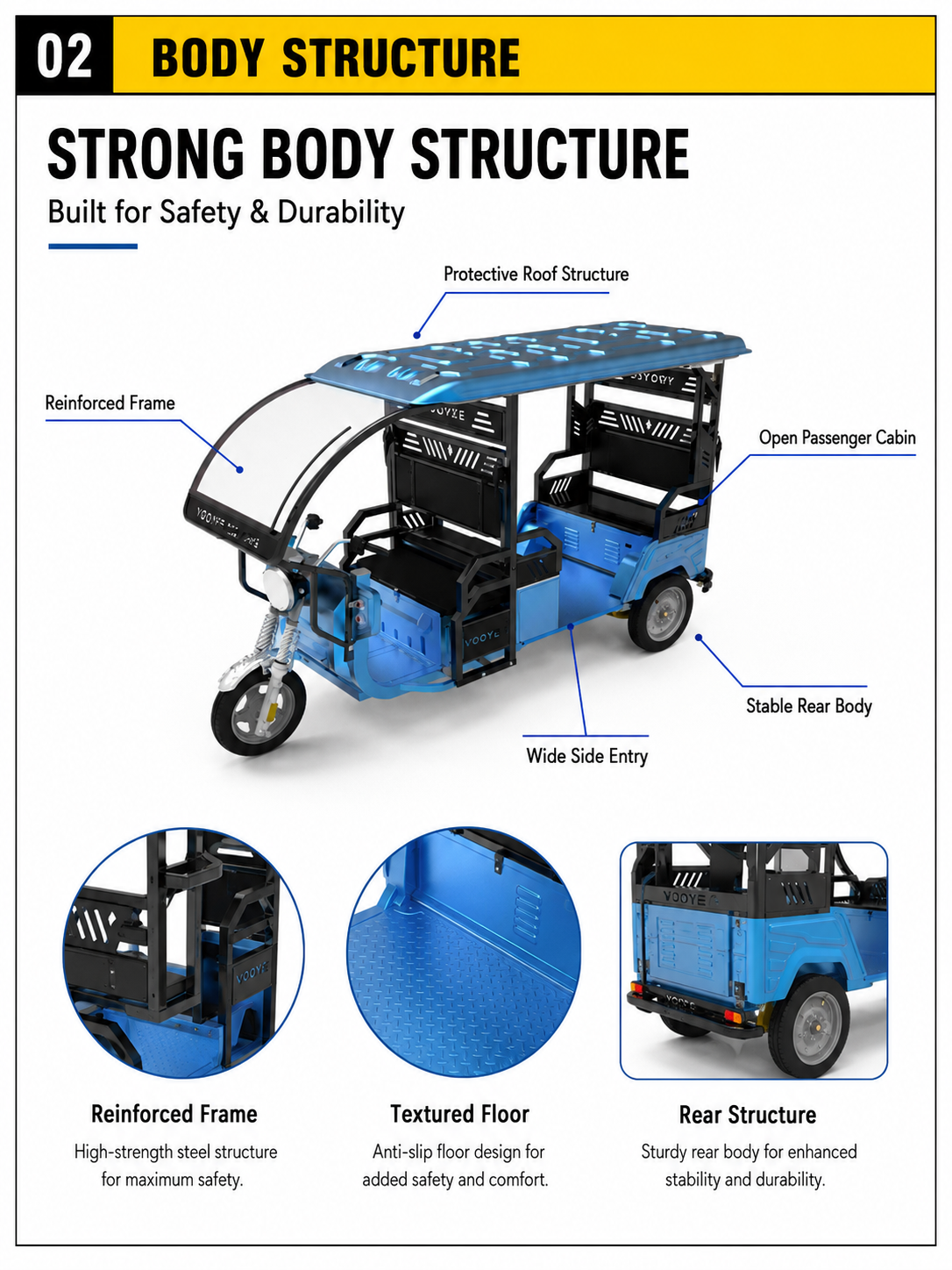

Key Features
- Six-person passenger capacity
- Open passenger cabin
- Electric gear shifting
- Mechanical drum brakes
- Lead-acid or lithium battery options

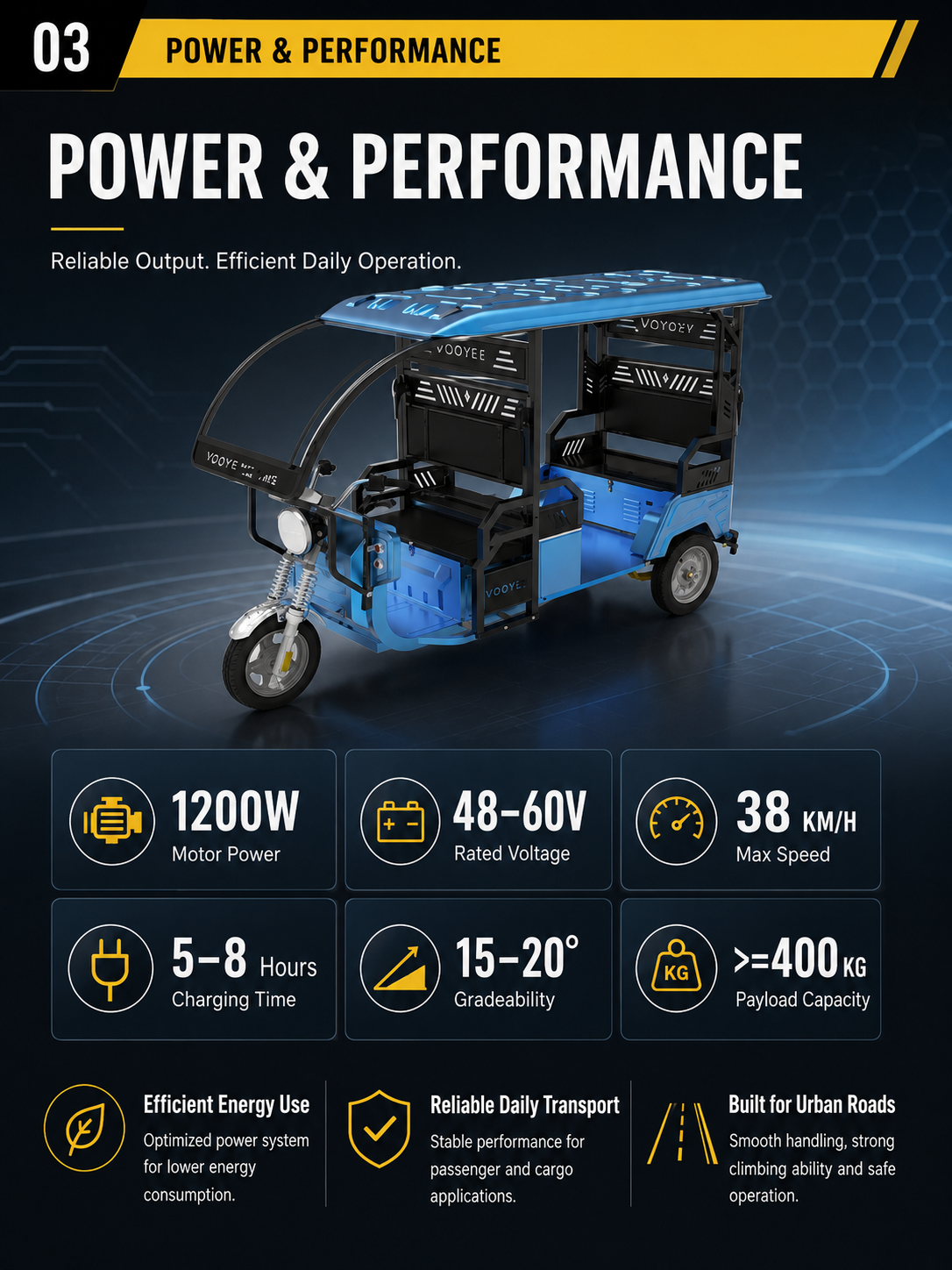

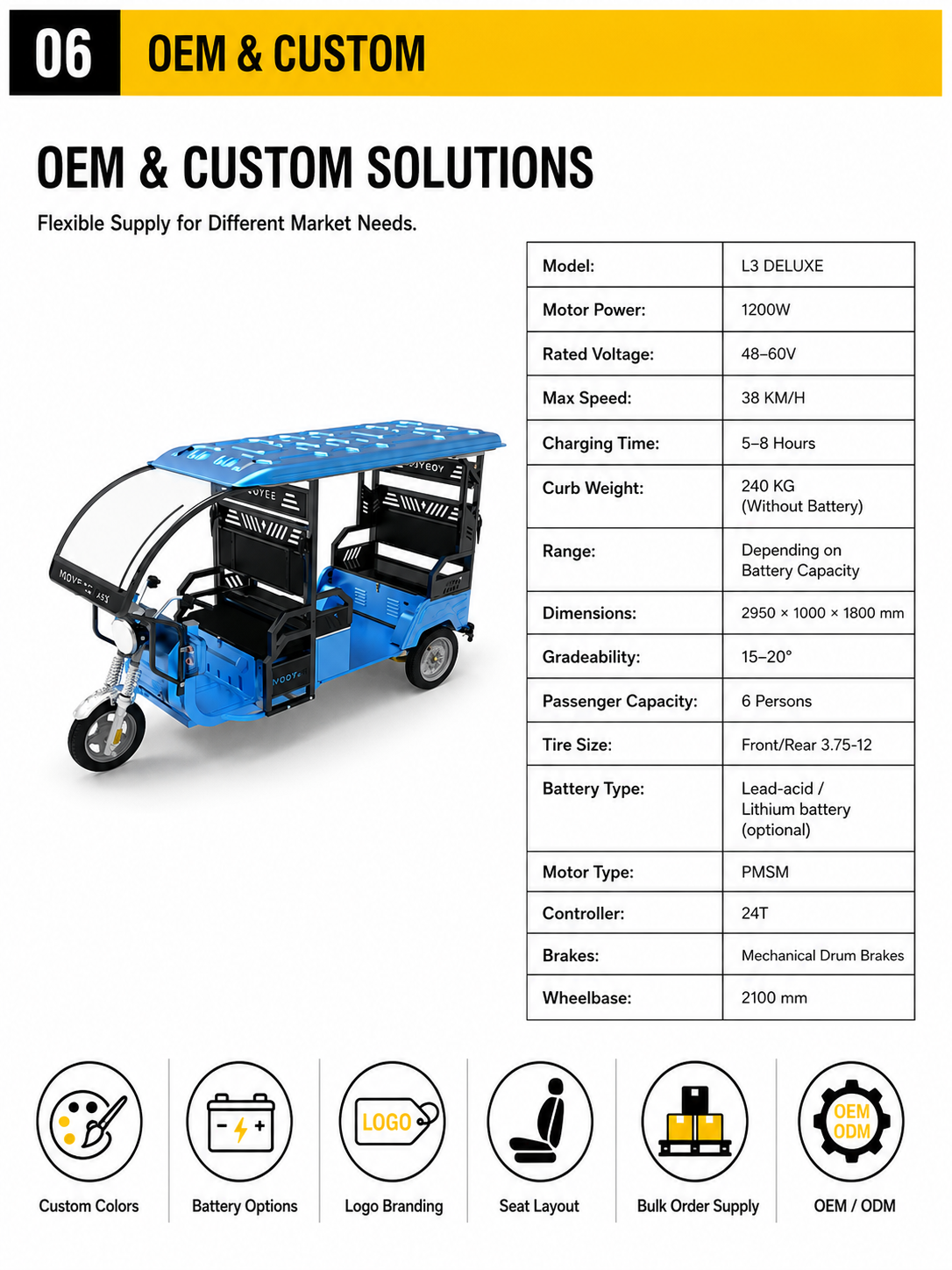

Technical Specifications
| Model | L3 DELUXE |
| Rated Voltage | 48–60V |
| Motor Power | 1200W |
| Maximum Speed | 38 km/h |
| Payload Capacity | ≥400 kg |
| Dimensions (L × W × H) | 2950 × 1000 × 1800 mm |
| Curb Weight | 240 kg (without battery) |
| Passenger Capacity | 6 persons |
| Charging Time | 5–8 hours |
| Gradeability | 15–20° |
| Battery Type | Lead-acid / lithium (optional) |
| Motor Type | PMSM |
| Gearshift Method | Electric gear shifting |
| Controller | 24T |
| Tire Size | Front / rear 3.75-12 |
| Rear Axle | Integral rear axle |
| Brakes | Mechanical drum brakes |
| Wheelbase | 2100 mm |
| 40HQ Loading | 55 units (CKD) |
| Range | Depends on battery configuration |
Product Details
