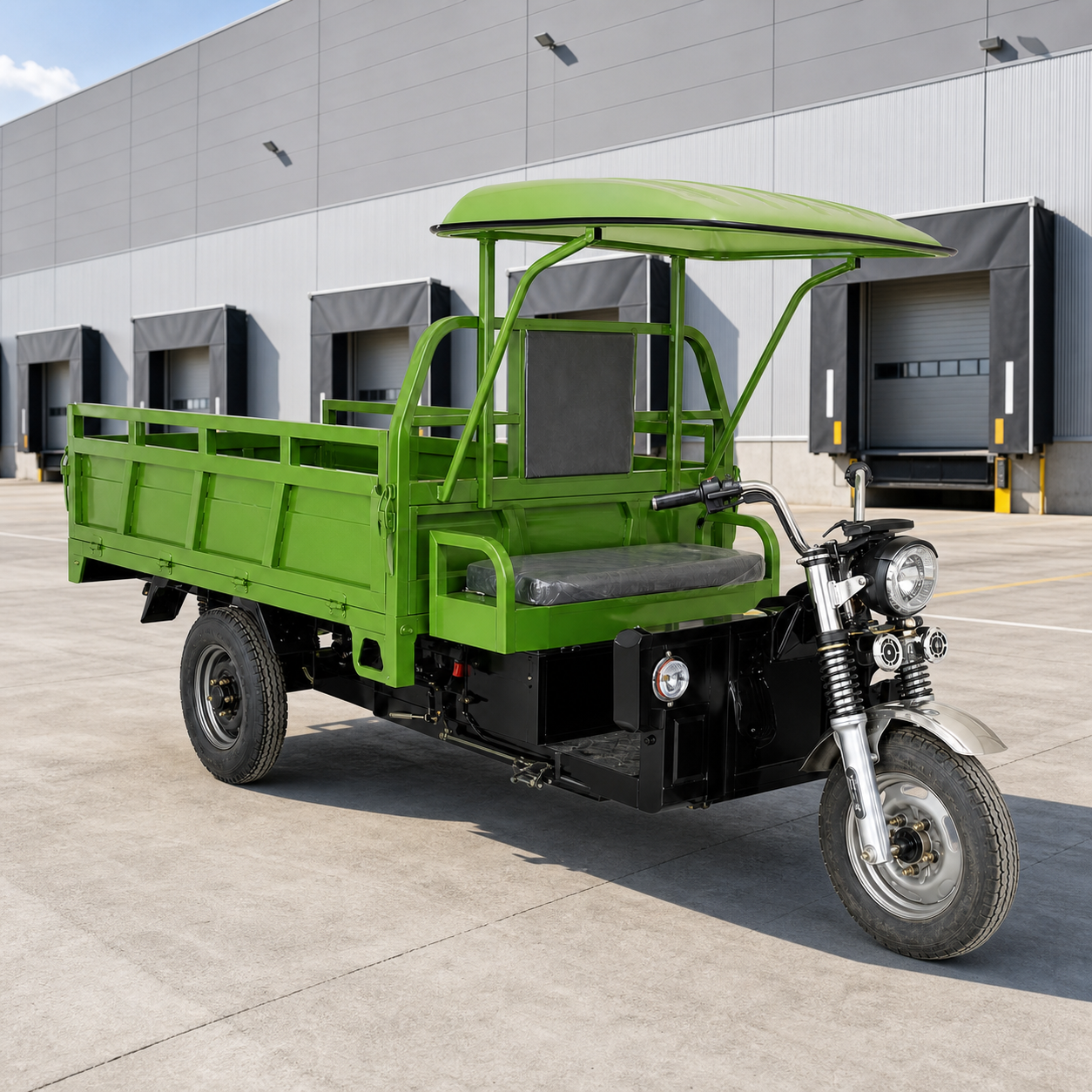

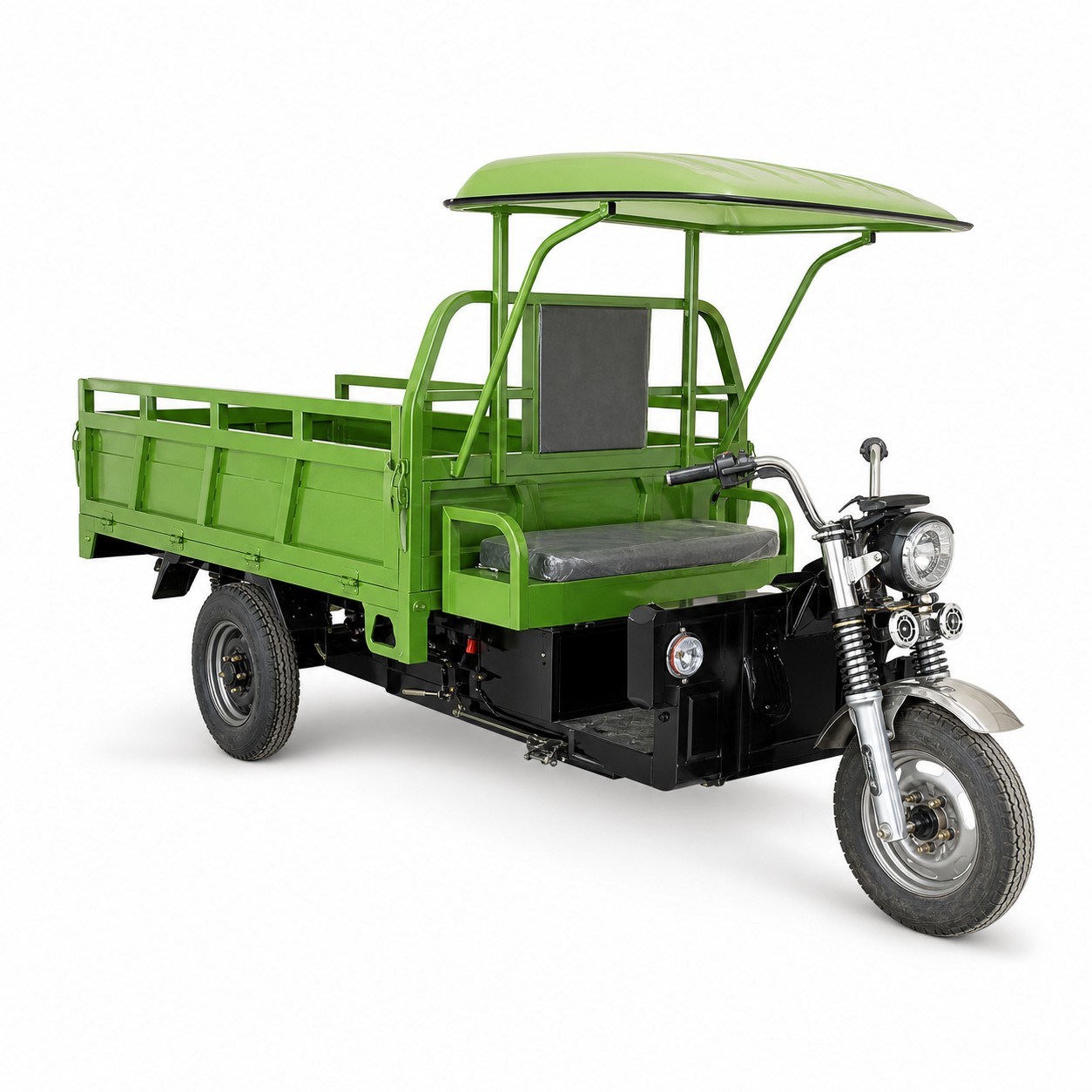

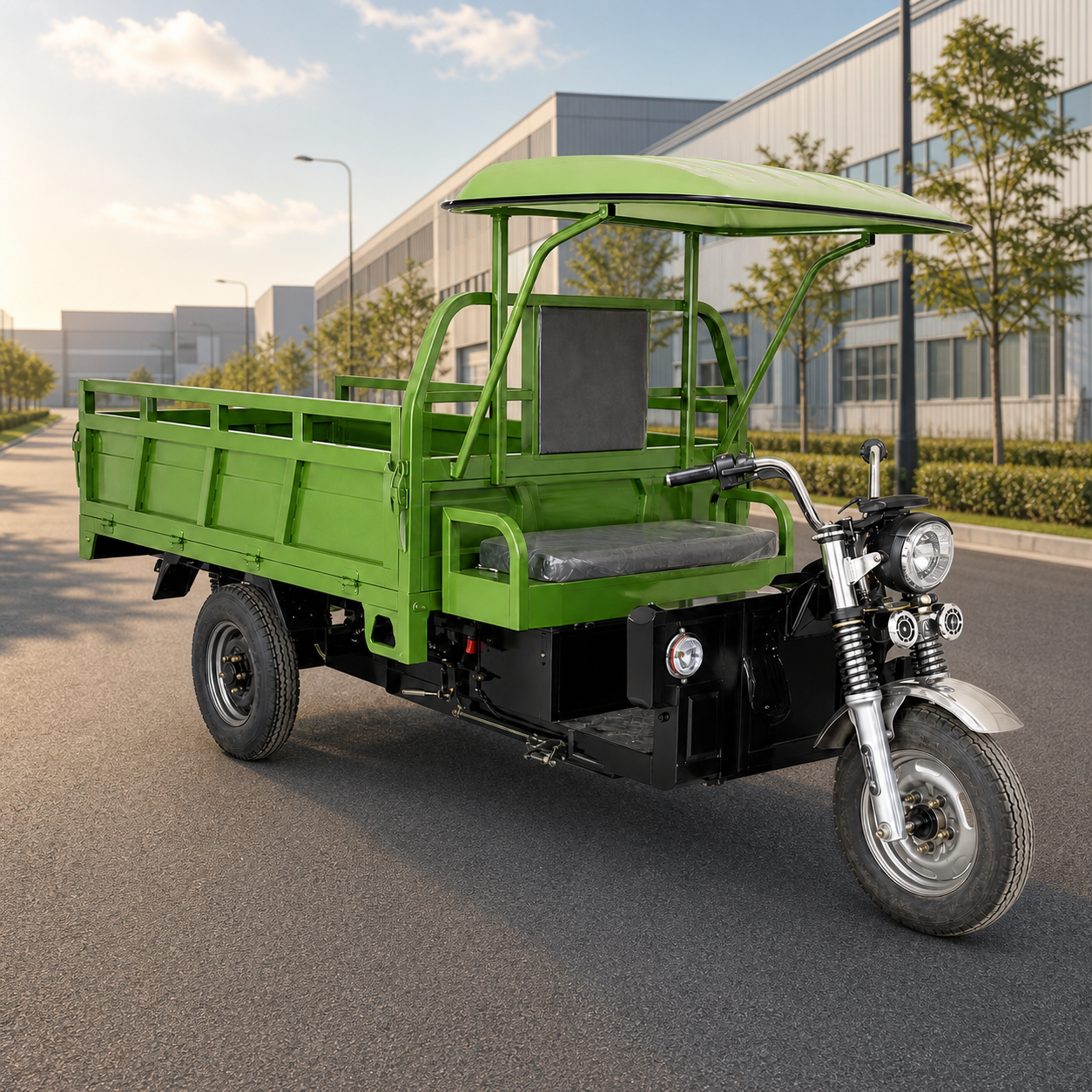

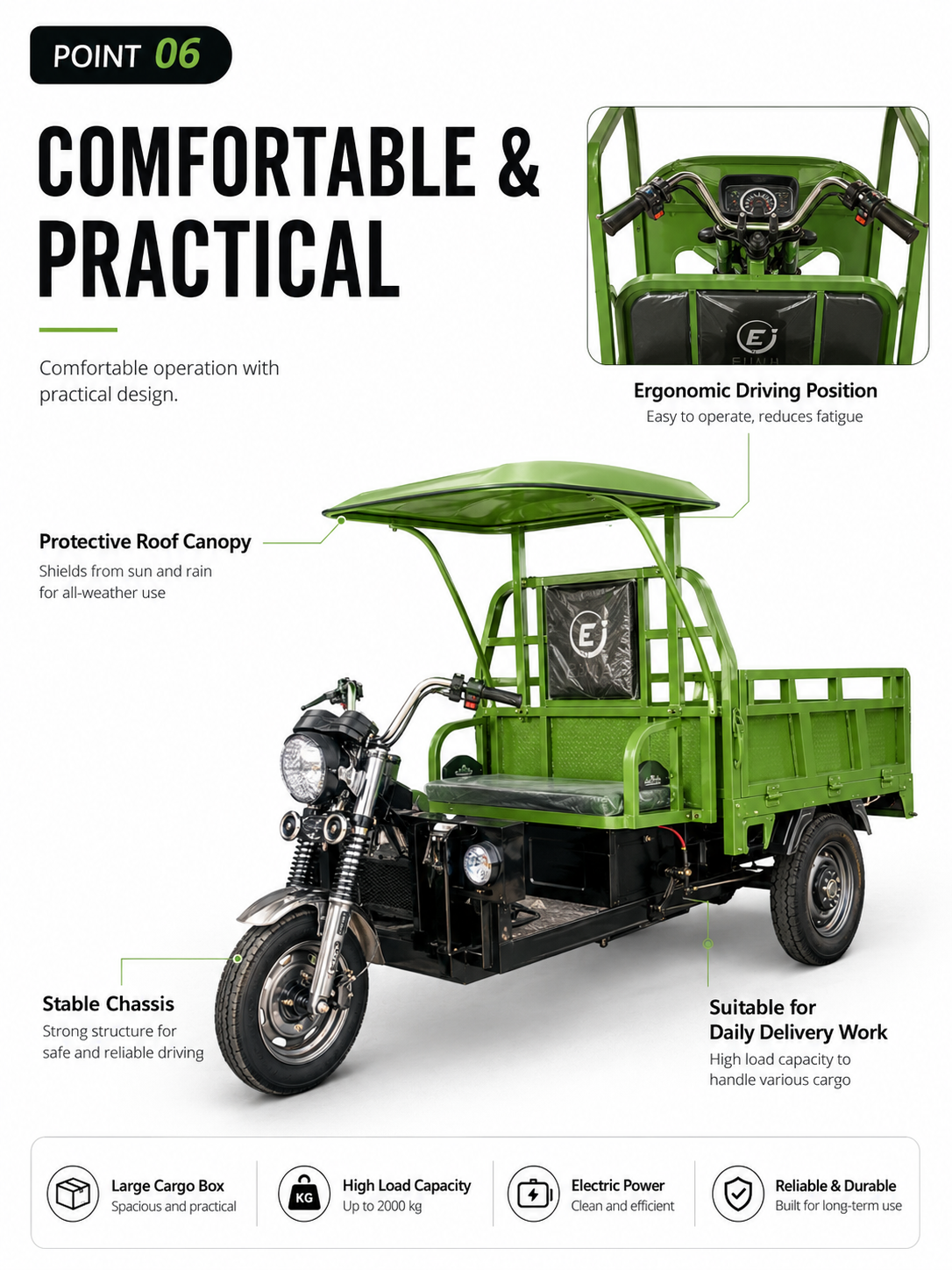

Loader 2.2M Electric Cargo Tricycle
Loader 2.2M · 2500W · 60–72V
A long-bed electric cargo tricycle with a 2200 × 1300 mm carrier, 2500W motor, and 2000 kg load capacity for demanding transport work.
Product Overview
A long-bed electric cargo tricycle with a 2200 × 1300 mm carrier, 2500W motor, and 2000 kg load capacity for demanding transport work.
Key Features

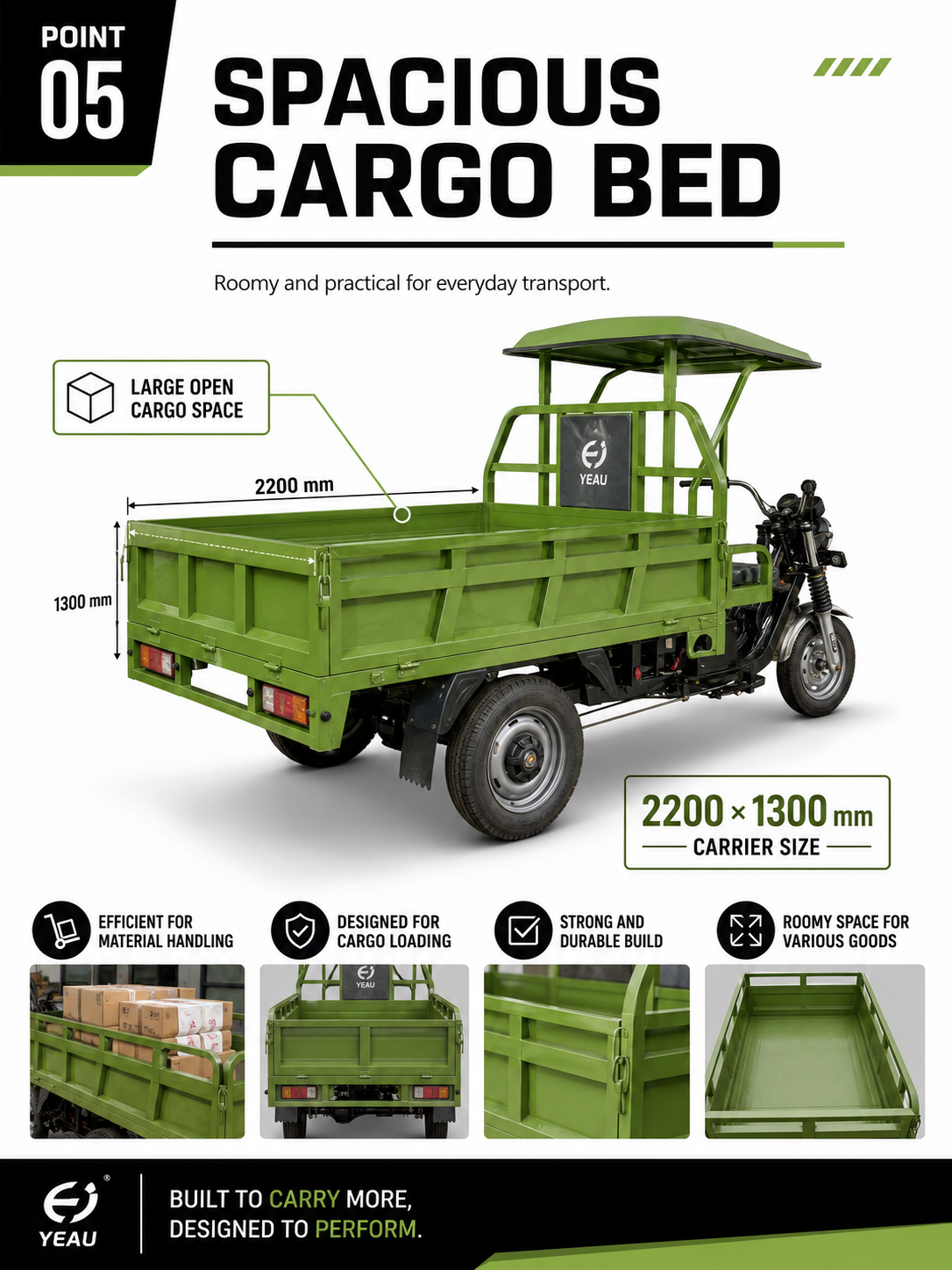

- 2200 × 1300 mm open cargo bed

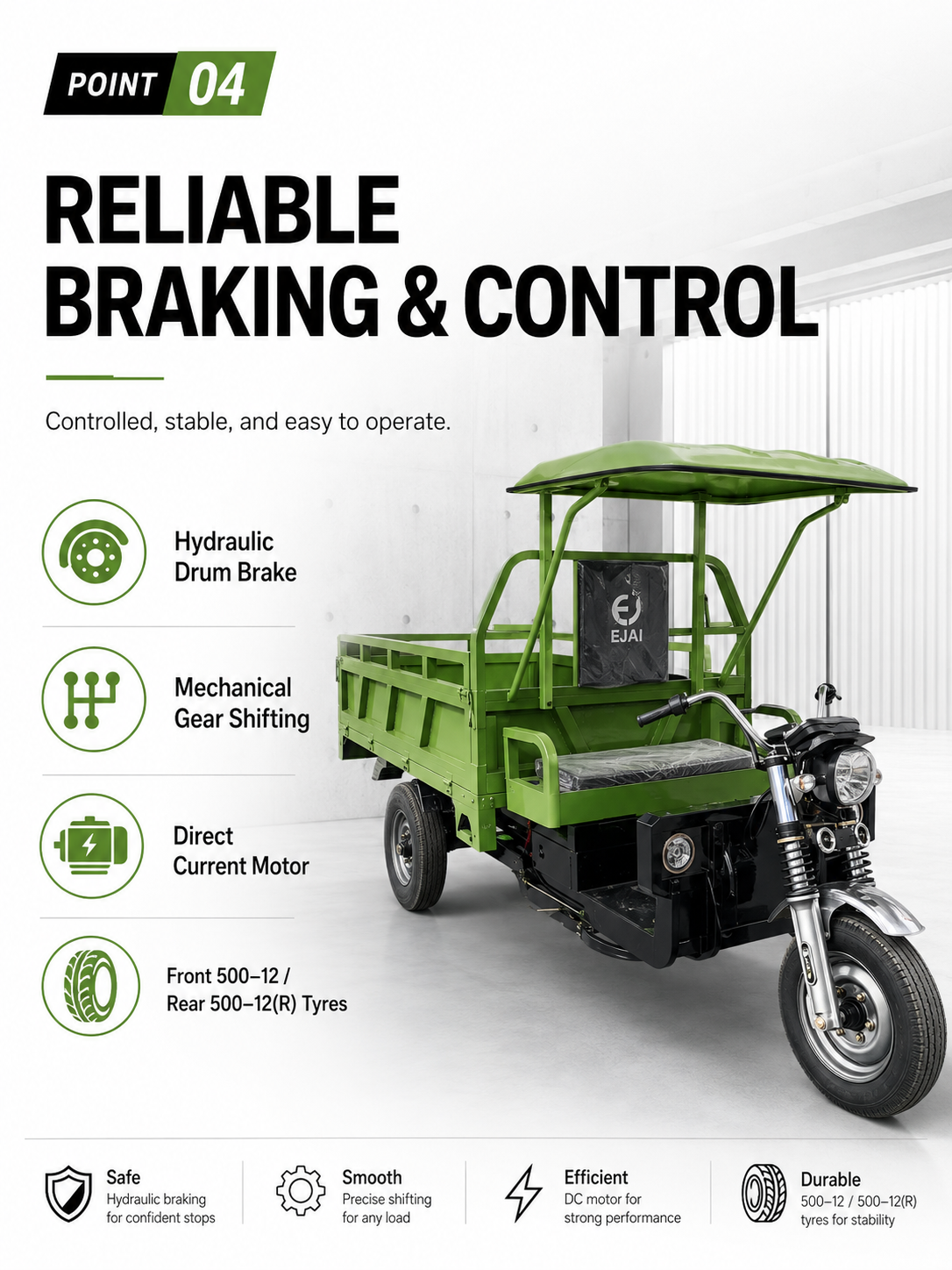

- Hydraulic drum braking system
- Mechanical gear shifting
- Integral rear axle
- Lithium-ion battery configuration
Technical Specifications
| Model | Loader 2.2M |

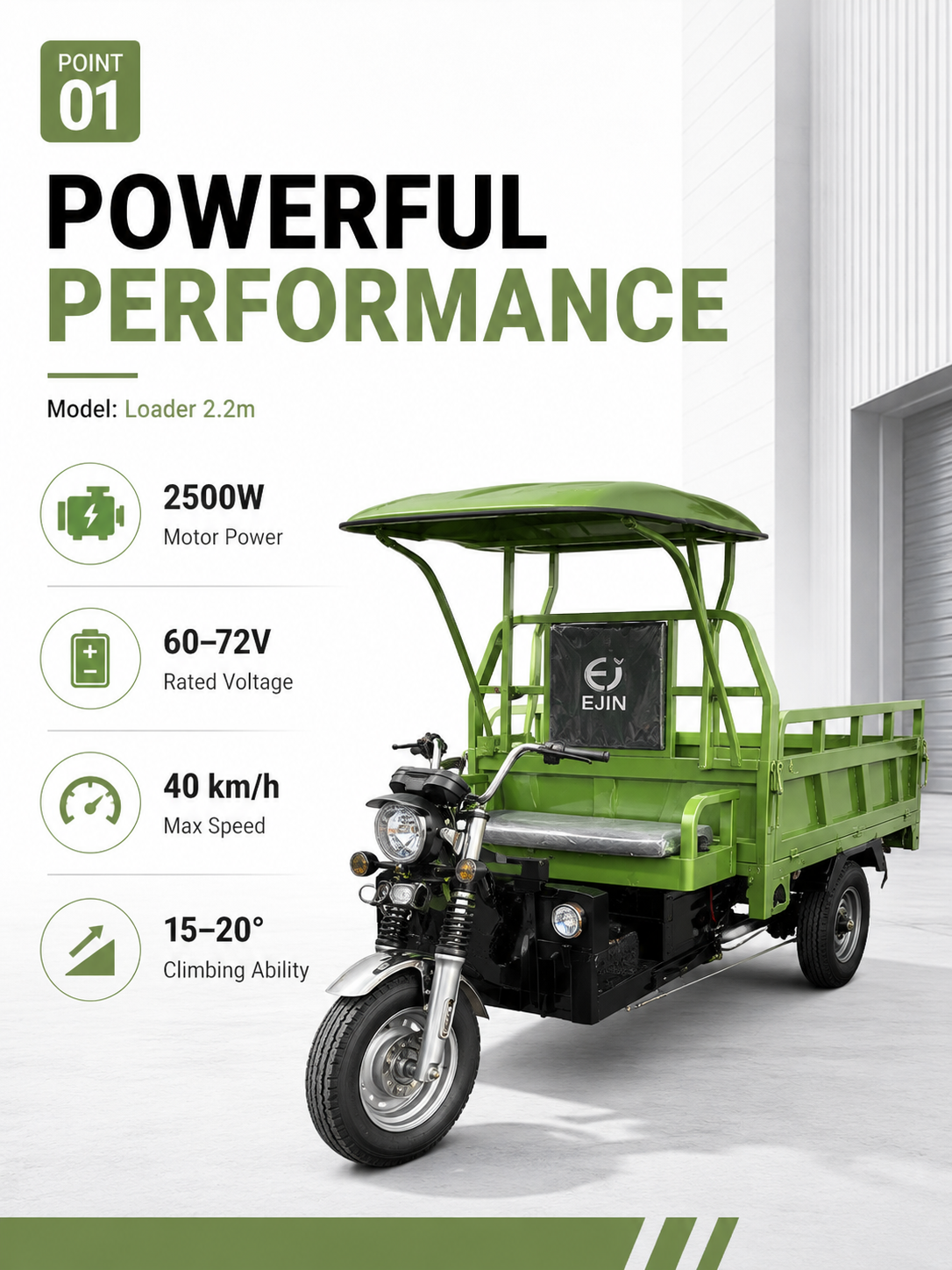

| Rated Voltage | 60–72V |
| Motor Power | 2500W |
| Maximum Speed | 40 km/h |

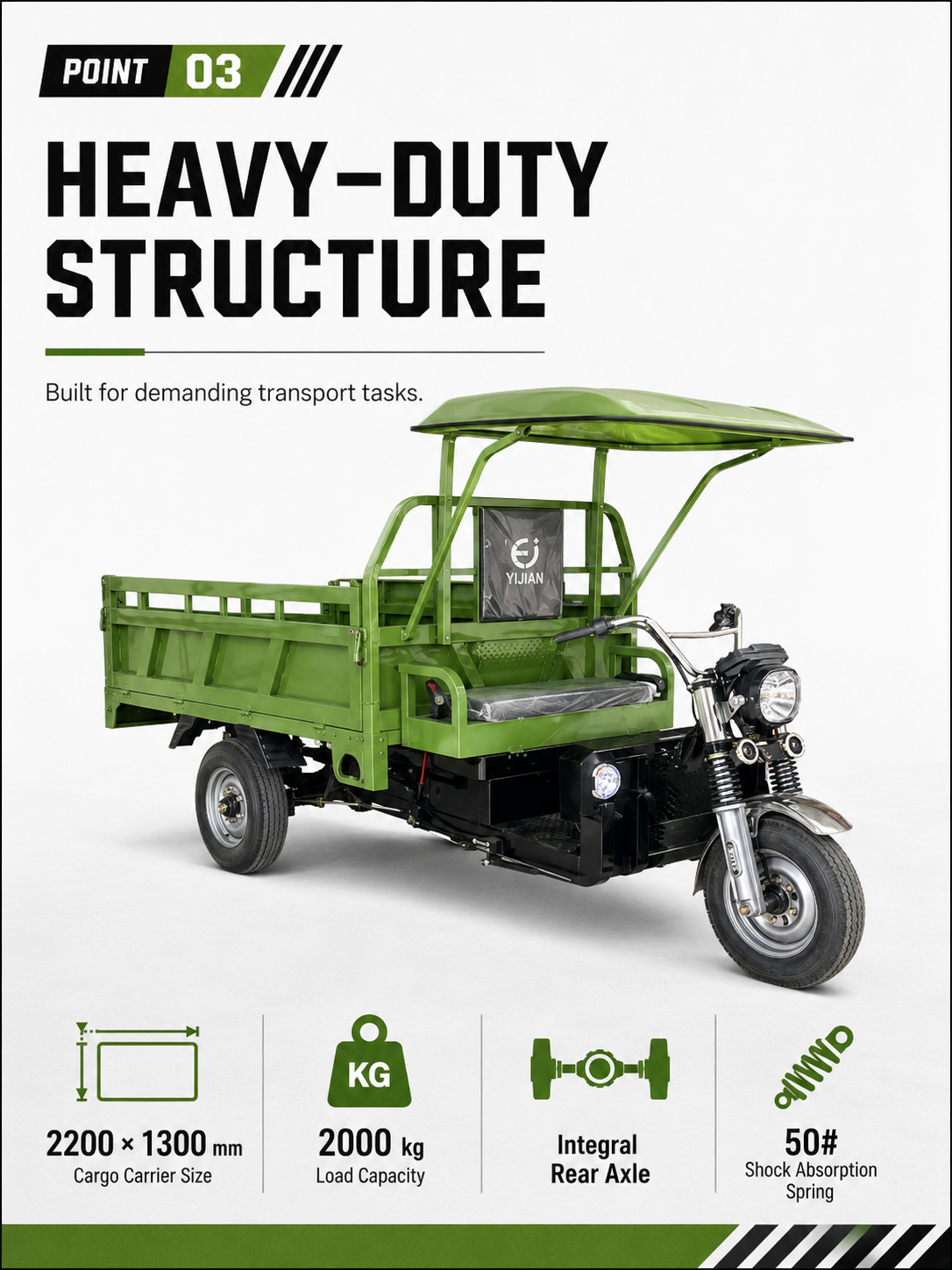

| Payload Capacity | 2000 kg |
| Dimensions (L × W × H) | 3750 × 1350 × 1950 mm |
| Curb Weight | 556 kg without battery; 653.6 kg with 200A battery |
| Cargo Carrier Size | 2200 × 1300 mm |

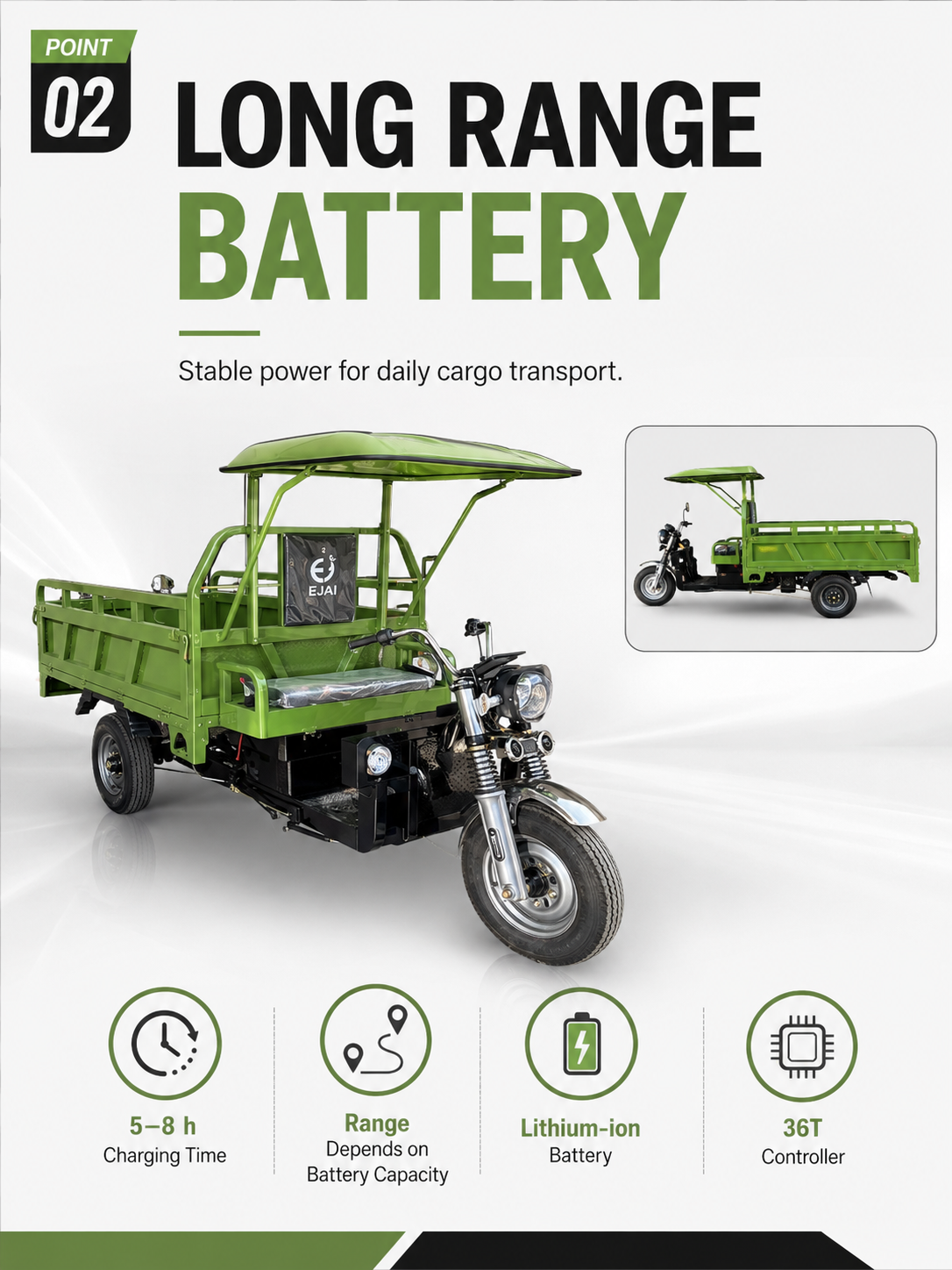

| Charging Time | 5–8 hours |
| Climbing Ability | 15–20° |
| Battery Type | Lithium-ion |
| Motor Type | Direct current motor |
| Gear System | Mechanical gear shifting |
| Controller | 36T |
| Front Suspension | 50 mm shock absorber |
| Rear Axle | Integral rear axle |
| Brakes | Hydraulic drum brake |
| Wheelbase | 2300 mm |
| Tire Size | Front 5.00-12 / rear 5.00-12 |
| Range | Depends on battery configuration |
Product Details
