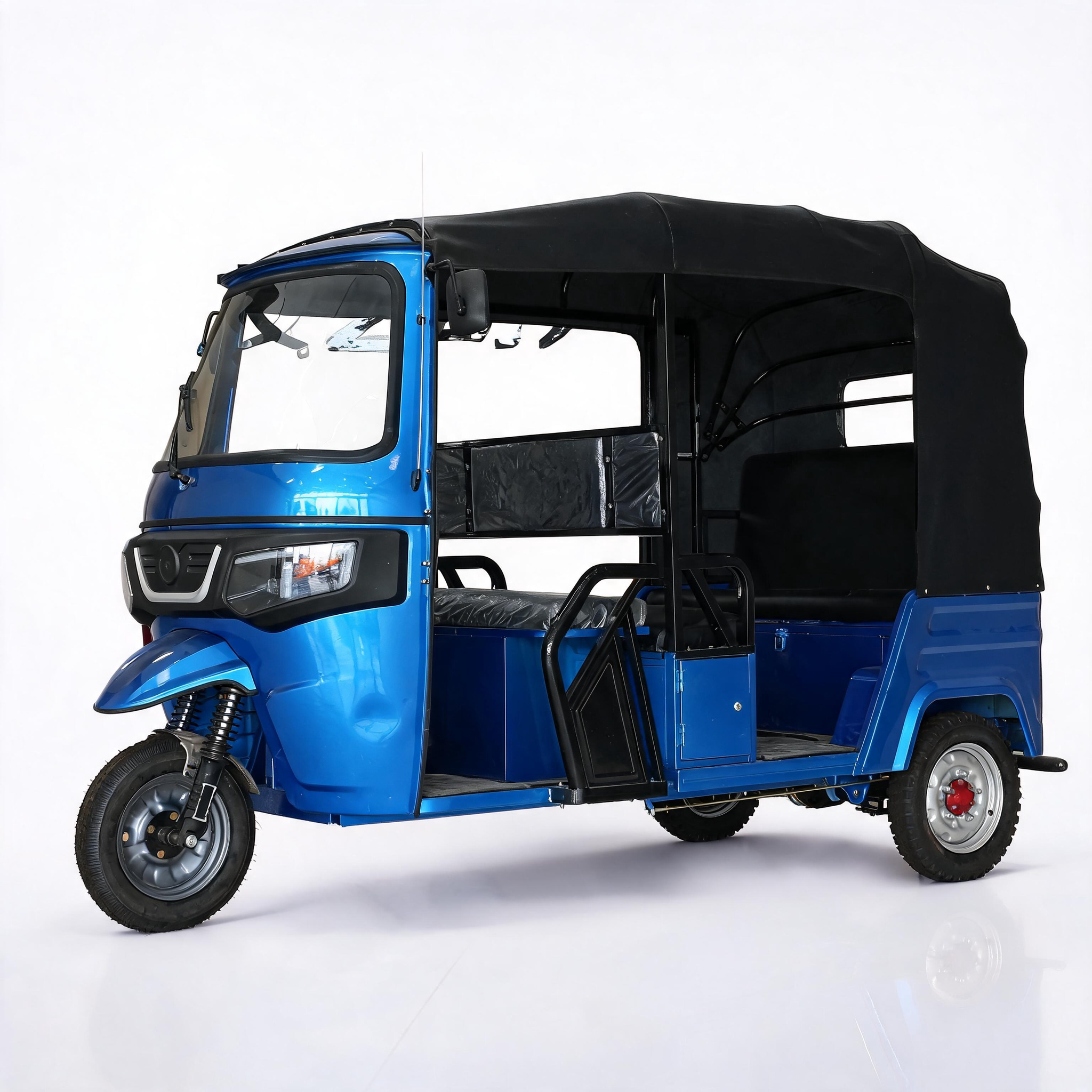

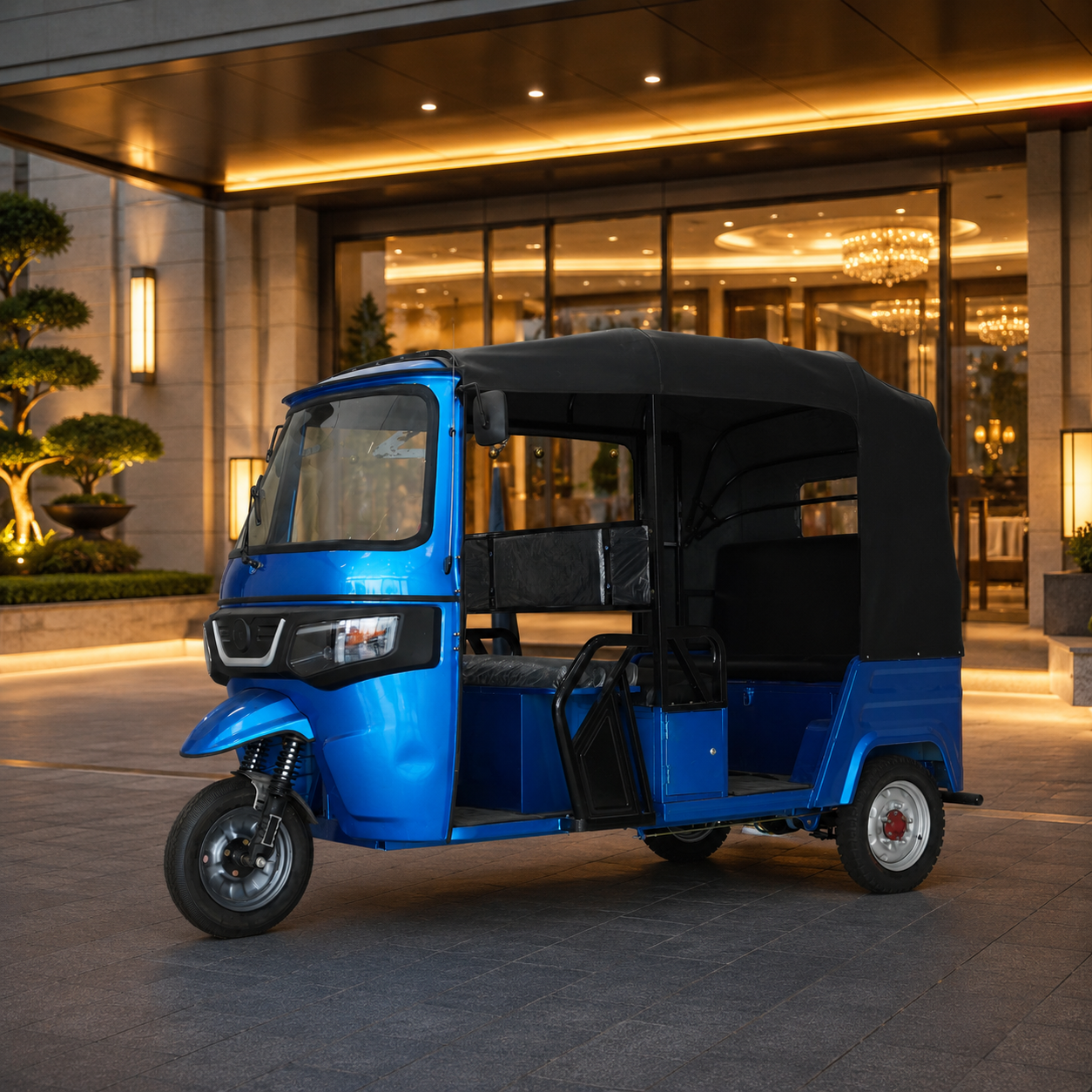

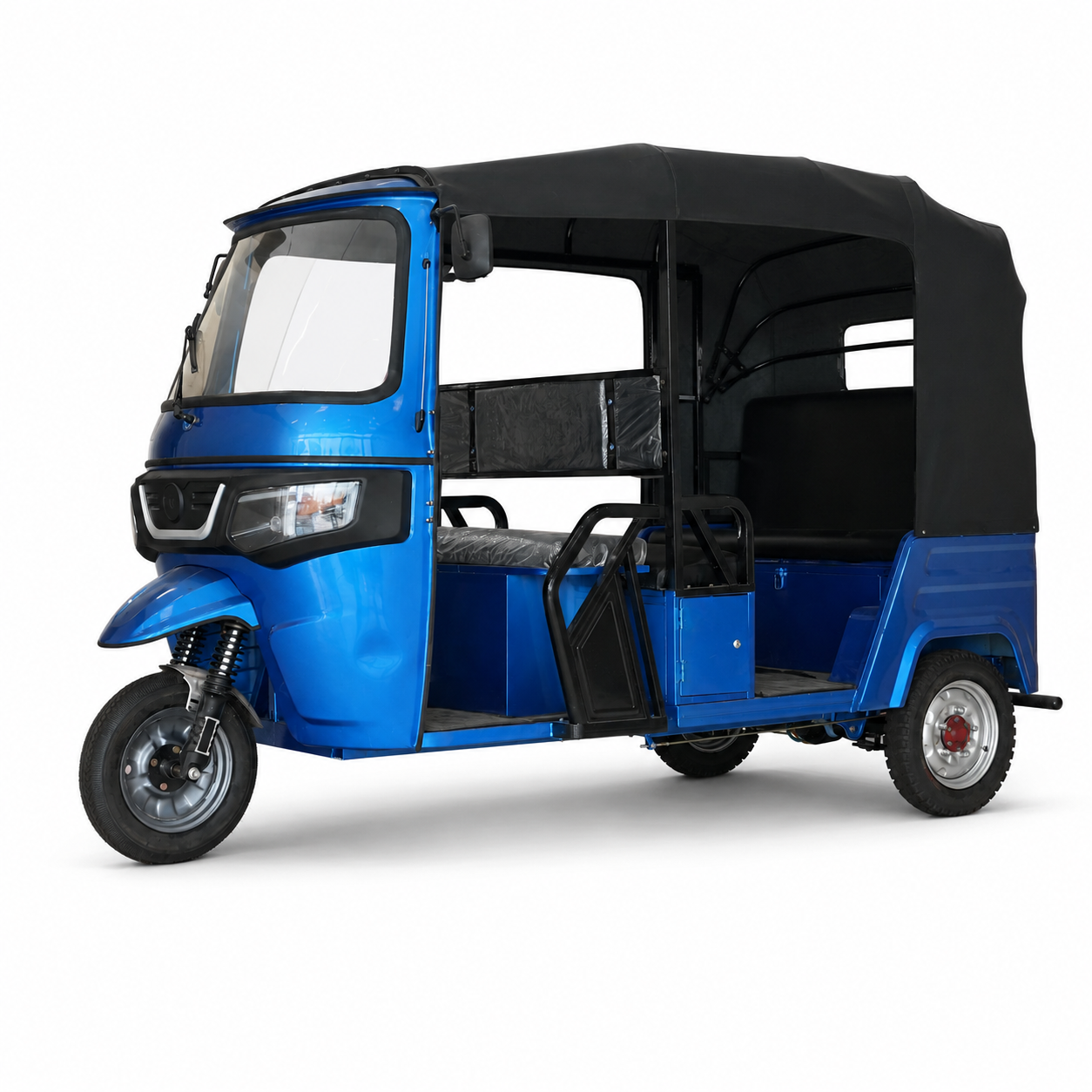

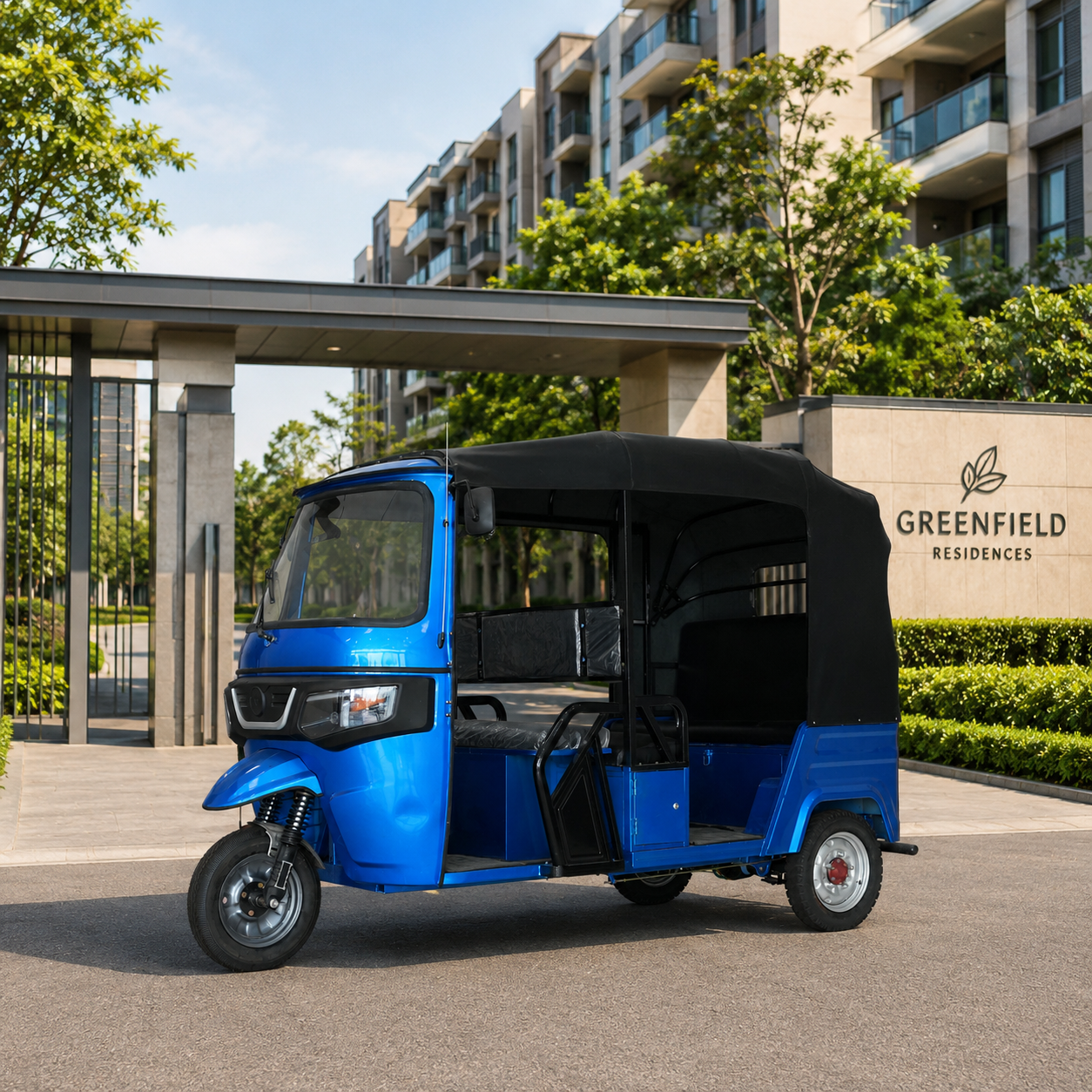

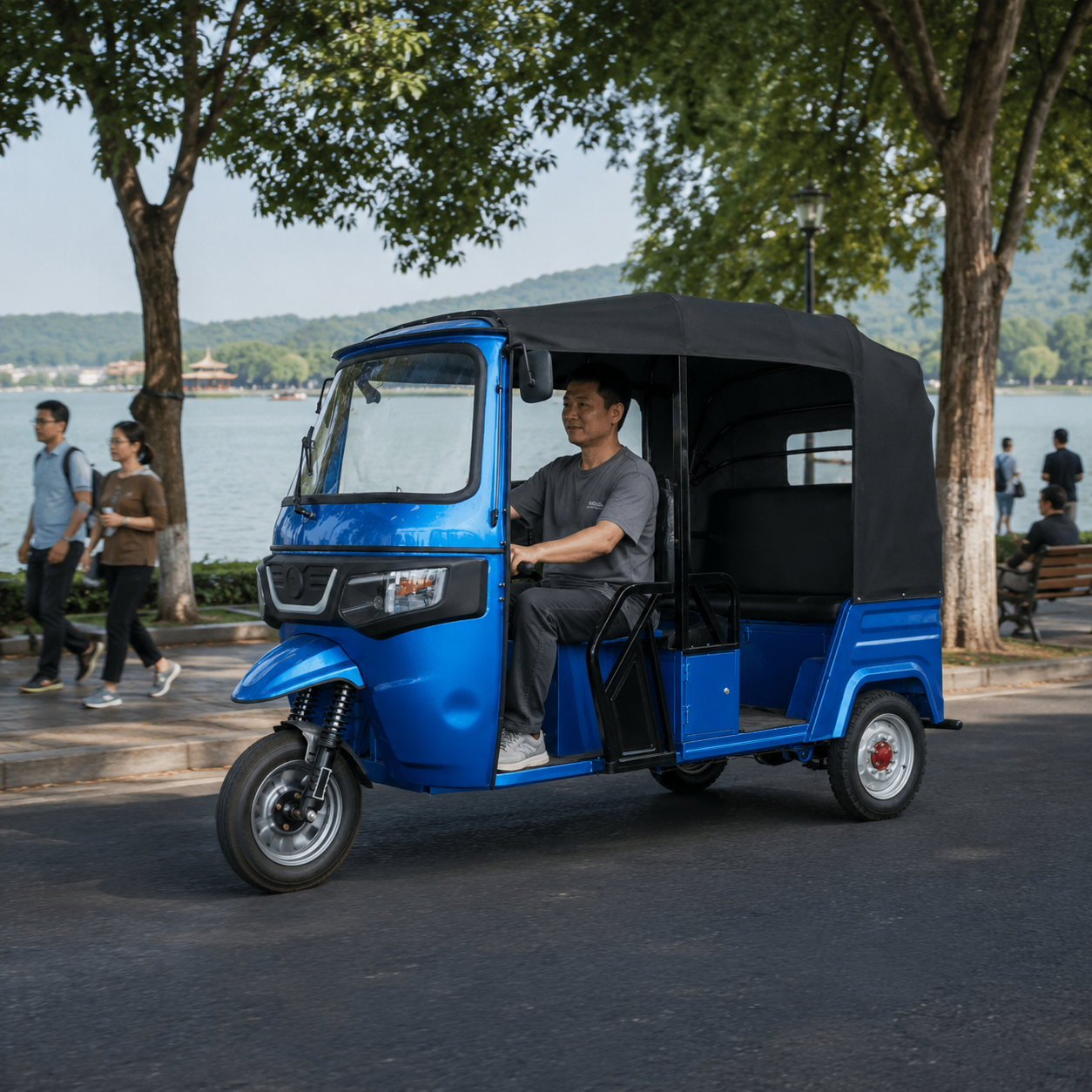

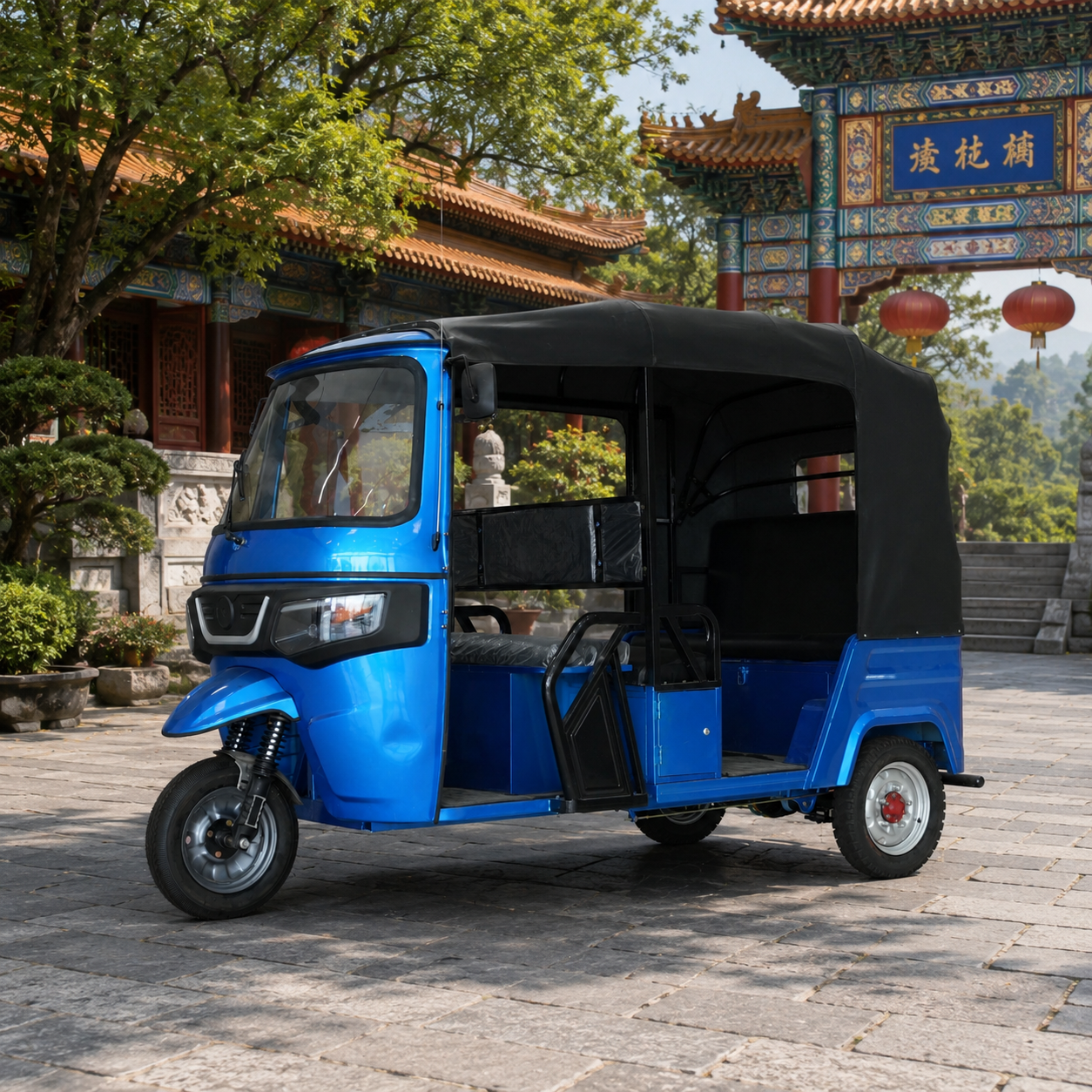

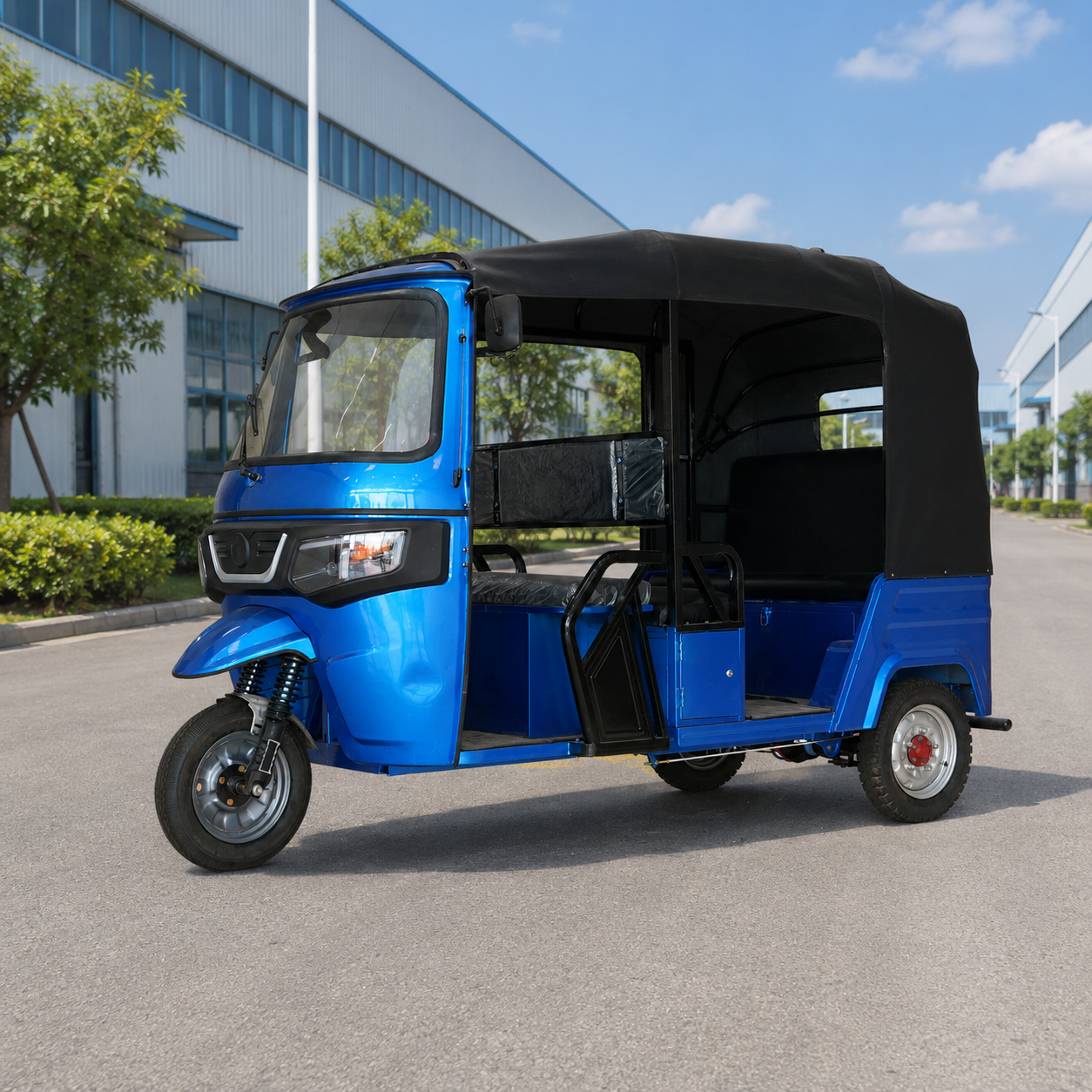

Standard Forward-Facing Double-Row Electric Tuk Tuk 6+1
Forward-Facing Double-Row Standard 6+1 · 2000W · 48–60V
A practical forward-facing double-row electric tuk tuk using a 2000W PMSM drive and hydraulic drum brakes for stable daily passenger service.

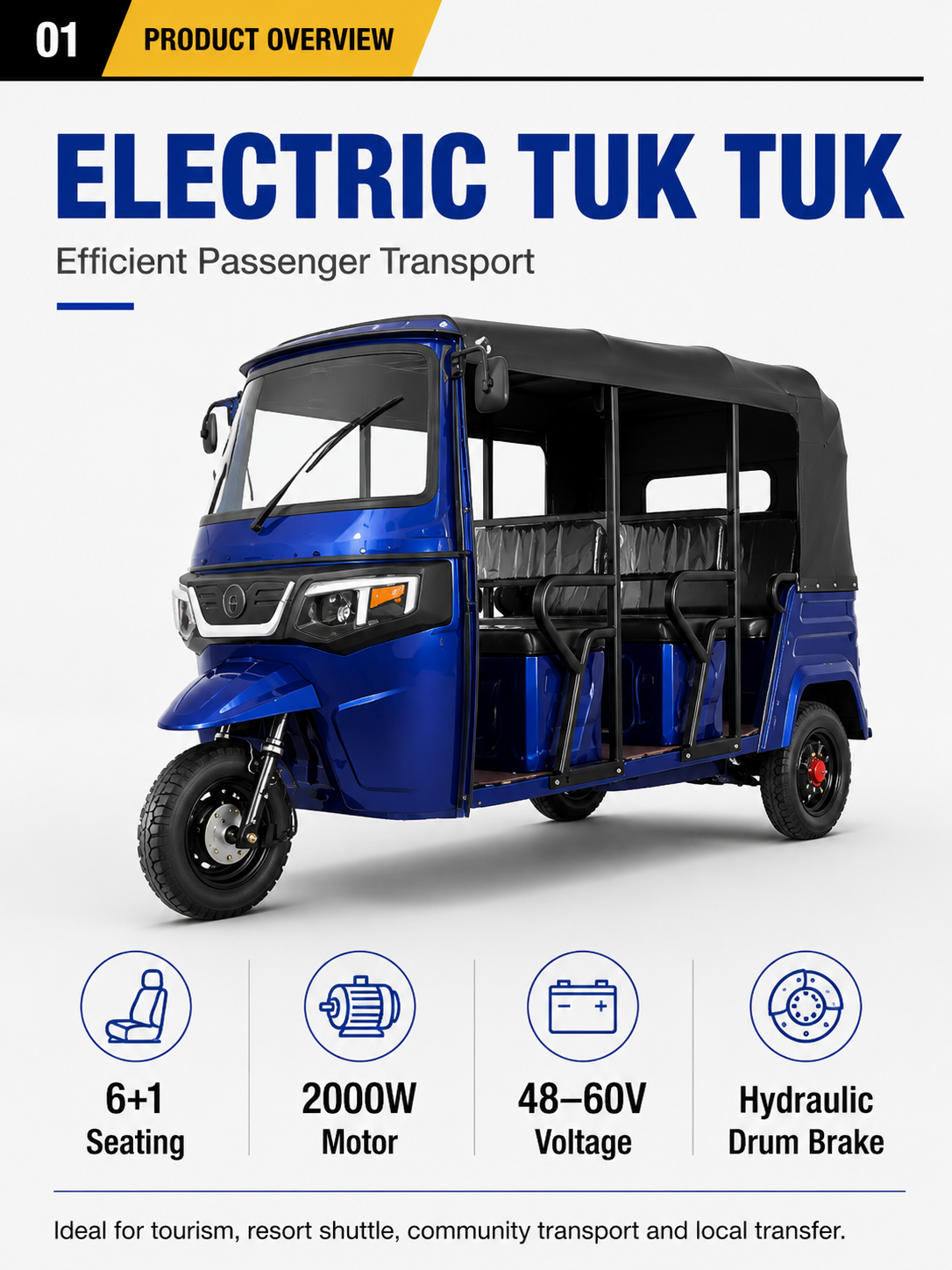

Product Overview
A practical forward-facing double-row electric tuk tuk using a 2000W PMSM drive and hydraulic drum brakes for stable daily passenger service.

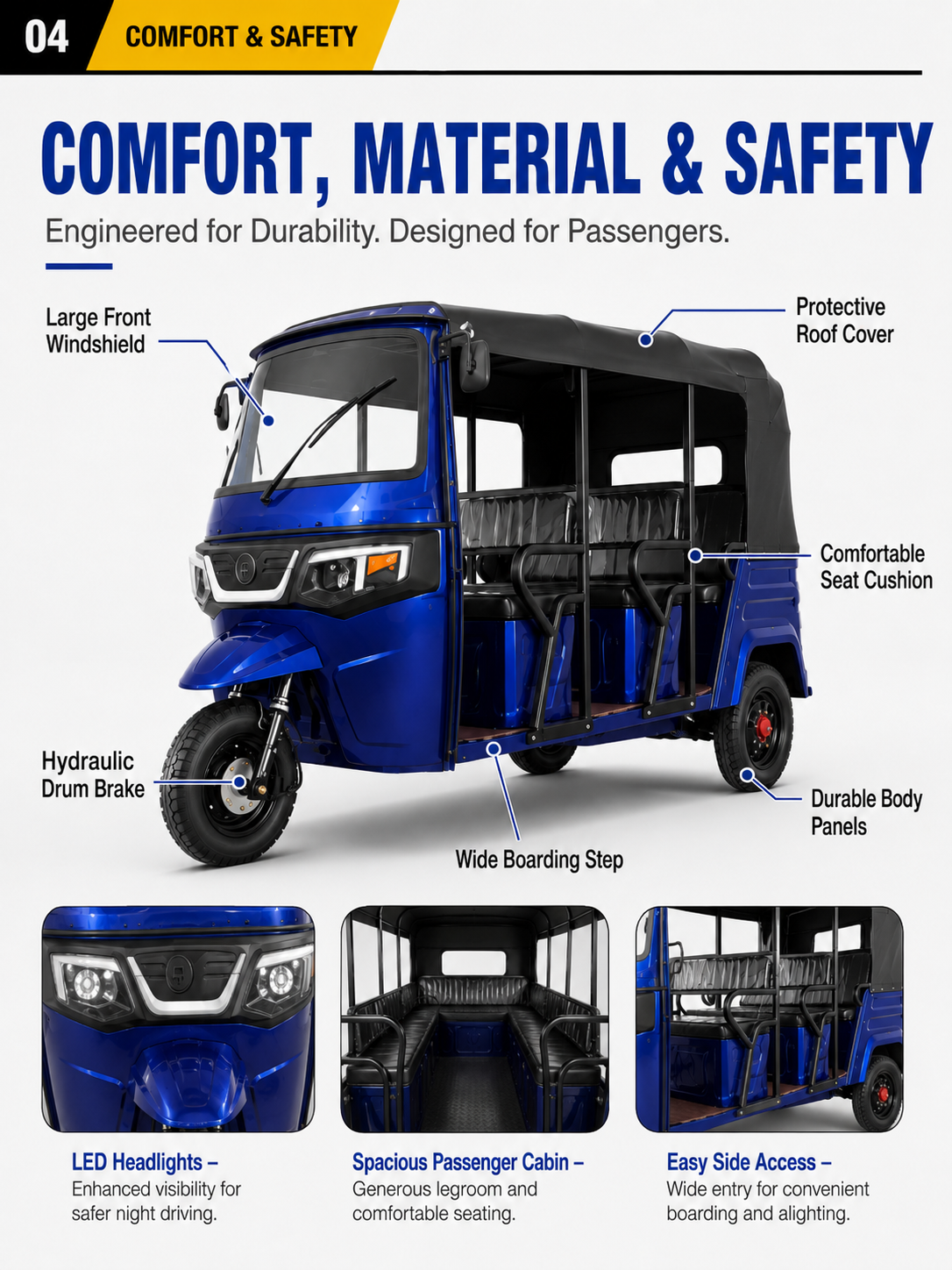

Key Features
- Forward-facing double-row seating
- Hydraulic drum braking system
- Integrated shock absorption
- Electronic gear shifting
- 36T controller

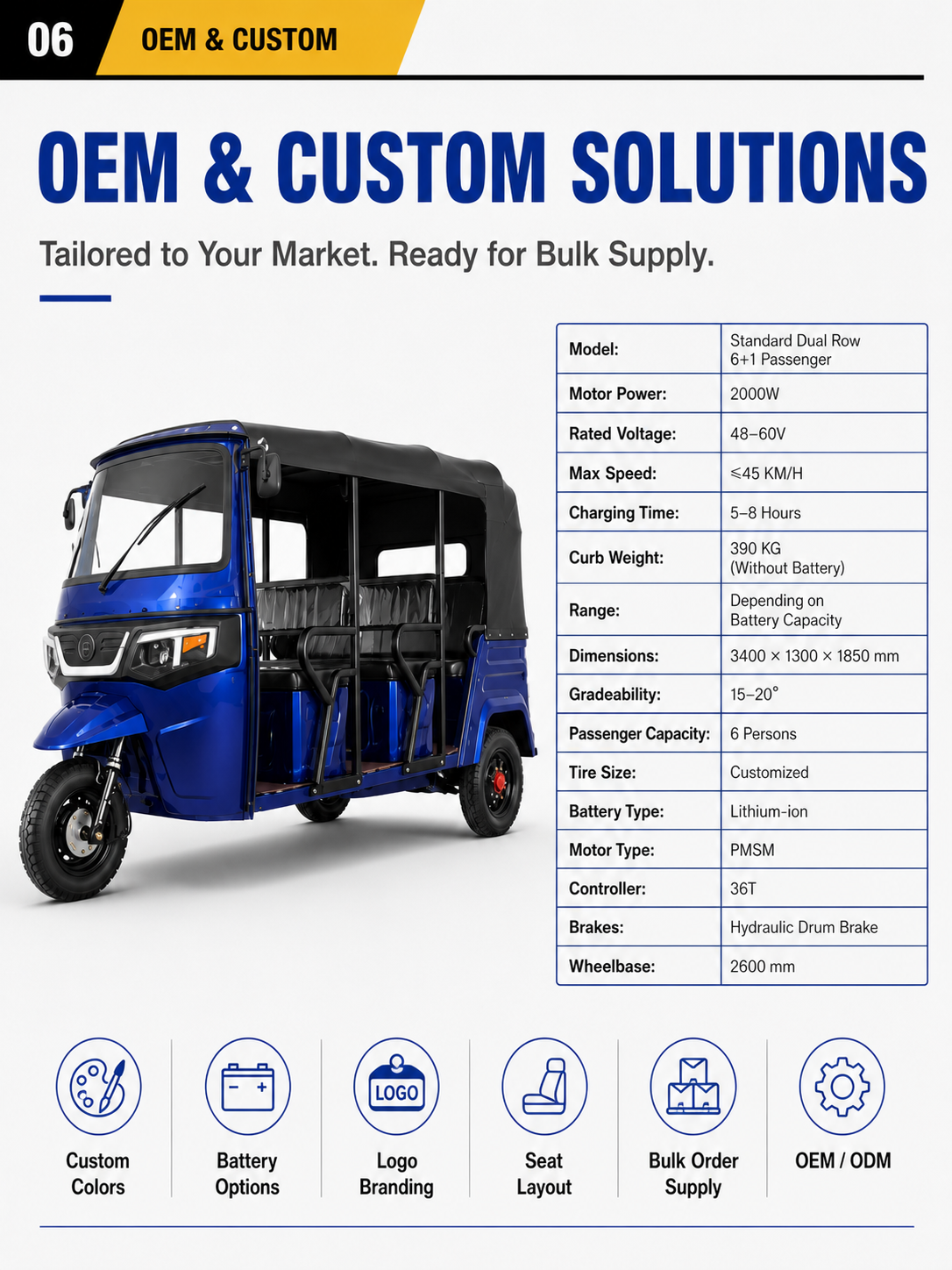

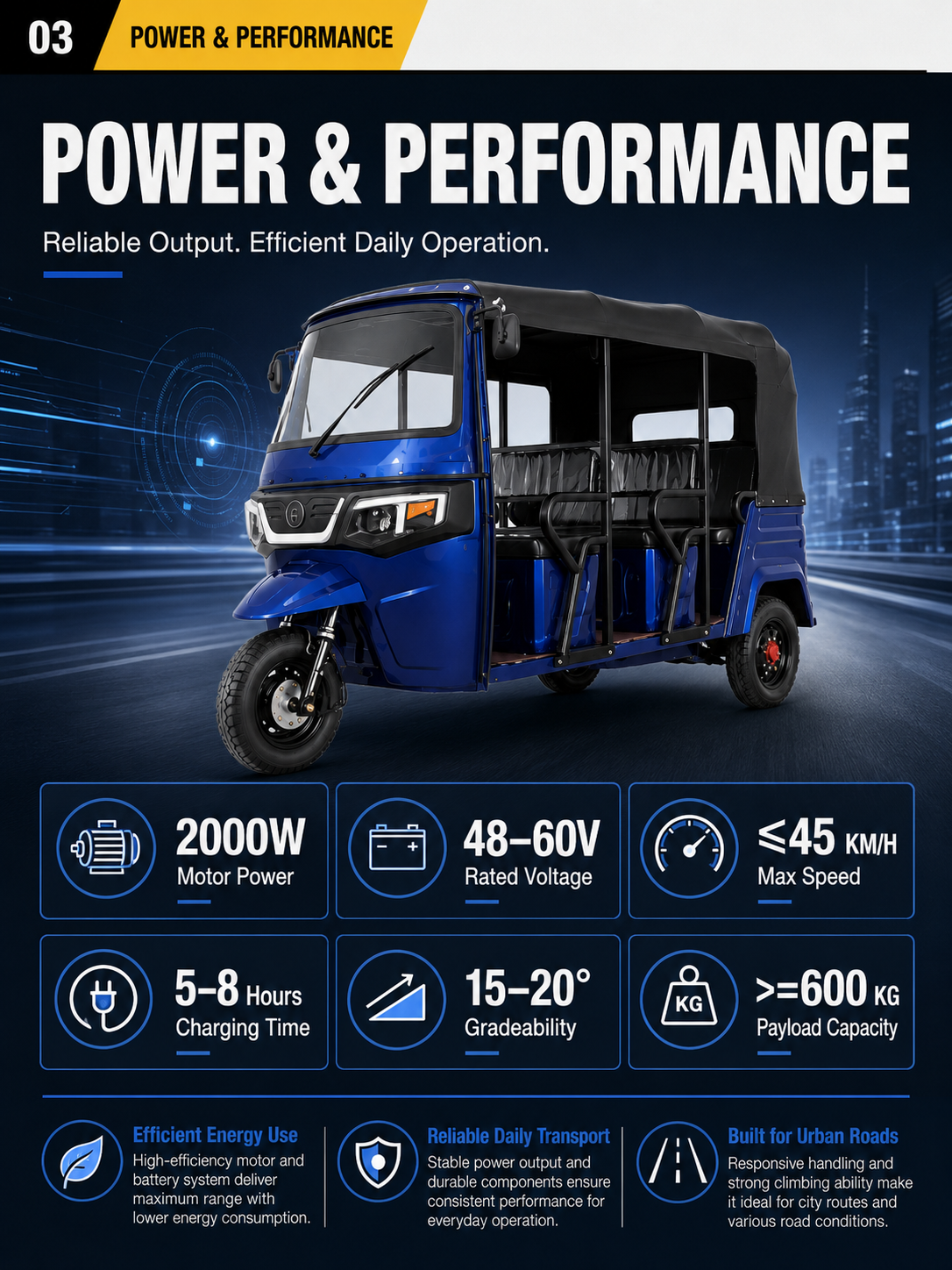

Technical Specifications
| Model | Forward-Facing Double-Row Standard 6+1 |
| Rated Voltage | 48–60V |
| Motor Power | 2000W |
| Maximum Speed | ≤45 km/h |
| Payload Capacity | ≥600 kg |
| Dimensions (L × W × H) | 3400 × 1300 × 1850 mm |
| Curb Weight | 390 kg (without battery) |
| Passenger Capacity | 6 persons |
| Charging Time | 5–8 hours |
| Gradeability | 15–20° |
| Battery Type | Lithium-ion |
| Motor Type | PMSM |
| Gear System | Electronic shifting |
| Controller | 36T |

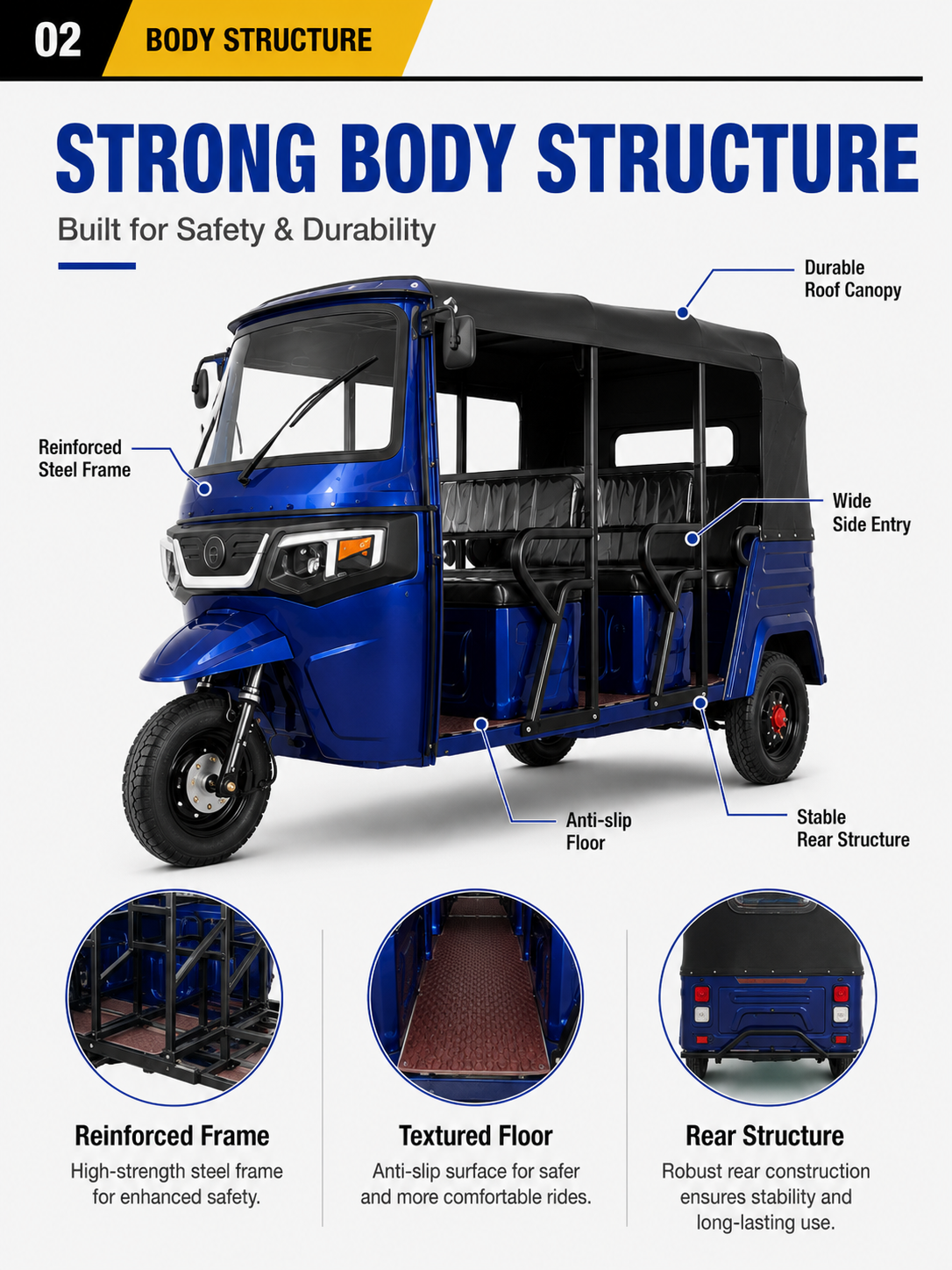

| Front Suspension | 43 mm outer tube with external spring and integrated shock absorption |
| Rear Axle | Integrated rear axle with truss arm |
| Brakes | Hydraulic drum brake |
| Wheelbase | 2600 mm |
| Range | Depends on battery configuration |
Product Details
