TRI-GLOBAL Our Electric VehicleProduct Range
High-performance electric tricycles engineered for urban mobility, cargo logistics, and leisure travel — backed by reliable lithium battery systems and robust construction.

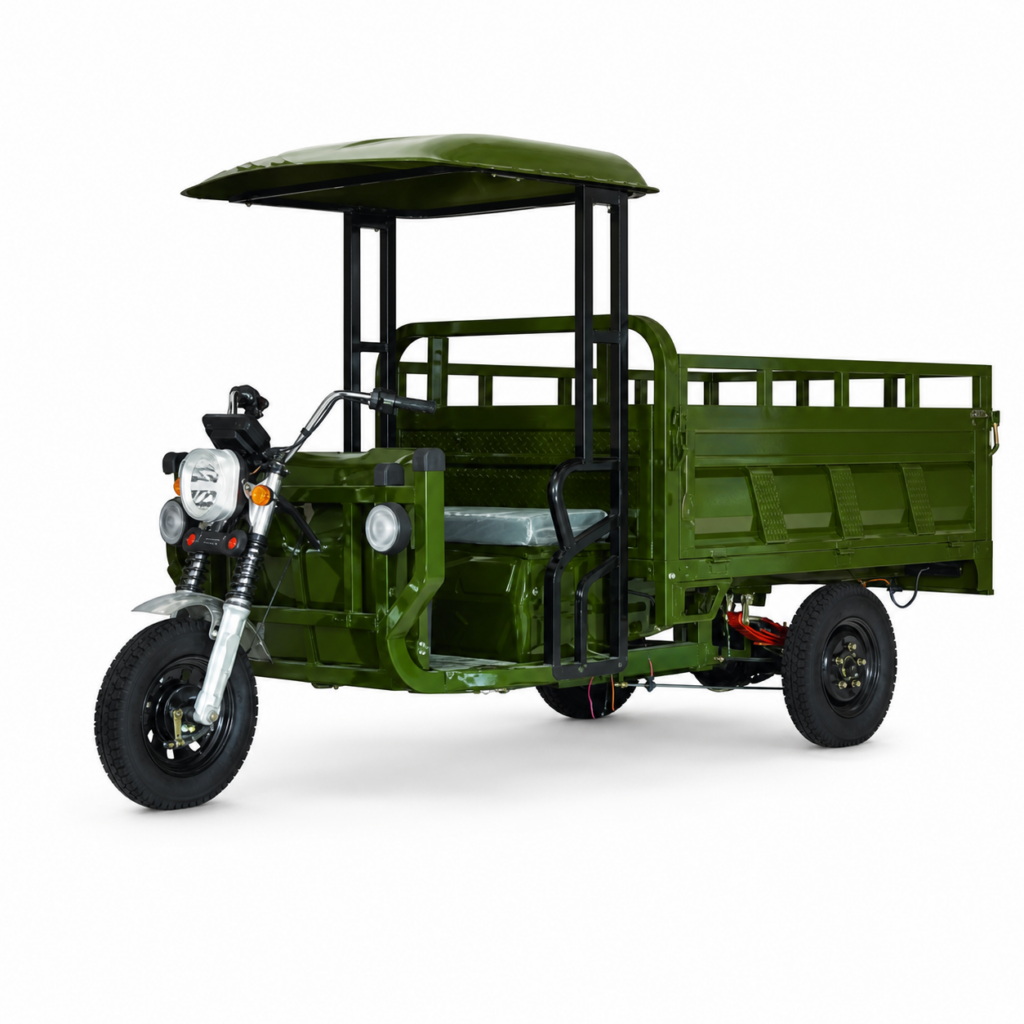

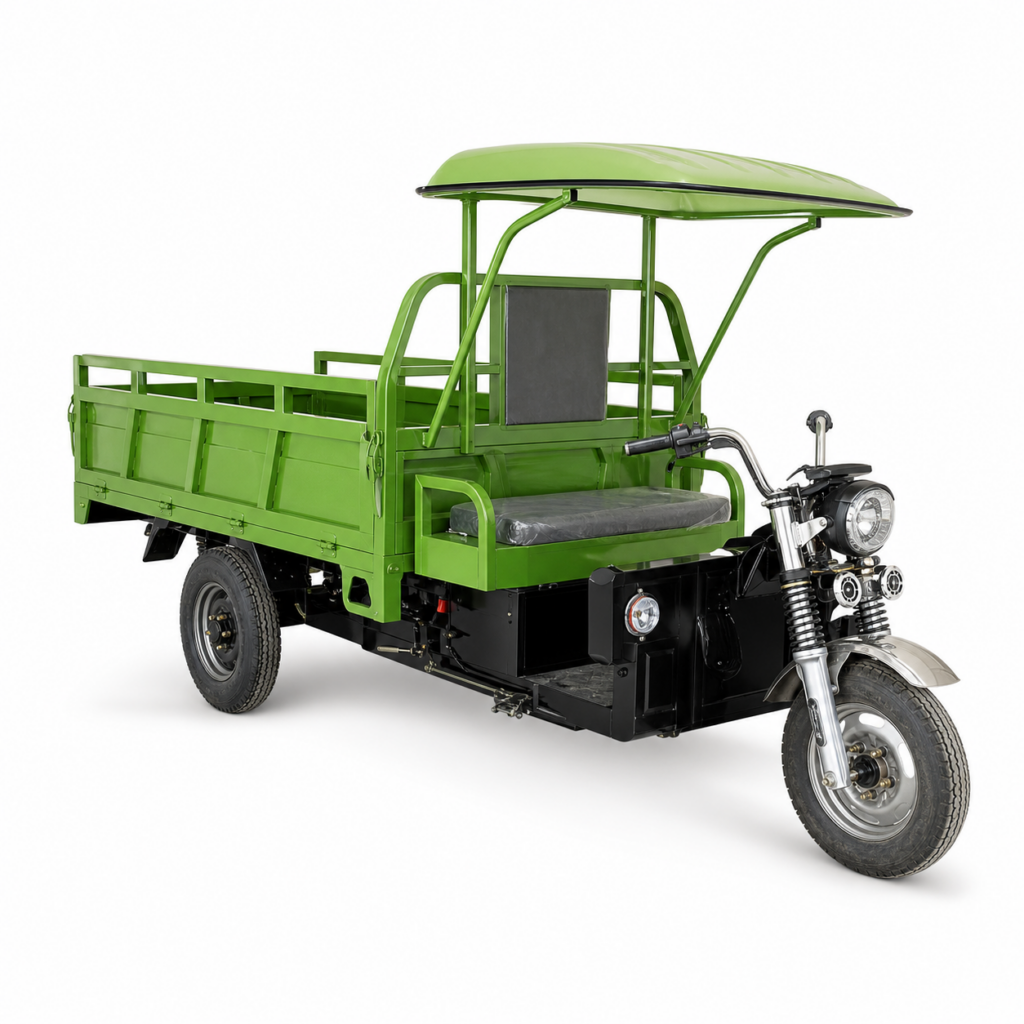

Product Overview A compact 1.6 m cargo loader with a simple canopy, 1500W PMSM motor, and 500 kg payload for local delivery, farming, and warehouse use. Key Features 1600 × 1100 mm open cargo bed Simple protective canopy Mechanical gear shifting Mechanical or optional oil drum brakes Lead-acid or lithium battery options Technical Specifications Model 1.6M Simple-Canopy Cargo Loader Rated Voltage 48–60V Motor Power 1500W Maximum Speed 35 km/h Payload Capacity 500 kg Dimensions (L × W × H) 3050 × 1200 × 1700 mm Curb Weight 310 kg (without battery) Cargo Carrier Size 1600 × 1100 mm Charging Time 7–9 hours Gradeability 15–20° Battery Type Lead-acid / lithium (optional) Motor Type PMSM Gear System Mechanical gear shifting Controller 24T Front Suspension 43 mm outer tube with external spring and integrated shock absorption Rear Axle Integral rear axle with variable gears Brakes Mechanical drum brakes / oil drum brakes (optional) Wheelbase 2100 mm Tire Size Front 3.50-12 / rear 4.00-12 Range Depends on battery configuration Product Details

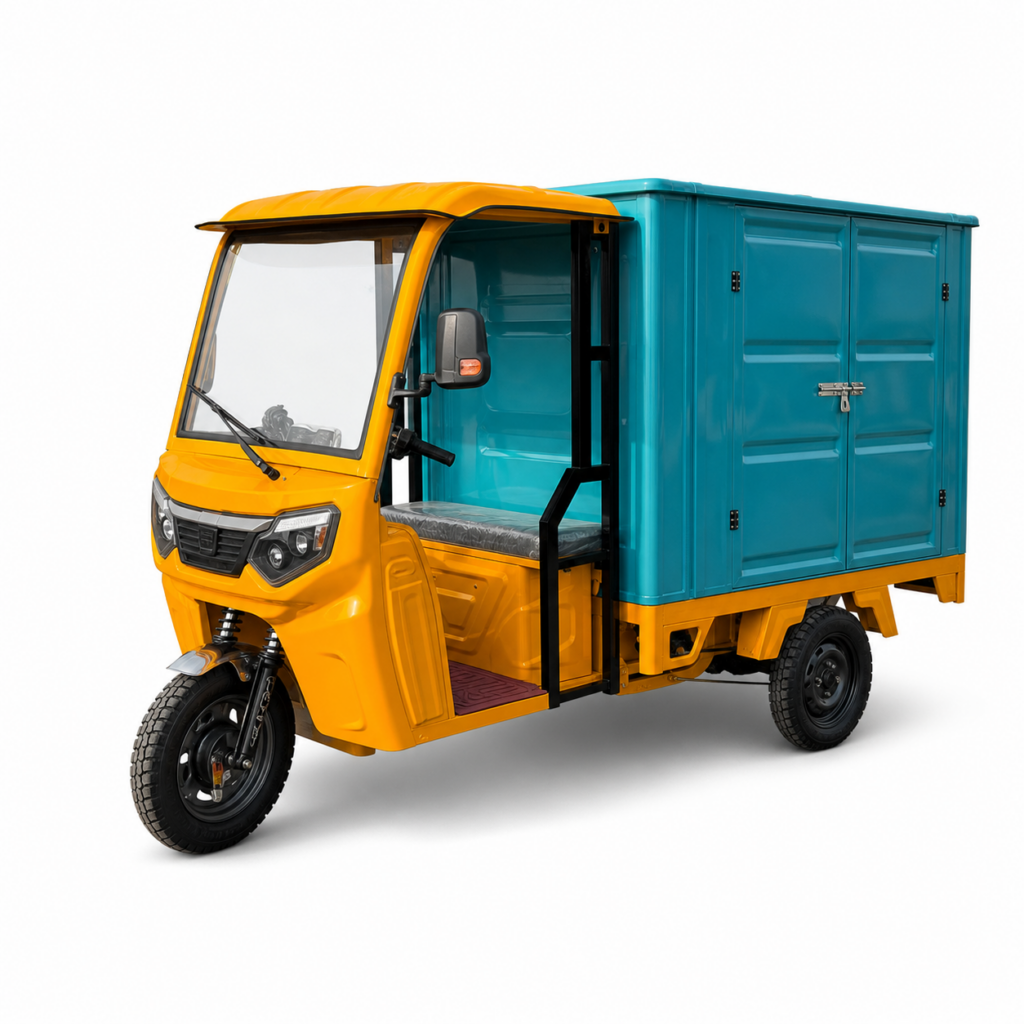

Product Overview A compact enclosed electric cargo tricycle with a 2000W PMSM motor, 800 kg-class payload, and protected cargo box for daily distribution. Key Features 1100 × 1600 mm enclosed cargo box Mechanical gear shifting Mechanical or optional oil drum brakes Integral rear axle Lead-acid or lithium battery options Technical Specifications Model KD01 Rated Voltage 48–60V Motor Power 2000W Maximum Speed 35 km/h Payload Capacity ≥800 kg Dimensions (L × W × H) 3050 × 1100 × 1700 mm Curb Weight 350 kg (without battery) Cargo Carrier Size 1100 × 1600 mm Charging Time 5–8 hours Gradeability 15–20° Battery Type Lead-acid / lithium Motor Type PMSM Gear System Mechanical gear shifting Controller 60V 24T Rear Axle Integral rear axle Brakes Mechanical drum brakes / oil drum brakes (optional) Wheelbase 2100 mm Tire Size Front 3.75-12 / rear 4.00-12 Range Depends on battery configuration Product Details

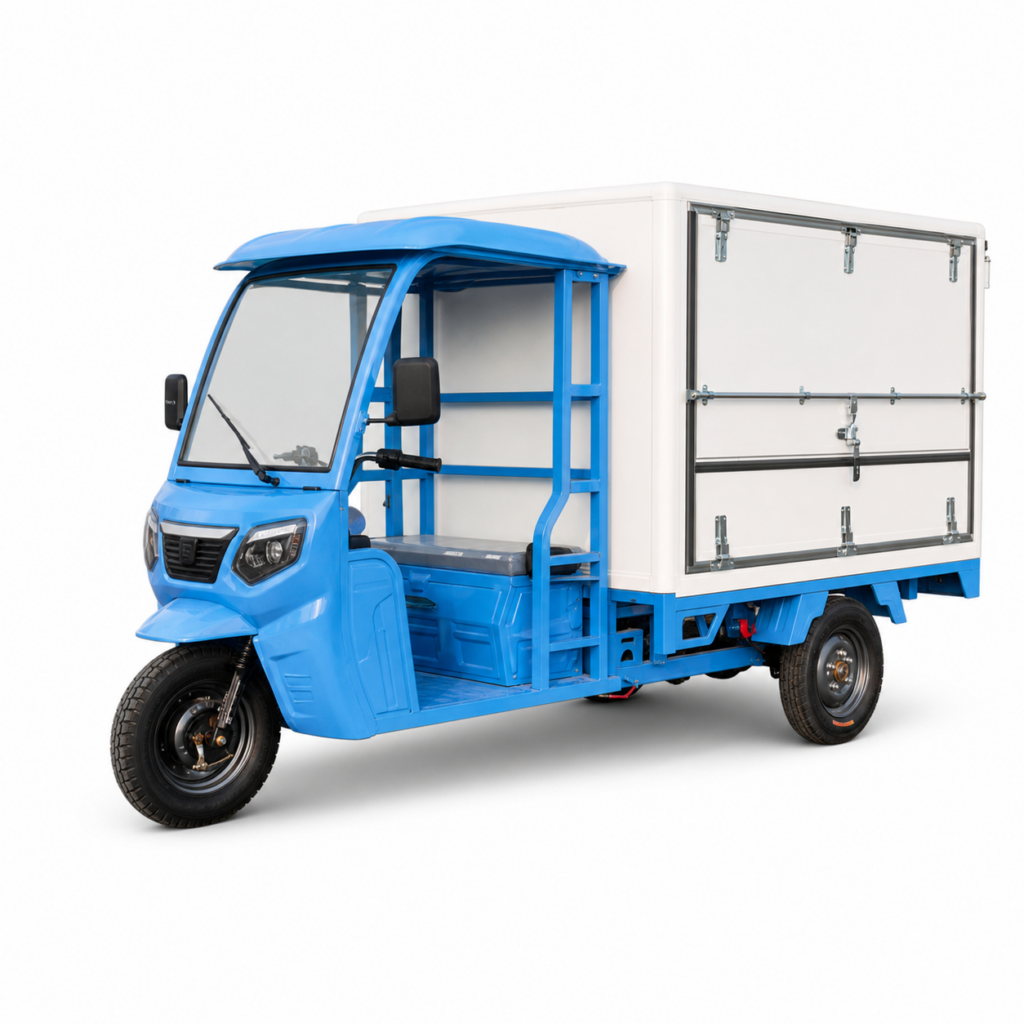

Product Overview An enclosed-box electric cargo tricycle with a 2000W PMSM motor, 1500 kg-class payload, and protected 1900 × 1350 mm cargo space for delivery work. Key Features 1900 × 1350 mm enclosed cargo box Mechanical gear shifting Mechanical or optional oil drum brakes Integral rear axle Lead-acid or lithium battery options Technical Specifications Model Enclosed-Box Cargo Tricycle Rated Voltage 60–72V Motor Power 2000W Maximum Speed 40 km/h Payload Capacity ≥1500 kg Dimensions (L × W × H) 3450 × 1500 × 1900 mm Curb Weight 580 kg (with 72V 50Ah battery) Cargo Carrier Size 1900 × 1350 mm Charging Time 5–8 hours Climbing Ability 15–20° Battery Type Lead-acid / lithium (optional) Motor Type PMSM Gear System Mechanical gear shifting Controller 24T Rear Axle Integral rear axle Brakes Mechanical drum brakes / oil drum brakes (optional) Wheelbase 2200 mm Tire Size Front 4.50-12 / rear 5.00-12 Range Depends on battery configuration Product Details
Product Overview A long-bed electric cargo tricycle with a 2200 × 1300 mm carrier, 2500W motor, and 2000 kg load capacity for demanding transport work. Key Features 2200 × 1300 mm open cargo bed Hydraulic drum braking system Mechanical gear shifting Integral rear axle Lithium-ion battery configuration Technical Specifications Model Loader 2.2M Rated Voltage 60–72V Motor Power 2500W Maximum Speed 40 km/h Payload Capacity 2000 kg Dimensions (L × W × H) 3750 × 1350 × 1950 mm Curb Weight 556 kg without battery; 653.6 kg with 200A battery Cargo Carrier Size 2200 × 1300 mm Charging Time 5–8 hours Climbing Ability 15–20° Battery Type Lithium-ion Motor Type Direct current motor Gear System Mechanical gear shifting Controller 36T Front Suspension 50 mm shock absorber Rear Axle Integral rear axle Brakes Hydraulic drum brake Wheelbase 2300 mm Tire Size Front 5.00-12 / rear 5.00-12 Range Depends on battery configuration Product Details
Product Overview A 1.8 m electric cargo loader with a 2000W PMSM motor, 1500 kg load capacity, and an open cargo bed for logistics, farming, and material transport. Key Features 1800 × 1300 mm open cargo bed Mechanical gear shifting Mechanical or optional oil drum brakes Integral rear axle Lead-acid or lithium battery options Technical Specifications Model Loader 1.8 Rated Voltage 60–72V Motor Power 2000W Maximum Speed 45 km/h Payload Capacity 1500 kg Dimensions (L × W × H) 3000 × 1300 × 1950 mm Curb Weight 500 kg Cargo Carrier Size 1800 × 1300 mm Charging Time 4–8 hours Gradeability 15–20° Battery Type Lead-acid / lithium Motor Type PMSM Gear System Mechanical gear shifting Controller 36T Rear Axle Integral rear axle Brakes Mechanical drum brakes / oil drum brakes (optional) Wheelbase 2300 mm Tire Size Optional Range Depends on battery configuration Product Details

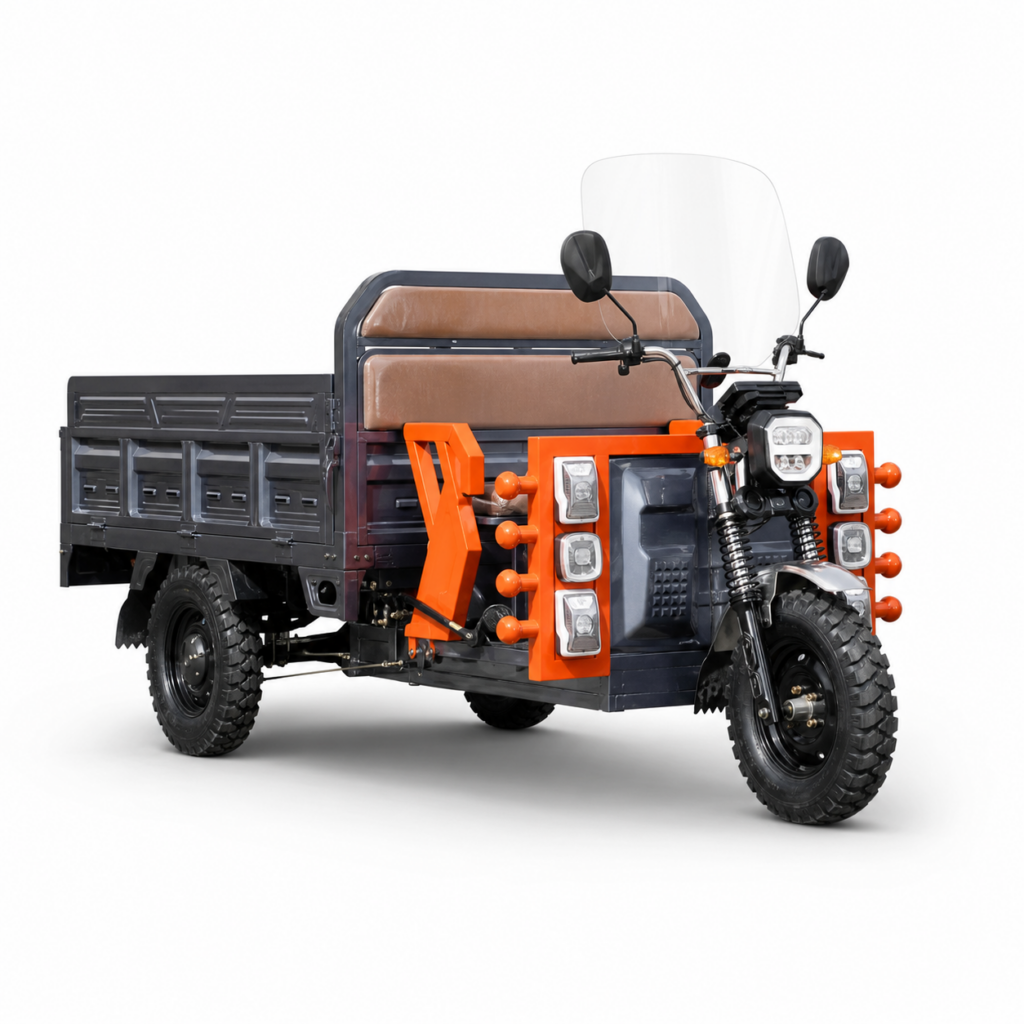

Product Overview A heavy-duty electric cargo tricycle with a four-side-opening 1.8 m cargo bed, 2000W PMSM motor, and 1000 kg payload capacity. Key Features 1.8 m four-side-opening cargo bed Front and rear drum brakes Integral rear axle 43 mm front shock absorber Designed for loading and short-distance delivery Technical Specifications Model 1.8M Four-Side-Opening Cargo Tricycle Rated Voltage 60–72V Motor Power 2000W Maximum Speed 50–70 km/h Payload Capacity 1000 kg Charging Time 7–9 hours Gradeability 15–20° Range Depends on battery configuration Motor Type PMSM Controller 30T PMSM Front Suspension 43 mm shock absorber Rear Axle Integral rear axle Braking System Front and rear drum brakes Tire Size Optional Product Details

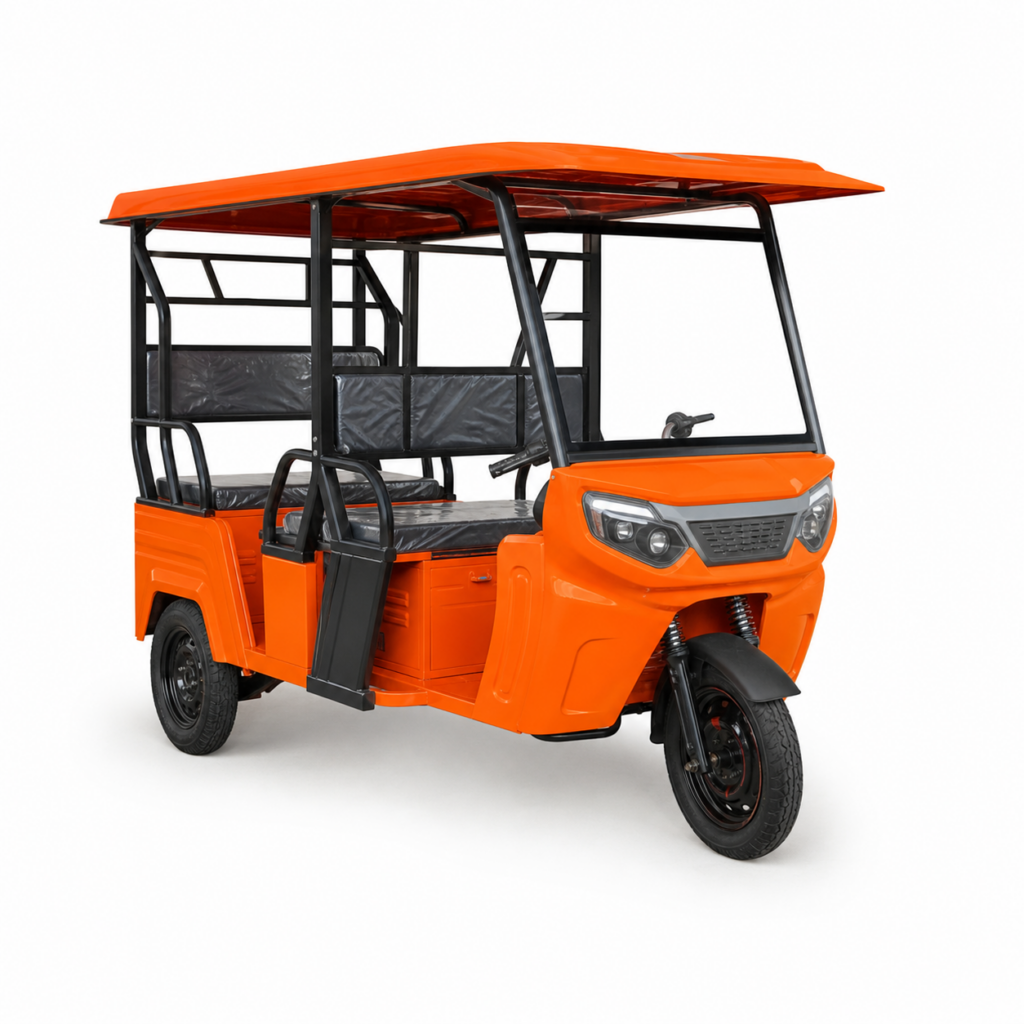

Product Overview An open-canopy double-row passenger tuk tuk with a 2000W PMSM motor, hydraulic drum brakes, and 600 kg-class payload capability. Key Features Open-canopy double-row passenger layout Mechanical gear shifting Hydraulic drum braking system Integral rear axle Lead-acid or lithium battery options Technical Specifications Model Double-Row Deluxe Open-Canopy 6+1 Rated Voltage 48–60V Motor Power 2000W Maximum Speed ≤45 km/h Payload Capacity ≥600 kg Dimensions (L × W × H) 2900 × 1100 × 1850 mm Curb Weight 320 kg (without battery) Passenger Capacity 6 persons Charging Time 5–8 hours Gradeability 15–20° Battery Type Lead-acid / lithium Motor Type PMSM Gear System Mechanical gear shifting Controller 30T Rear Axle Integral rear axle Brakes Hydraulic drum brake Wheelbase 2100 mm Range Depends on battery configuration Product Details

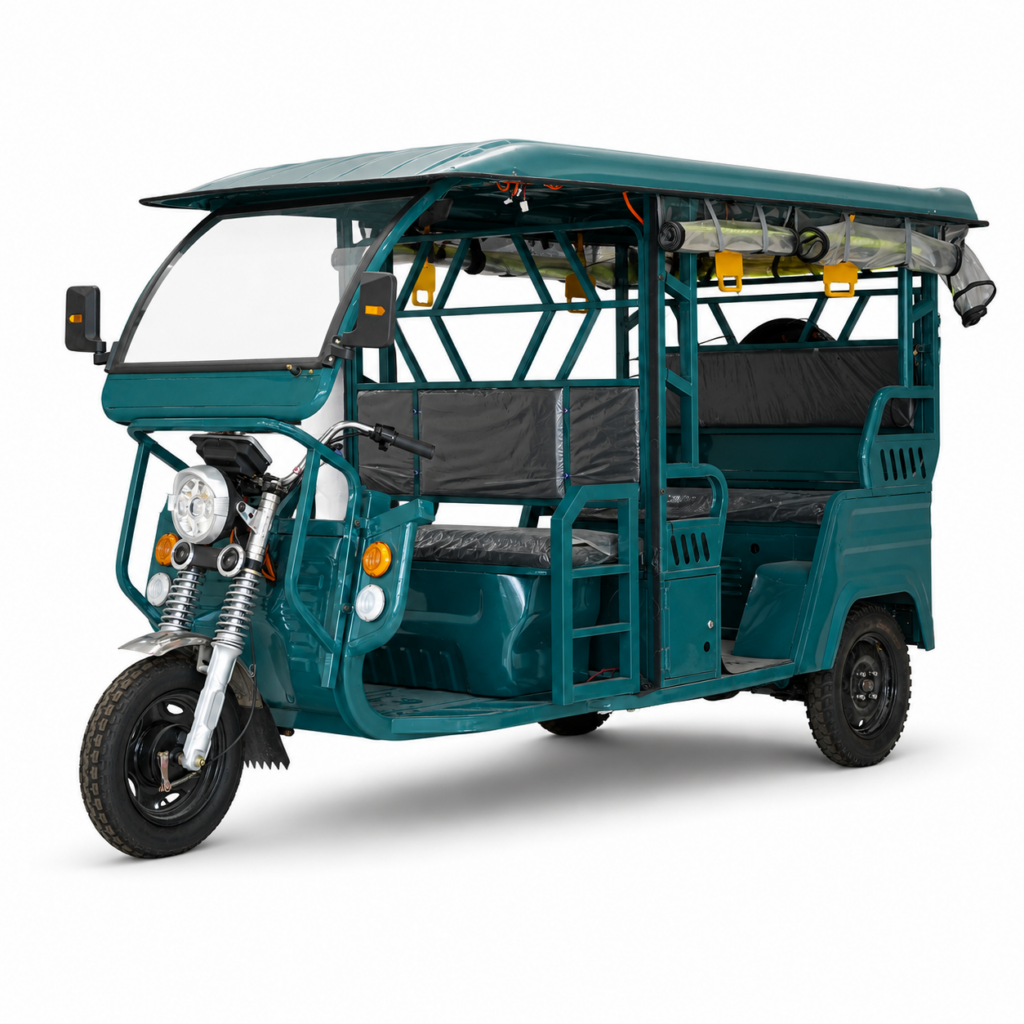

Product Overview A wider 1.3 m L3 deluxe passenger tuk tuk with a 2000W PMSM motor, six-person capacity, and mechanical gear shifting for versatile shuttle service. Key Features Six-person passenger capacity 1.3 m wide body Mechanical gear shifting Mechanical or optional oil drum brakes Lead-acid or lithium battery options Technical Specifications Model L3 1.3M DELUXE Rated Voltage 48–60V Motor Power 2000W Maximum Speed 40 km/h Payload Capacity ≥400 kg Dimensions (L × W × H) 3050 × 1300 × 1800 mm Curb Weight 300 kg (without battery) Passenger Capacity 6 persons Charging Time 5–8 hours Gradeability 10–15° Battery Type Lead-acid / lithium (optional) Motor Type PMSM Gearshift Method Mechanical gear shifting Controller 36T Tire Size Front / rear 4.00-12 Rear Axle Integral rear axle Brakes Mechanical drum brakes / oil drum brakes (optional) Wheelbase 2300 mm Range Depends on battery configuration Product Details

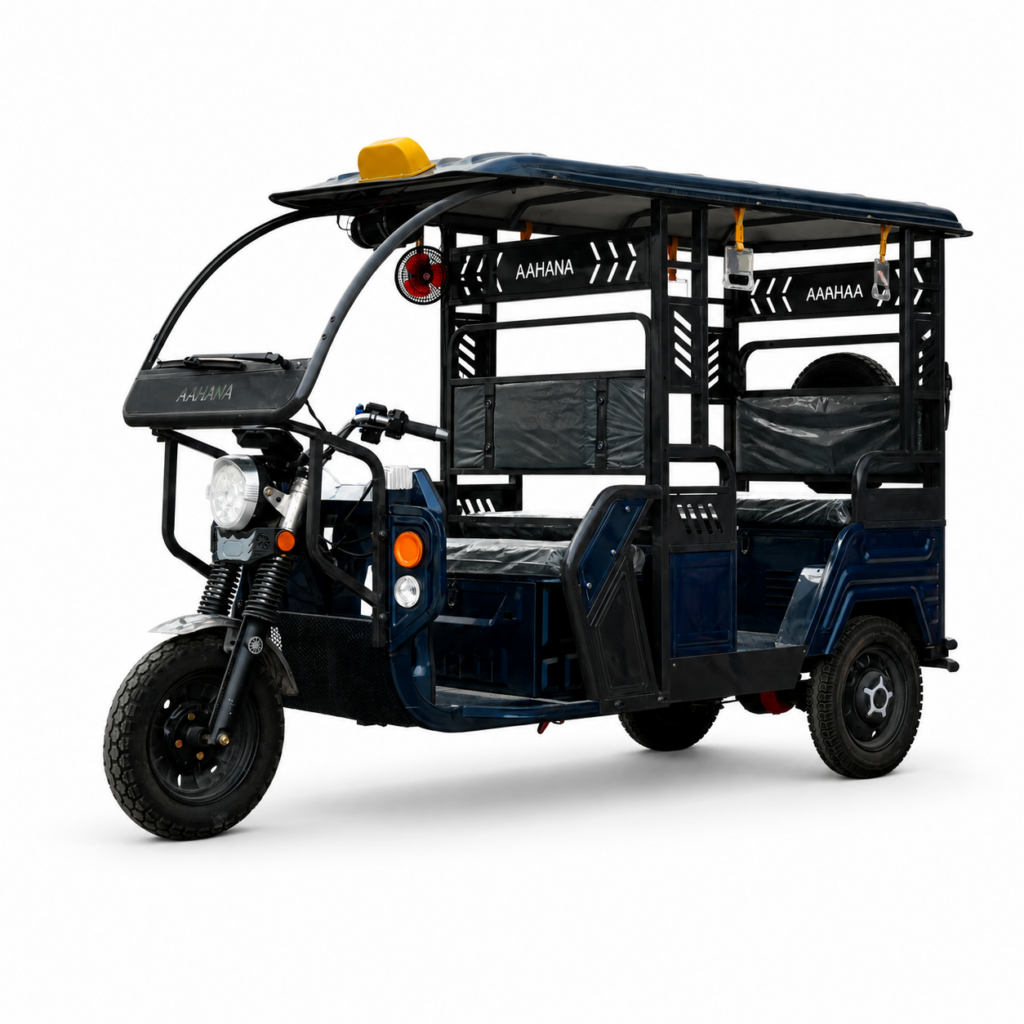

Product Overview A lightweight six-passenger electric tuk tuk with a 1200W PMSM motor, open passenger cabin, and flexible lead-acid or lithium battery options. Key Features Six-person passenger capacity Open passenger cabin Electric gear shifting Mechanical drum brakes Lead-acid or lithium battery options Technical Specifications Model L3 DELUXE Rated Voltage 48–60V Motor Power 1200W Maximum Speed 38 km/h Payload Capacity ≥400 kg Dimensions (L × W × H) 2950 × 1000 × 1800 mm Curb Weight 240 kg (without battery) Passenger Capacity 6 persons Charging Time 5–8 hours Gradeability 15–20° Battery Type Lead-acid / lithium (optional) Motor Type PMSM Gearshift Method Electric gear shifting Controller 24T Tire Size Front / rear 3.75-12 Rear Axle Integral rear axle Brakes Mechanical drum brakes Wheelbase 2100 mm 40HQ Loading 55 units (CKD) Range Depends on battery configuration Product Details

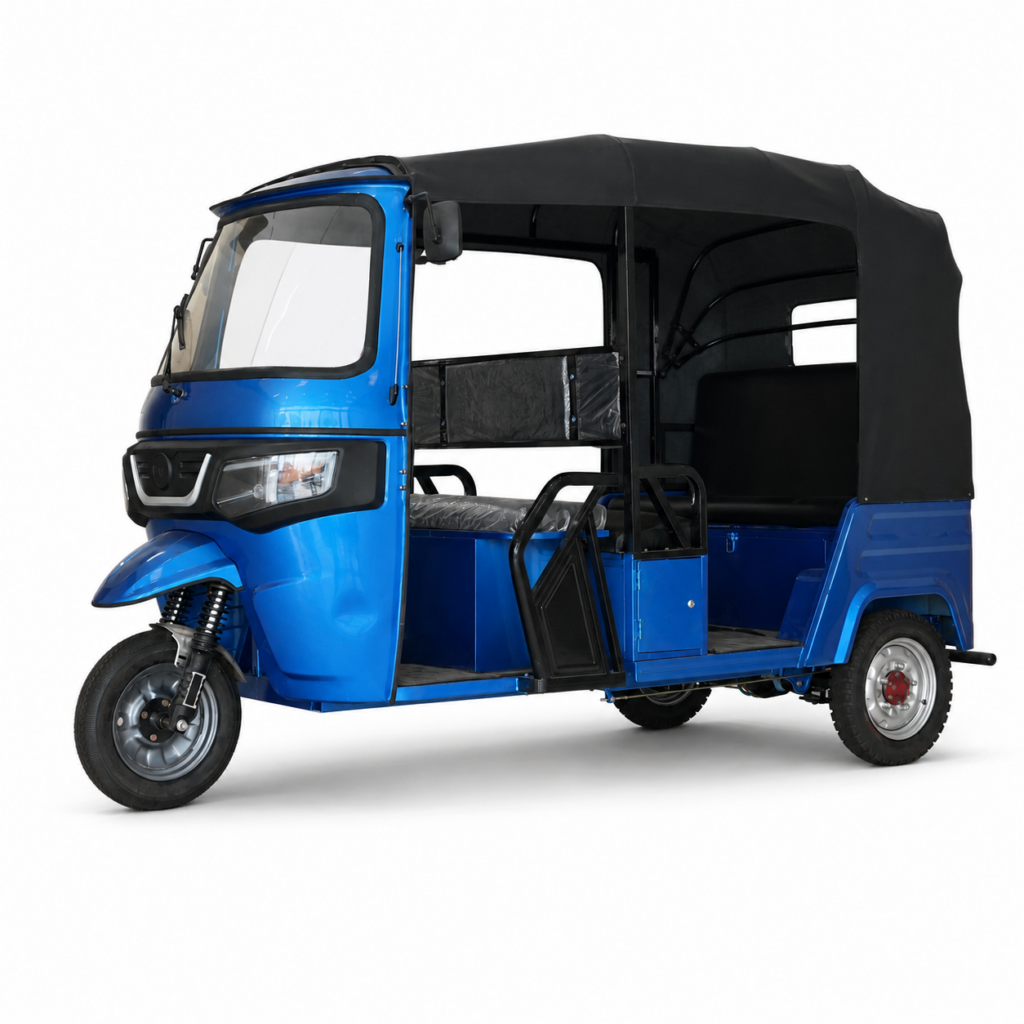

Product Overview A practical forward-facing double-row electric tuk tuk using a 2000W PMSM drive and hydraulic drum brakes for stable daily passenger service. Key Features Forward-facing double-row seating Hydraulic drum braking system Integrated shock absorption Electronic gear shifting 36T controller Technical Specifications Model Forward-Facing Double-Row Standard 6+1 Rated Voltage 48–60V Motor Power 2000W Maximum Speed ≤45 km/h Payload Capacity ≥600 kg Dimensions (L × W × H) 3400 × 1300 × 1850 mm Curb Weight 390 kg (without battery) Passenger Capacity 6 persons Charging Time 5–8 hours Gradeability 15–20° Battery Type Lithium-ion Motor Type PMSM Gear System Electronic shifting Controller 36T Front Suspension 43 mm outer tube with external spring and integrated shock absorption Rear Axle Integrated rear axle with truss arm Brakes Hydraulic drum brake Wheelbase 2600 mm Range Depends on battery configuration Product Details
